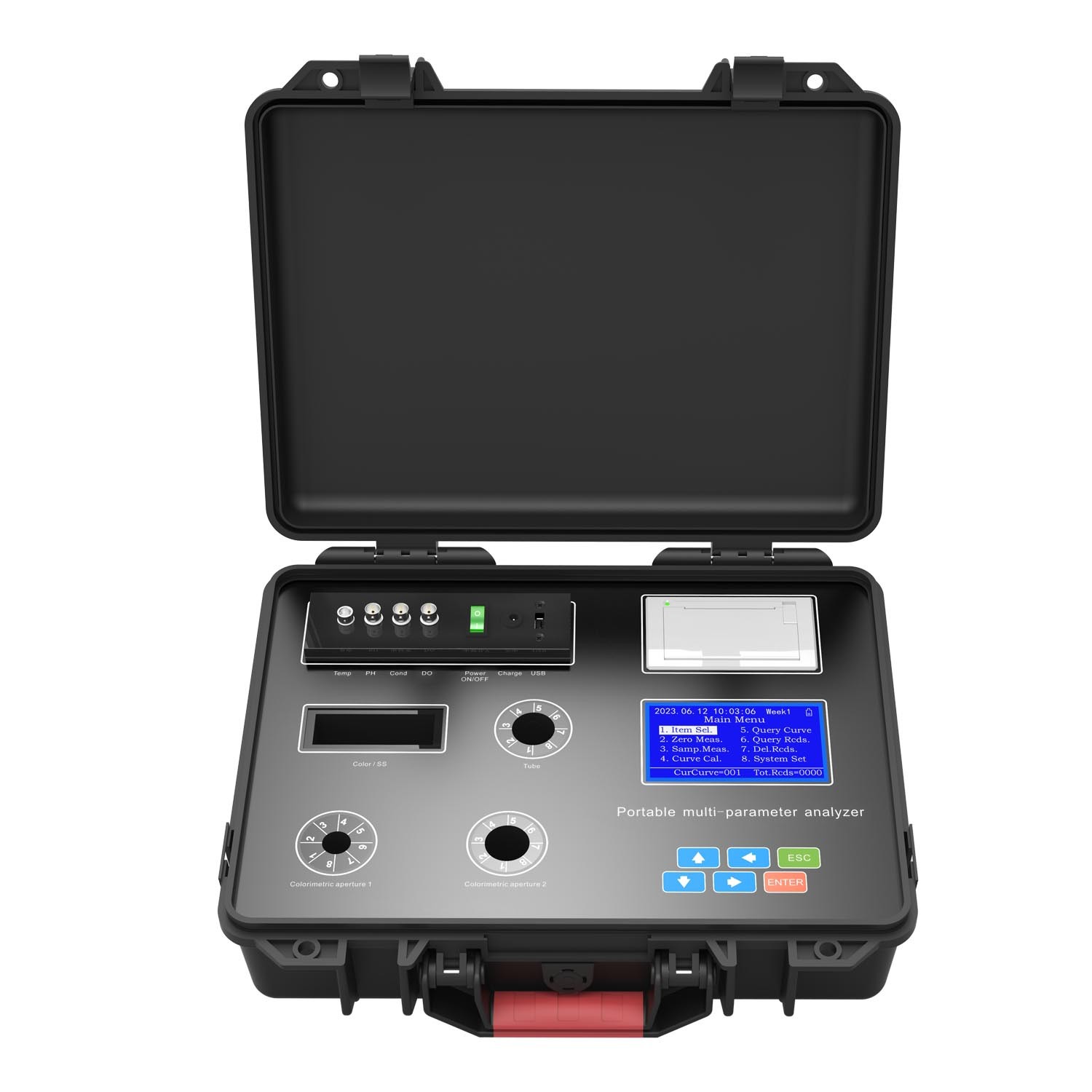

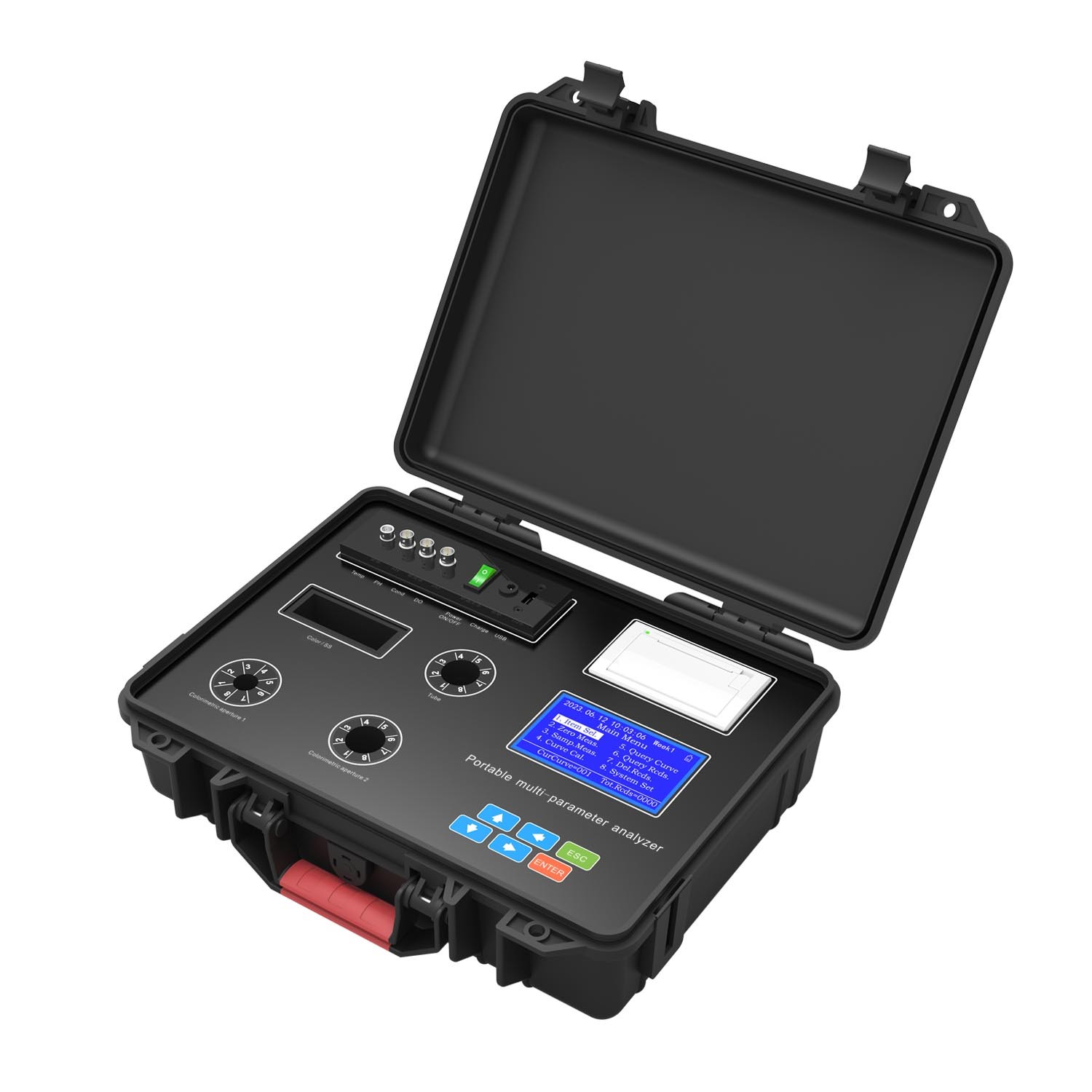

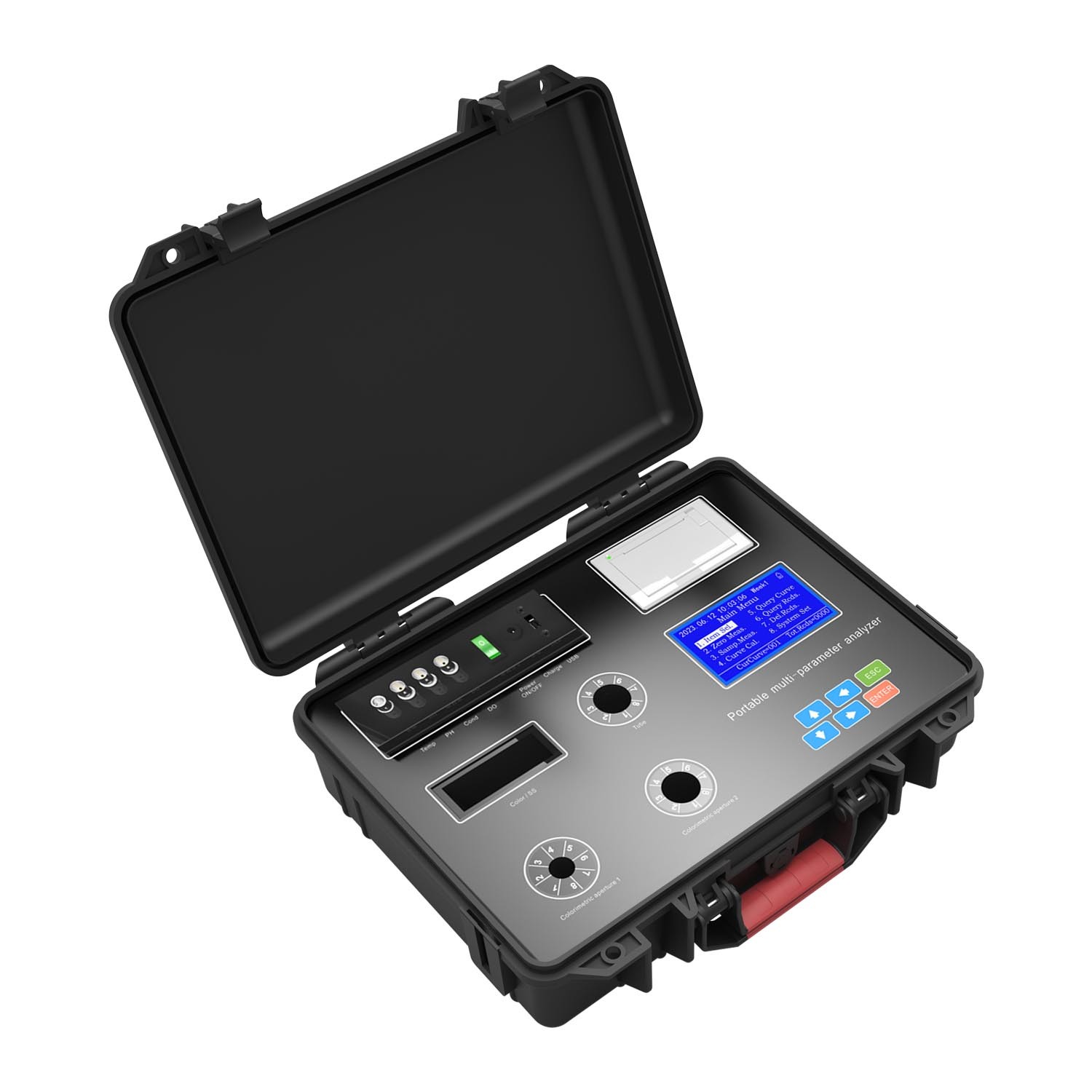

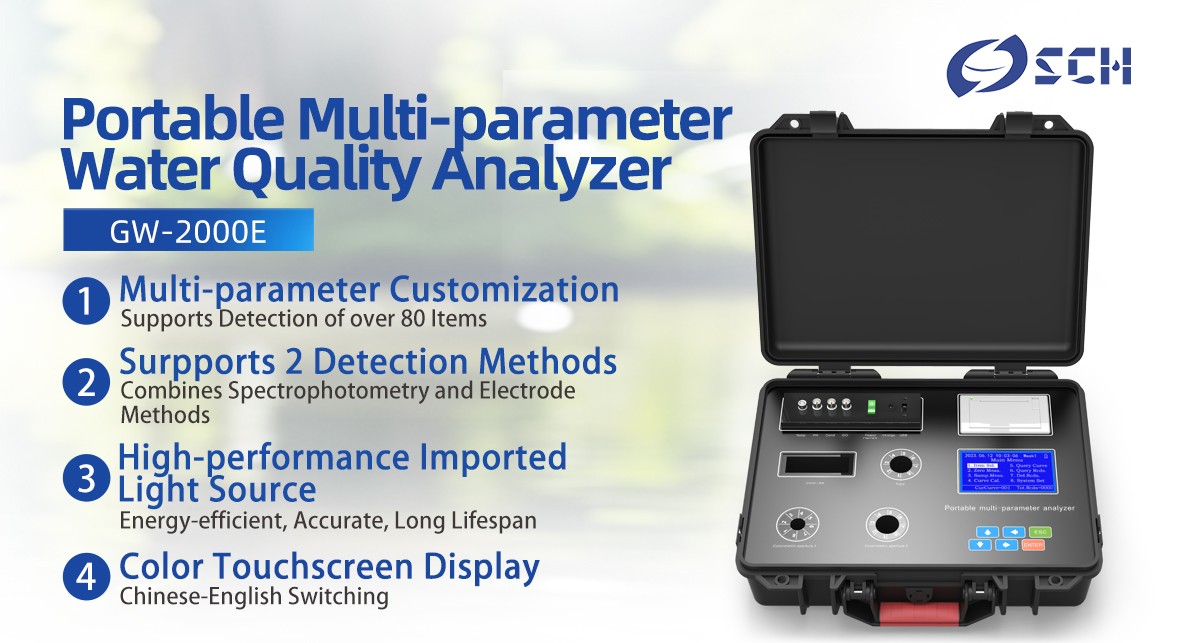

Multi-parameter Water Quality Analyzer

GW-2000E

[Product Overview]

The Shenchanghong GW-2000E portable multi-parameter water quality analyzer includes optical and electrode methods (pH, conductivity, and dissolved oxygen) that users can freely combine according to their needs.

[Application Area]

Can be used for water quality measurements of surface water, underground water, source water, drinking water, sewage discharge outlet, ocean and other different water bodies.
Product Details
Custom Matching

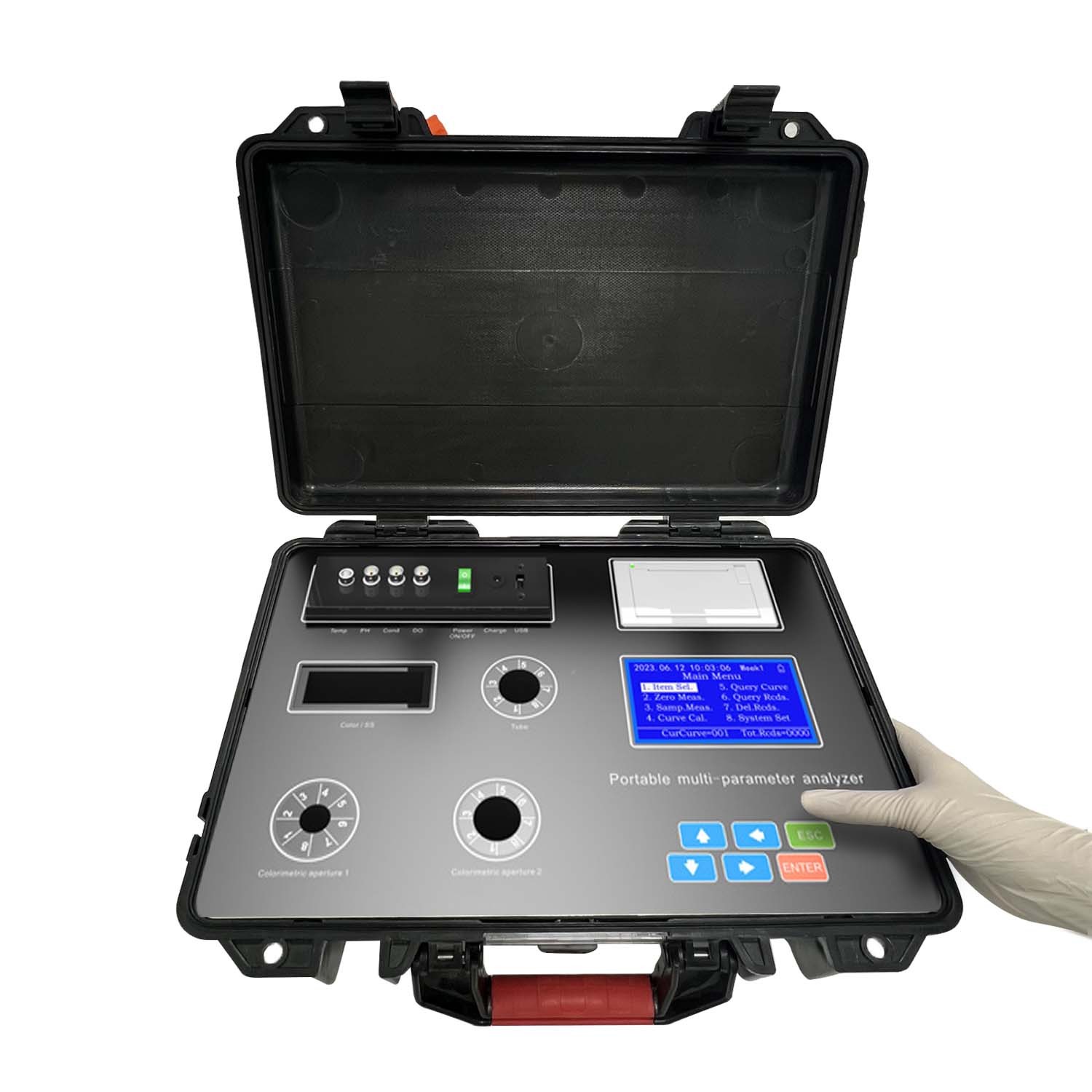

GW-2000 Multi-parameter Water Quality Analyzer

1. Collecting electrode, cuvette and cuvette together.

2. Automatic wavelength selection.

3. Data will not lose even when power is cut off.

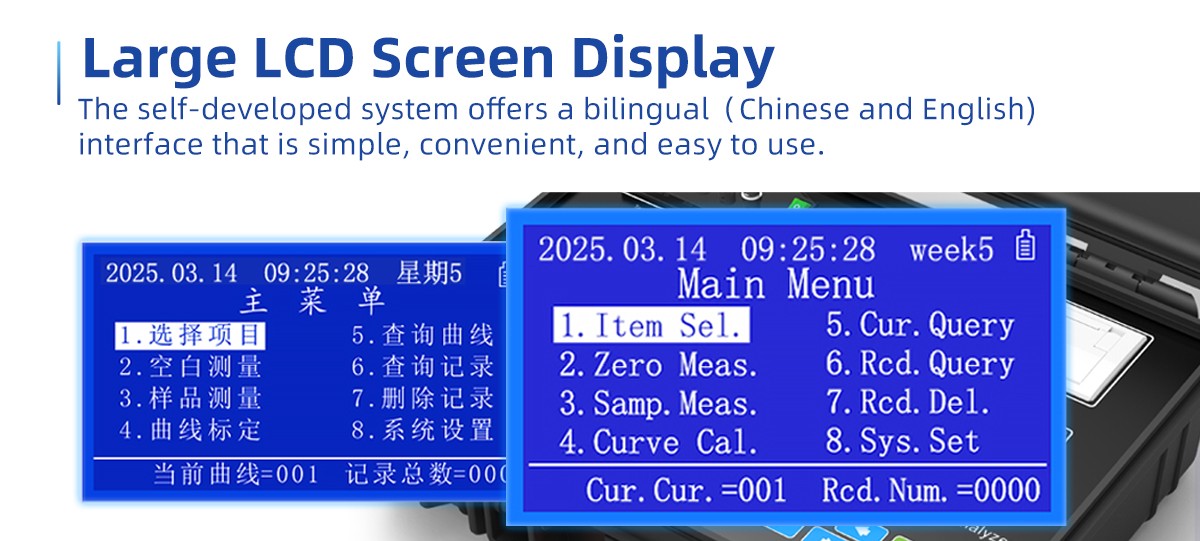

4. 5-inch large-screen color touch screen, both Chinese and English display

5. With one-click recovery function.



Working Principle

PH and conductivity are measured by electrochemical sensors; turbidity is measured by light scattering or scattering + transmission; others are measured by optical colorimetry.



Technical Parameter

Measurement parameters

COD, ammonia nitrogen, total phosphorus, total nitrogen, copper, iron, nickel, hexavalent chromium, phosphate, nitrite, pH, residual chlorine and more than 80 parameters, users can customize the parameters according to needs

Wavelength

340nm, 420nm, 440nm, 470nm, 520nm, 540nm, 560nm, 610nm, 630nm, 660nm, 680nm, 700nm (Any wavelength within the above range can be customized)

Indication error

≤±5 %

Repeatability

2%

Optical stability

Absorbance drift ≤0 .002A/20min

Dimension

425mm×336mm×126mm

Power

8.5W

Weight

4.5kg

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight.


Product Features

1. Automatically select the wavelength when measuring the sample, without the need for calibration;

2. Automatically select the wavelength when measuring the sample, without the need for calibration; Large LCD screen with Chinese LCD display, easy and intuitive operation;

3. The multi-parameter water quality detector is convenient to carry for on-site testing;

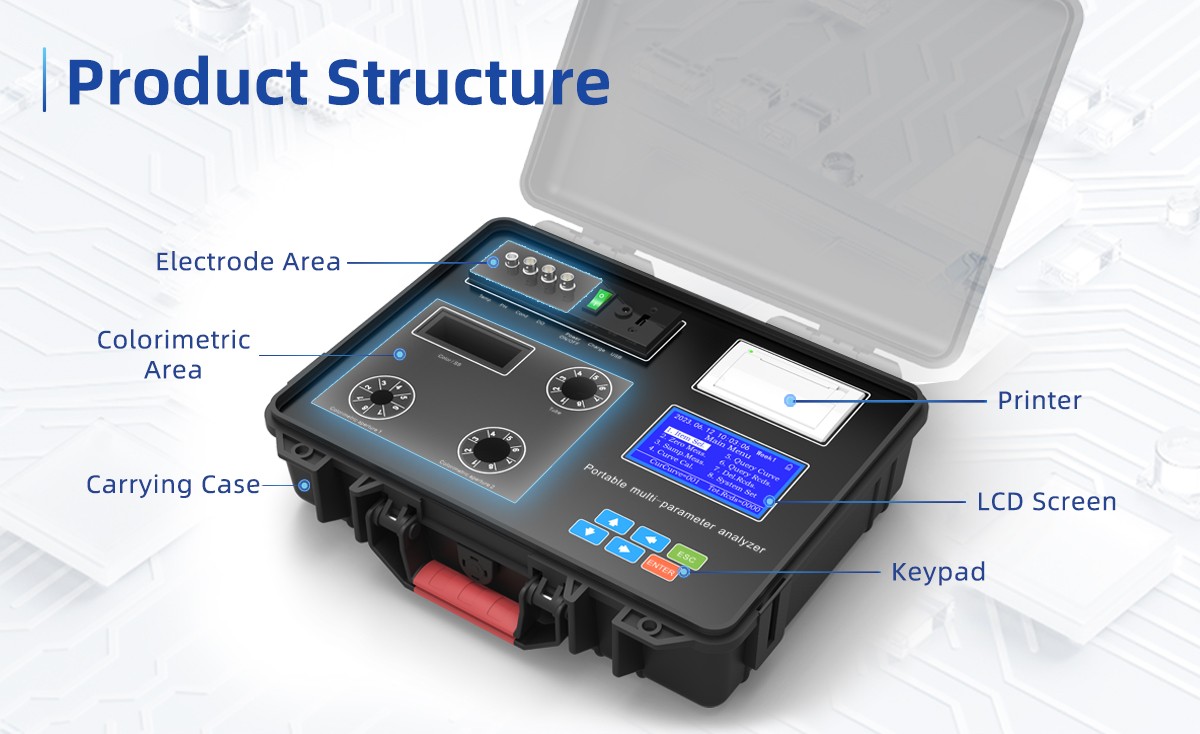

4. The optical colorimetric method and electrochemical detection are implemented on one instrument, and the detection interface is displayed on the same screen;

5. With data storage function, it can store 300 curves and 1000 data with time and parameter labels;

6. In addition to the factory curve, users can add and calibrate curves themselves, and store them in the instrument;

7. Equipped with one click recovery function, it can achieve one click recovery in case of accidental loss of factory curve and user curve data records;

8. Equipped with a USB interface, it can transfer data records to a computer;

9. Equipped with a USB interface, it can transfer data records to a computer; Cold light source, narrowband interference optical system, good optical stability;

10. Data power outage protection function;

11. Rechargeable lithium battery power supply;

12. With record printing function;

13. Expandable and customized testing projects.


Measuring Item


 No.

Measurement item

Measuring range

Unit

Indication error

1

COD(Chromium method low range)

5-200 or 5-150

mg/L

5%

2

COD(Chromium method high range)

200-2000 or 150-2000

mg/L

5%

3

Ammonia nitrogen(Low range)

0.00-5.00

mg/L

3%(F.S)

4

Ammonia nitrogen(High range)

5.00-25.00

mg/L

3%(F.S)

5

Total phosphorus(Low range)

0.00-2.00

mg/L

5%(F.S)

6

Total phosphorus(High range)

2.00-10.00

mg/L

5%(F.S)

7

Total nitrogen(Low range)

0.00-10.00

mg/L

5%(F.S)

8

Total nitrogen(High range)

10.0-100.0

mg/L

5%(F.S)

9

CODMn (Permanganate index)

0.00-10.00

mg/L

0.2or 5%

10

Residual chlorine(Low range)

0.00-2.00

mg/L

0.1or 5%

11

Residual chlorine(High range)

2.0-10.0

mg/L

5%

12

Total chlorine(Low range)

0.00-2.00

mg/L

0.1or 5%

13

Total chlorine(High range)

2.0-10.0

mg/L

5%

14

Chlorine dioxide(Low range)

0.00-2.00

mg/L

0.2or 5%

15

Chlorine dioxide(High range)

2.0-20.0

mg/L

5%

16

Sulfate

0-200

mg/L

5%(F.S)

17

Nitrate(Nitrogen)

0.00-10.00

mg/L

0.1or 5%

18

Phosphate(Low range)

0.00-10.0

mg/L

0.2or 5%

19

Phosphate(High range)

10.0-50.0

mg/L

5%

20

Nitrite nitrogen(Low range)

0.00-1.00

mg/L

0.05or 5%

21

Nitrite nitrogen(High range)

1.0-5.0

mg/L

5%

22

Sulfide

0.00-1.00

mg/L

5%(F.S)

23

Fluoride

0.00-10.0

mg/L

5%(F.S)

24

Cyanide

0.00-0.50

mg/L

5%(F.S)

25

Bromide

0.00-5.00

mg/L

5%(F.S)

26

Formaldehyde

0.00-2.50

mg/L

5%(F.S)

27

Volatile phenol(Low range)

0.00-5.00

mg/L

5%(F.S)

28

Volatile phenol(High range)

5.0-10.0

mg/L

5%(F.S)

29

Hydrazine

0.00-0.50

mg/L

5%(F.S)

30

Aniline compound(Low range)

0.00-1.00

mg/L

5%(F.S)

31

Aniline compound(High range)

1.0-5.0

mg/L

5%(F.S)

32

Silica

0.00-5.00

mg/L

5%(F.S)

33

Silicate

0.00-6.00

mg/L

5%(F.S)

34

Total alkalinity(Low range)

0-100

mg/L

5%(F.S)

35

Total alkalinity(High range)

100-1000

mg/L

5%(F.S)

36

Total hardness

0.00-500

mg/L

5%(F.S)

37

Chloride ion(Chloride)

0.00-100.0

mg/L

5%(F.S)

38

Ozone

0.00-2.50

mg/L

5%(F.S)

39

Anionic surfactant

0.00-1.00

mg/L

5%(F.S)

40

Ammonium ion(Low range)

0.00-2.50

mg/L

5%(F.S)

41

Ammonium ion(High range)

2.5-25.0

mg/L

5%(F.S)

42

Available chlorine

0.0-200

mg/L

5%(F.S)

43

Chlorite

0.00-20.0

mg/L

5%(F.S)

44

Cyanuric acid

0-200

mg/L

5%(F.S)

45

Urea

0.00-4.00

mg/L

5%(F.S)

46

Copper(Low range)

0.00-1.00

mg/L

5%(F.S)

47

Copper(High range)

1.0-10.0

mg/L

5%(F.S)

48

Zinc

0.00-5.00

mg/L

5%(F.S)

49

Trace Nickel (Low range)

0.00-0.500

mg/L

5%(F.S)

50

Trace Nickel (High range)

0.50-1.00

mg/L

5%(F.S)

51

Nickel

0.00-10.00

mg/L

5%(F.S)

52

Iron(Low range)

0.00-5.00

mg/L

5%(F.S)

53

Iron(High range)

5.0-10.0

mg/L

5%(F.S)

54

Ferrous(Low range)

0.00-5.00

mg/L

5%(F.S)

55

Ferrous(High range)

5.0-10.0

mg/L

5%(F.S)

56

Hexavalent chromium

0.00-1.00

mg/L

5%(F.S)

57

Cadmium

0.05-0.50

mg/L

5%(F.S)

58

Manganese(Low range)

0.01-0.10

mg/L

5%(F.S)

59

Manganese(High range)

0.10-1.00

mg/L

5%(F.S)

60

Manganese

0.00-5.00

mg/L

5%(F.S)

61

Total chromium

0.00-1.00

mg/L

5%(F.S)

62

Aluminum(Low range)

0.00-0.50

mg/L

5%(F.S)

63

Aluminum(High range)

0.5-5.0

mg/L

5%(F.S)

64

Silver

0.00-1.00

mg/L

5%(F.S)

65

Molybdenum

0.00-1.00

mg/L

5%(F.S)

66

Arsenic(Low range)

0.00-0.500

mg/L

5%(F.S)

67

Arsenic(High range)

0.50-5.00

mg/L

5%(F.S)

68

Beryllium

0.00-0.10

mg/L

5%(F.S)

69

Boron

0.00-2.00

mg/L

5%(F.S)

70

Mercury

0.00-0.500

mg/L

5%(F.S)

71

Lead

0.00-0.50

mg/L

5%(F.S)

72

Antimony

0.00-10.00

mg/L

5%(F.S)

73

Barium

0-100

mg/L

5%(F.S)

74

Color(Low range)

0-50.0

PCU

3%(F.S)

75

Color(High range)

50-500

PCU

3%(F.S)

76

Turbidity

0-400

NTU

≤2%(F.S)

77

Suspended solids

0-1000

mg/L

≤2%(F.S)

78

pH(Colorimetric method)

5.00-8.00

pH

0.1±0.1pH

79

pH(Electrode method)

0.00-14.00

pH

±0.1pH

80

Dissolved oxygen(Colorimetric method)

0.0-10.0

mg/L

0.1±5%

81

Dissolved oxygen(Electrode method)

0-20.0

mg/L

±0.2

82

Conductivity(Electrode method)

0.00µs/cm-199.9ms/cm

ms/cm

±1.0% (F.S)
