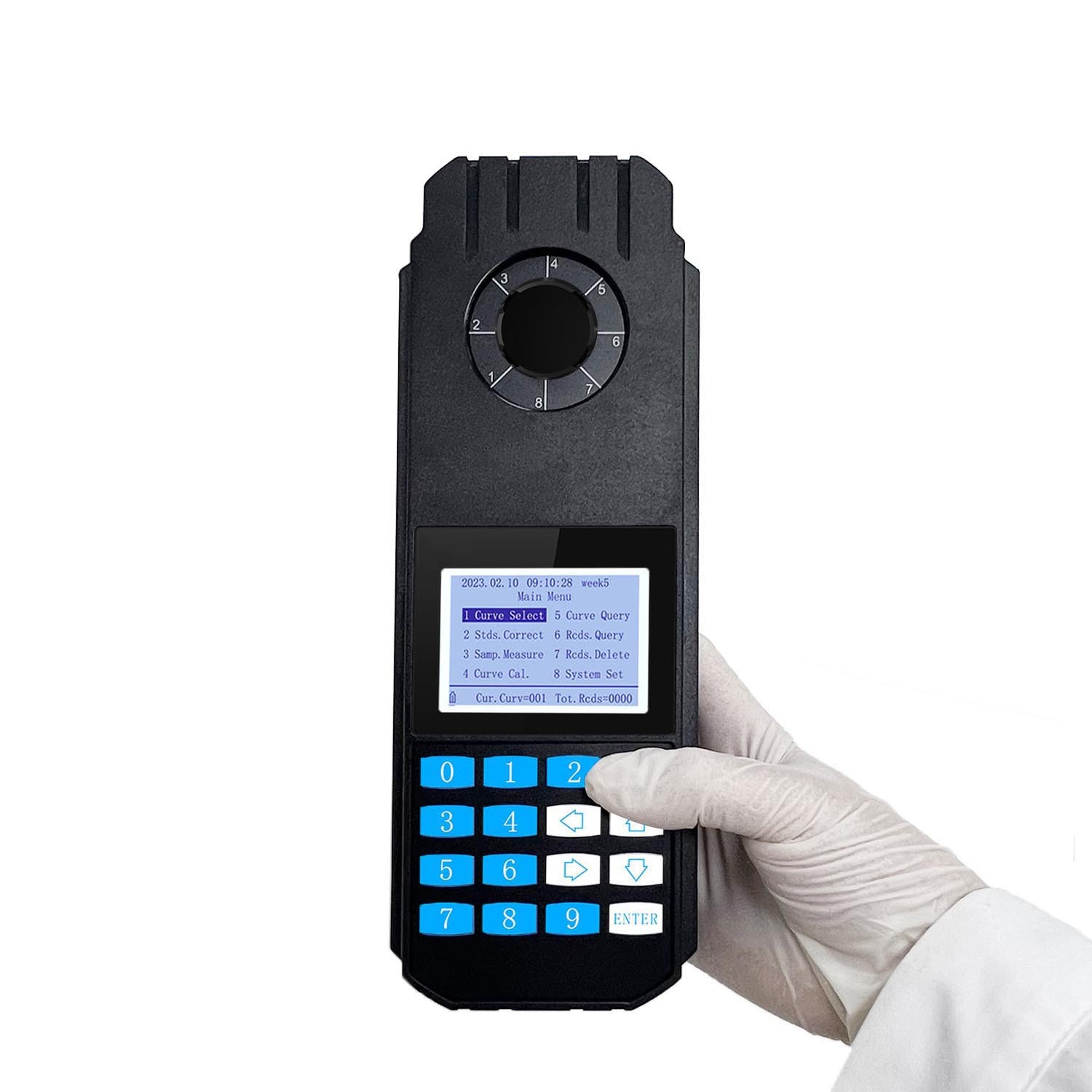

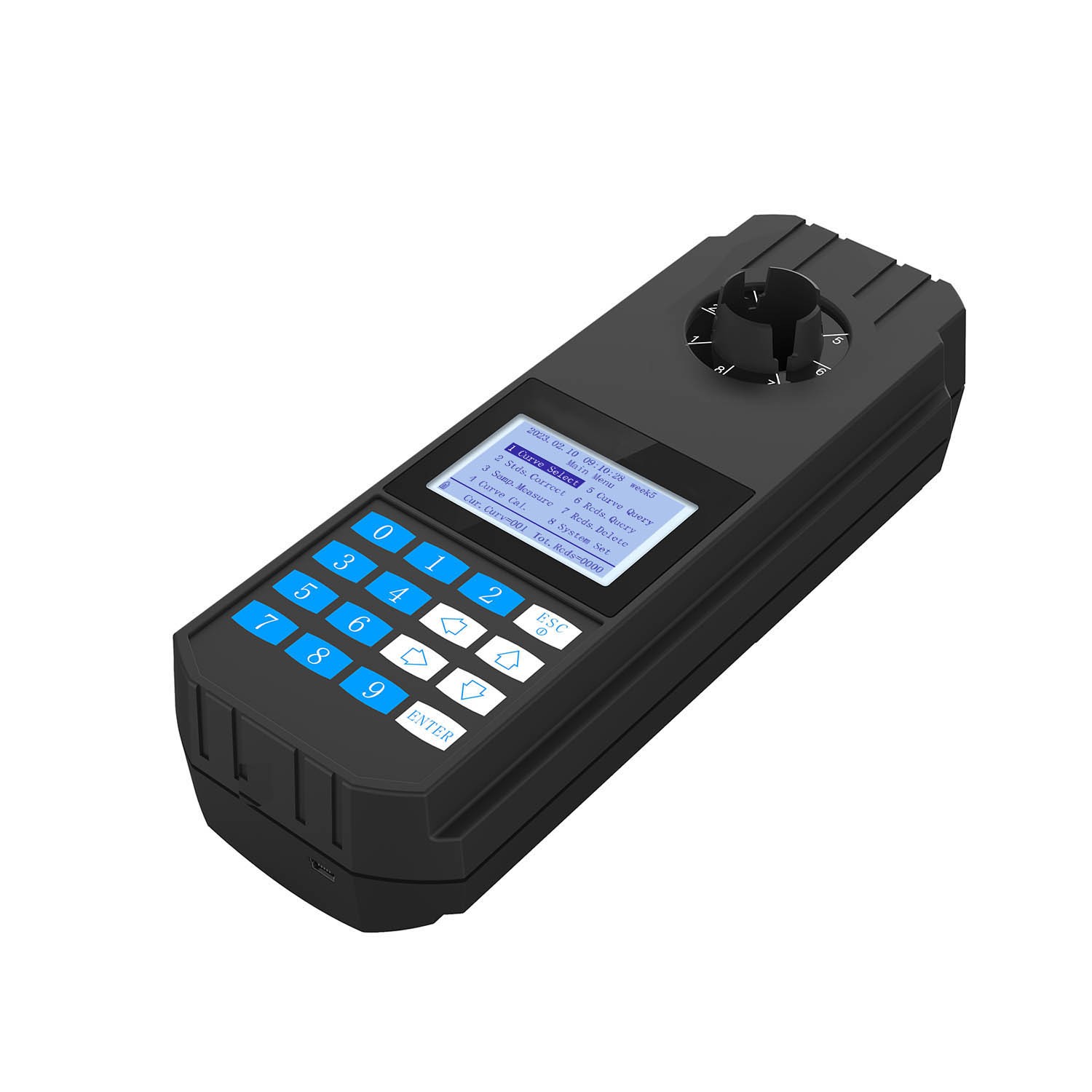

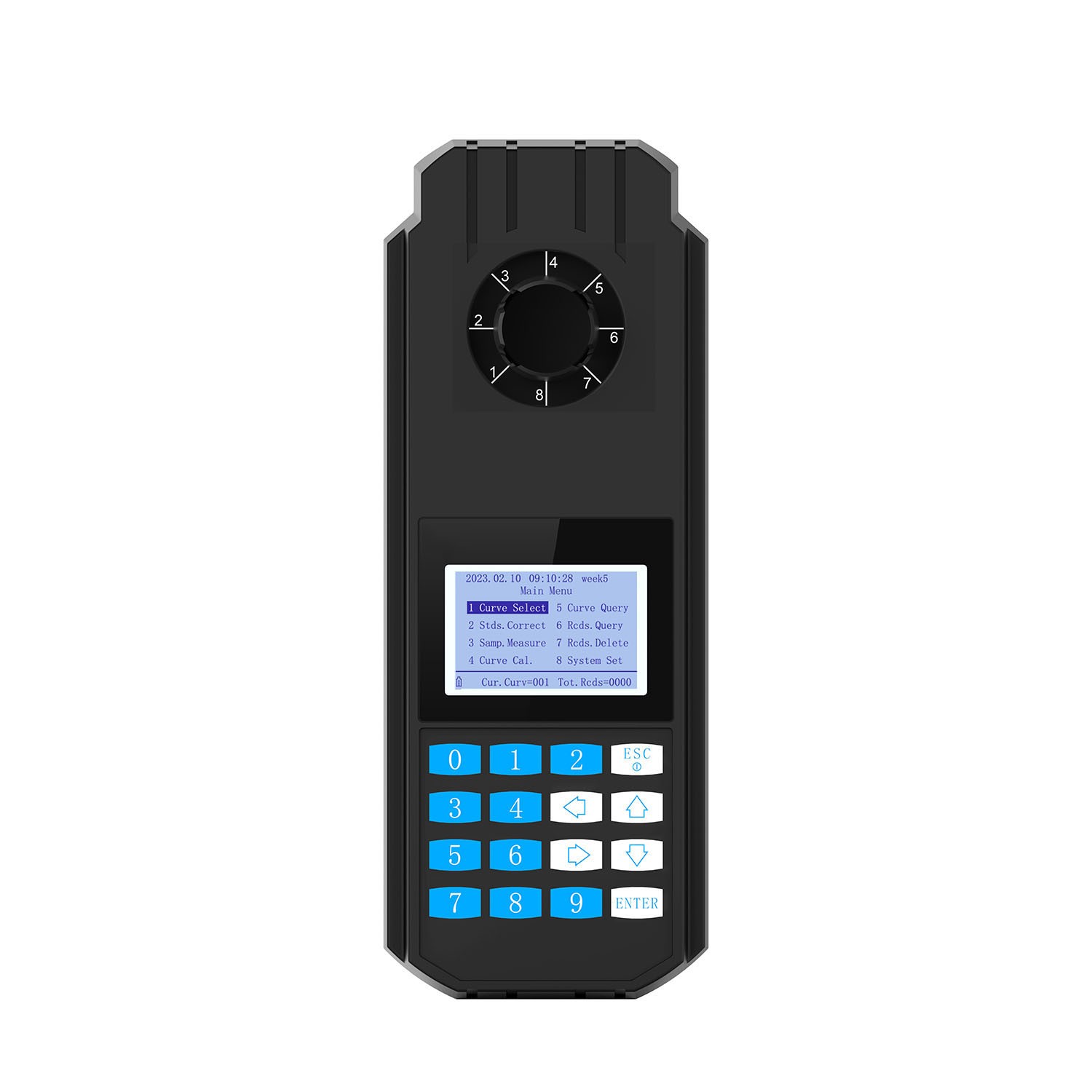

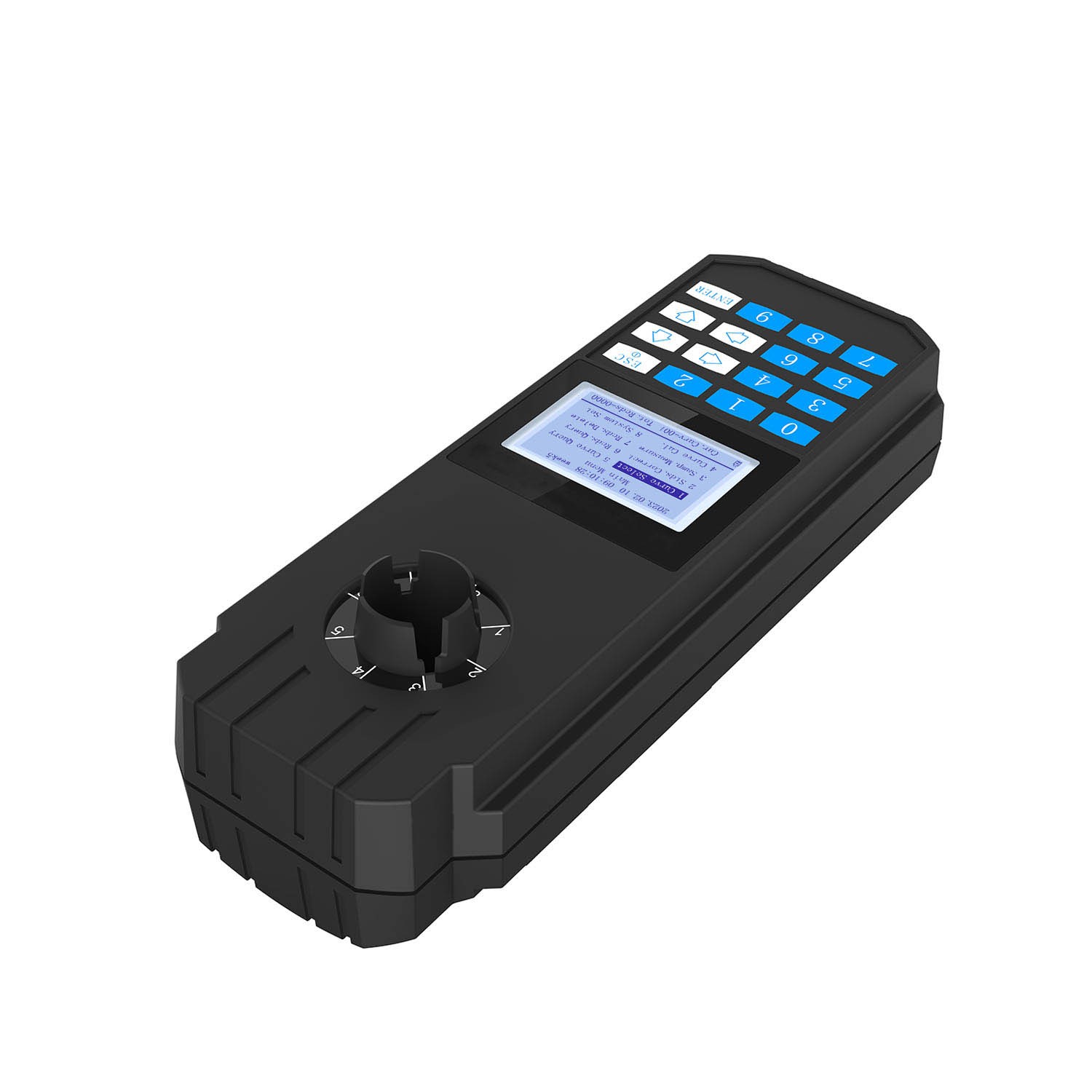

PMULP-8C-Portable Multi-parameter Water Quality Analyzer

PMULP-8C

[Product Overview]

The portable multi-parameter water quality analyzer is capable of measuring a variety of water quality parameters simultaneously. It offers users a comprehensive, efficient, and precise solution for water quality analysis, allowing researchers to obtain data on different parameters from a single instrument for integrated analysis and study. The product can measure a wide range of parameters, including but not limited to chemical parameters, physical parameters and biological parameters. With its comprehensive detection capabilities, efficient operation, and broad application range, the multi-parameter water quality analyzer has become an ideal choice in the modern field of water quality monitoring.

[Application Area]

Product Details
Custom Matching

Technical Specifications

Measurement parameters

More than 60 parameters, including CODMn, copper, iron, nickel, hexavalent chromium, phosphate, nitrite and other parameters (see table below)

Wavelength

420nm, 440nm, 470nm, 510nm, 520nm, 540nm, 560nm, 610nm, 630nm, 660nm, 680nm and 700nm (Any wavelength within the above range can be customized)

Indication error

≤±5 %

Repeatability

≤±3%

Optical stability

Absorbance drift ≤0 .002A/20min

Curve and Storage

250 factory calibration curves, 749 user-defined curves; Can store 9999 records.

Display

2.4-inch 240*160 LCD screen

Dimension

Instrument:230mm*88mm*52mm;  Carrying case:335mm*270mm*84mm

Power consumption

10W

Weight

Instrument: 0.4kg;    Carrying case and accessories:0.9kg

Charging/Data Interface

Mini USB

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: Rechargeable lithium battery or AC (220±22)V (50±0.5) Hz (4) No significant vibration and electromagnetic interference, avoid direct sunlight.

Measurement Parameters and Accuracy

 No.

Measurement item

Measuring range

Unit

Indication error

1

Ammonia nitrogen(Low range)

0.00-5.00

mg/L

3%(F.S)

2

Ammonia nitrogen(High range)

5.00-25.00

mg/L

3%(F.S)

3

CODMn(Permanganate index)

0.00-10.00

mg/L

0.2or 5%

4

Residual chlorine(Low range)

0.00-2.00

mg/L

0.1or 5%

5

Residual chlorine(High range)

2.0-10.0

mg/L

5%

6

Total chlorine(Low range)

0.00-2.00

mg/L

0.1or 5%

7

Total chlorine(High range)

2.0-10.0

mg/L

5%

8

Chlorine dioxide(Low range)

0.00-2.00

mg/L

0.2or 5%

9

Chlorine dioxide(High range)

2.0-20.0

mg/L

5%

10

Sulfate

0.0-200

mg/L

5%(F.S)

11

Nitrate(Nitrogen)

0.00-10.00

mg/L

0.1or 5%

12

Phosphate(Low range)

0.00-10.0

mg/L

0.2or 5%

13

Phosphate(High range)

10.0-50.0

mg/L

5%

14

Nitrite nitrogen(Low range)

0.00-1.00

mg/L

0.05or 5%

15

Nitrite nitrogen(High range)

1.0-5.0

mg/L

5%

16

Sulfide

0.00-1.00

mg/L

5%(F.S)

17

Fluoride

0.00-10.0

mg/L

5%(F.S)

18

Cyanide

0.00-0.50

mg/L

5%(F.S)

19

Bromide

0.00-5.00

mg/L

5%(F.S)

20

Formaldehyde

0.00-2.50

mg/L

5%(F.S)

21

Volatile phenol(Low range)

0.00-5.00

mg/L

5%(F.S)

22

Volatile phenol(High range)

5.0-10.0

mg/L

5%(F.S)

23

Hydrazine

0.00-0.50

mg/L

5%(F.S)

24

Aniline compound(Low range)

0.00-1.00

mg/L

5%(F.S)

25

Aniline compound(High range)

1.0-5.0

mg/L

5%(F.S)

26

Silica

0.00-5.00

mg/L

5%(F.S)

27

Total alkalinity(Low range)

0-100

mg/L

5%(F.S)

28

Total alkalinity(High range)

100-1000

mg/L

5%(F.S)

29

Total hardness(Low range)

0.00-500

mg/L

5%(F.S)

30

Chloride ion(Chloride)

0.00-100.0

mg/L

5%(F.S)

31

Copper(Low range)

0.00-1.00

mg/L

5%(F.S)

32

Copper(High range)

1.0-10.0

mg/L

5%(F.S)

33

Zinc

0.00-5.00

mg/L

5%(F.S)

34

Nickel(Low range)

0.000-0.500

mg/L

5%(F.S)

35

Nickel(High range)

0.50-1.00

mg/L

5%(F.S)

36

Nickel

0.00-10.00

mg/L

5%(F.S)

37

Iron(Low range)

0.00-5.00

mg/L

5%(F.S)

38

Iron(High range)

5.0-10.0

mg/L

5%(F.S)

39

Hexavalent chromium

0.00-1.00

mg/L

5%(F.S)

40

Cadmium

0.05-0.50

mg/L

5%(F.S)

41

Manganese(Low range)

0.01-0.10

mg/L

5%(F.S)

42

Manganese(High range)

0.10-1.00

mg/L

5%(F.S)

43

Manganese

0.00-5.00

mg/L

5%(F.S)

44

Total chromium

0.00-1.00

mg/L

5%(F.S)

45

Aluminum(Low range)

0.00-0.50

mg/L

5%(F.S)

46

Aluminum(High range)

0.5-5.0

mg/L

5%(F.S)

47

Silver

0.00-1.00

mg/L

5%(F.S)

48

Molybdenum

0.00-1.00

mg/L

5%(F.S)

49

Barium

0-100

mg/L

5%(F.S)

50

Arsenic(Low range)

0.000-0.500

mg/L

5%(F.S)

51

Arsenic(High range)

0.50-5.00

mg/L

5%(F.S)

52

Beryllium

0.00-0.10

mg/L

5%(F.S)

53

Boron

0.00-2.00

mg/L

5%(F.S)

54

Mercury

0.000-0.500

mg/L

5%(F.S)

55

Lead

0.00-0.50

mg/L

5%(F.S)

56

PH (Colorimetric method)

5.00-8.00

pH

0.1±0.1pH

57

Dissolved oxygen (Colorimetric method)

0.0-10.0

mg/L

0.1±5%

58

Ozone

0.00-2.50

mg/L

5%(F.S)

59

Anionic surfactant

0.00-1.00

mg/L

5%(F.S)

60

Available chlorine

0.0-200

mg/L

5%(F.S)

61

Chlorite

0.00-20.0

mg/L

5%(F.S)

62

Antimony

0.00-10.00

mg/L

5%(F.S)

63

Ammonium ion(Low range)

0.00-2.50

mg/L

5%(F.S)

64

Ammonium ion(High range)

2.5-25.0

mg/L

5%(F.S)

65

Silicate

0.00-6.00

mg/L

5%(F.S)

66

Cyanuric acid

0-200

mg/L

5%(F.S)

67

Urea

0.00-4.00

mg/L

5%(F.S)



Functional Features

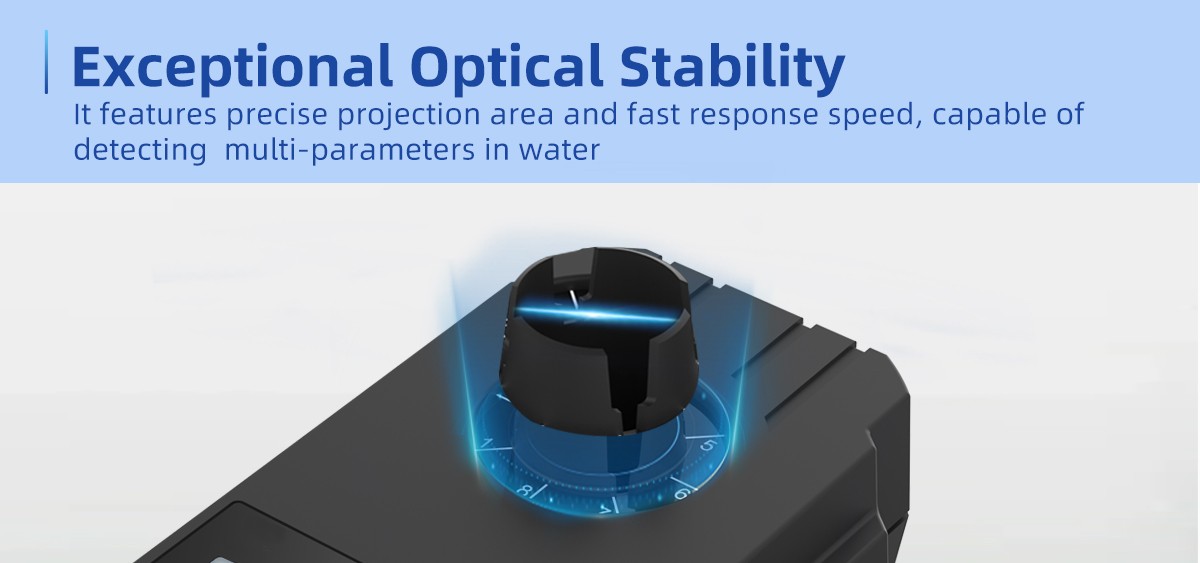

    Cold light source, narrow-band interference optical system, excellent optical stability.


    Automatic wavelength selection during sample measurement, no need for adjustment.


    The optical part of the instrument is strictly controlled to ensure high performance.


    Equipped with a USB port for connection to a computer for data logging or printing stored data.

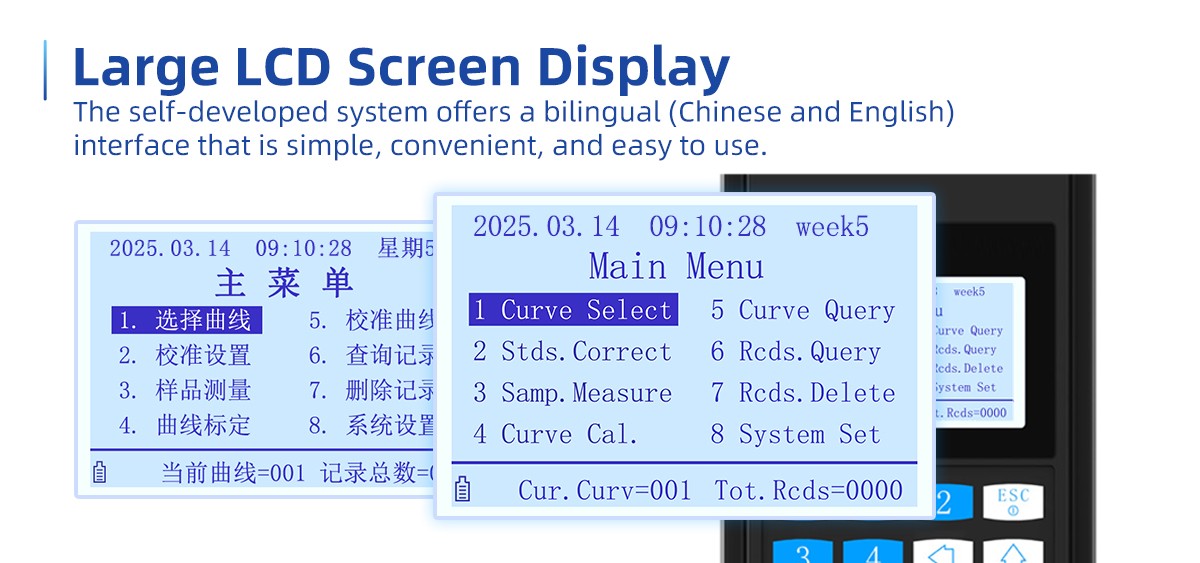

    Large LCD display for easy and intuitive operation.


    Can store 250 factory curves, add 749 user curves, and save up to 9999 records.

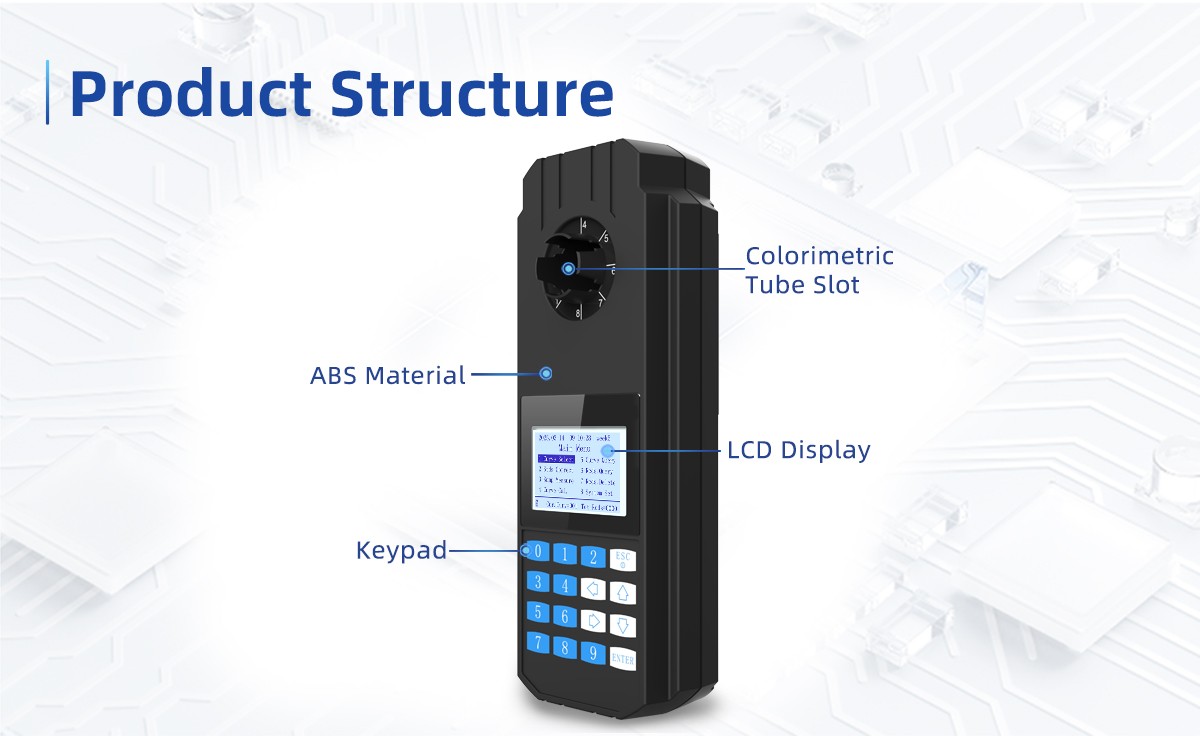

    The main unit shell is made of post-molded ABS material, with good corrosion resistance.



Packing List



Main Unit: 1 unit

Reagents : 1 set each for parameters (only provided for up to 10 parameters if there are more than 10)

Colorimetric Tubes: 10 tubes

Colorimetric Cuvettes : 2 cuvettes

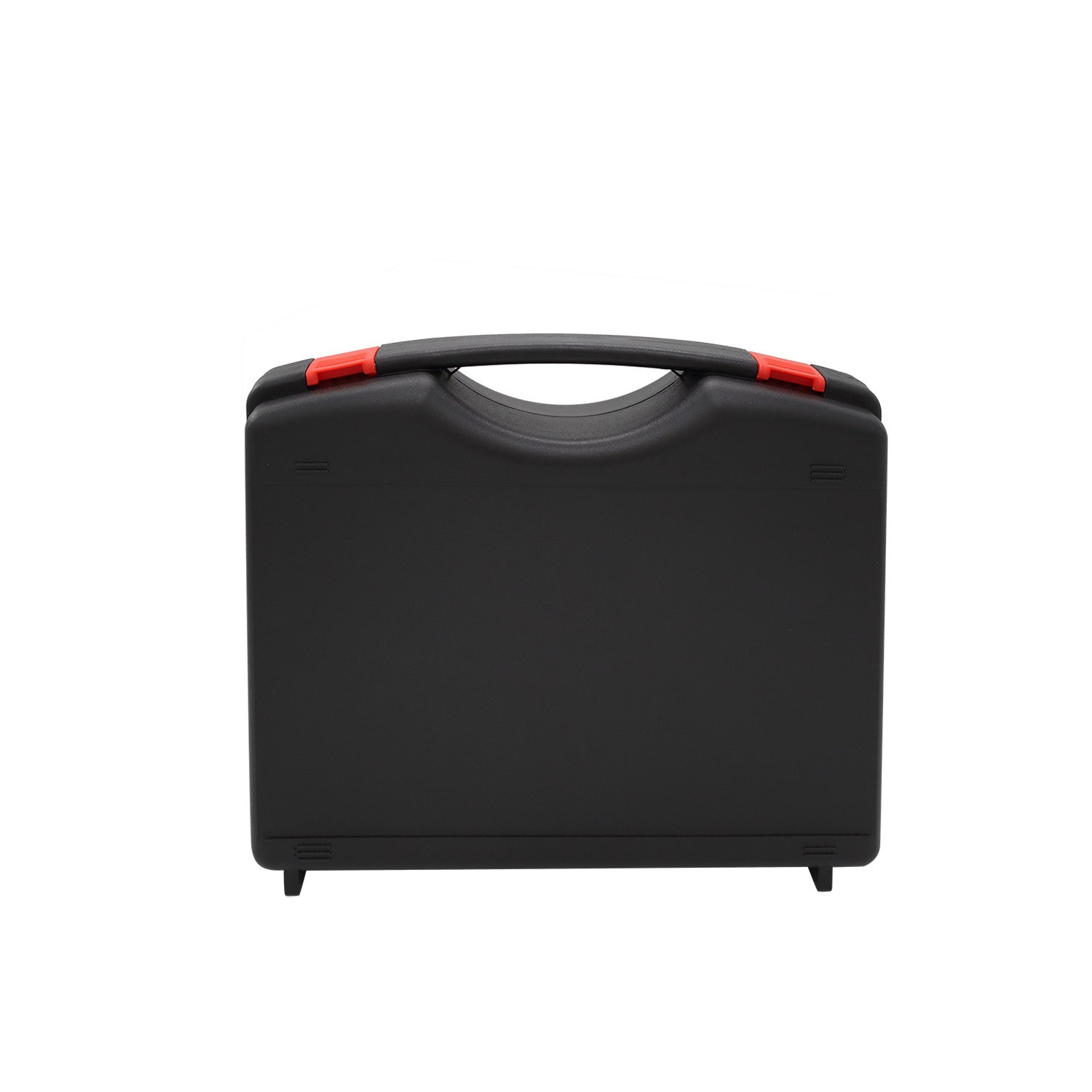

Carrying case: 1 case

USB Cable: 1 cable

User Manual: 1 copy

Product Certificate: 1 certificate

Warranty Card: 1 card
