PMULP-800-Portable Multi-parameter Water Quality Analyzer

PMULP-800

[Product Overview]

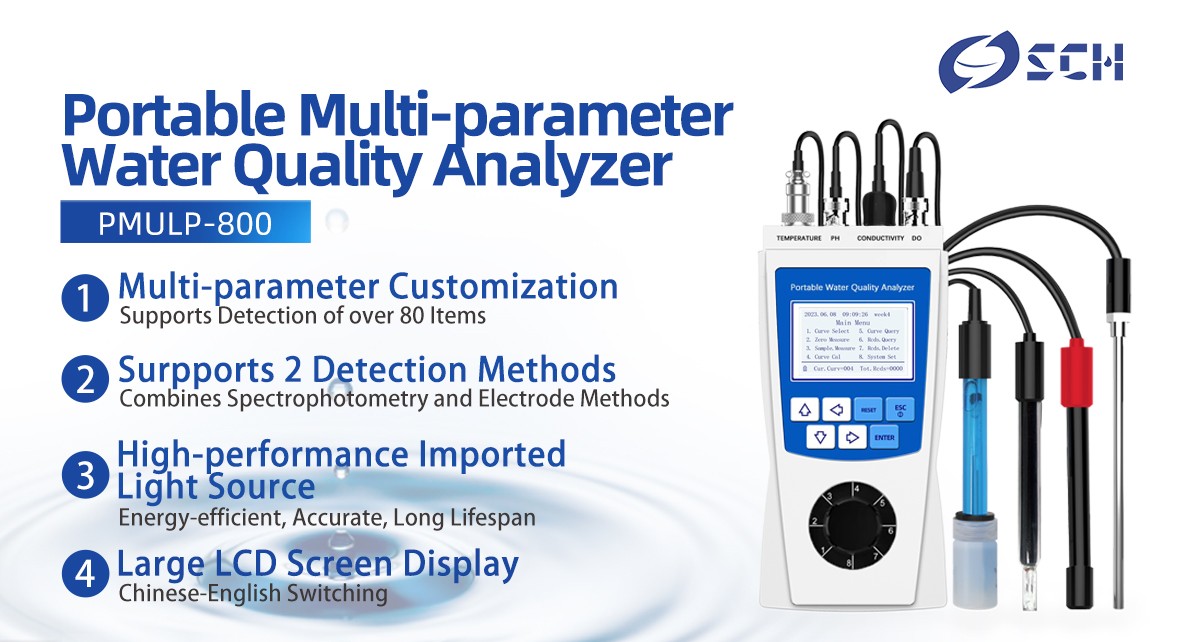

The portable multi-parameter water quality analyzer is a powerful and easy-to-carry device for rapid on-site detection of various water quality parameters. Electrode method is one of the core technologies of this analyzer. It directly measures physical and chemical parameters in water, such as pH value, dissolved oxygen, conductivity, and temperature, through high-precision electrode sensors that come into contact with the water sample. In addition to the electrode method, the analyzer is equipped with spectrophotometry for measuring parameters like inorganic salts, heavy metal ions and organic substances . This combination offers users a comprehensive water quality analysis solution.

[Application Area]

Product Details
Custom Matching

Technical Specifications



Measurement parameters

More than 70 parameters, including heavy metals, inorganic salts, pH, conductivity, dissolved oxygen and residual chlorine, can be customized by users (pH and ORP share one electrode interface in electrode method)

Wavelength

420nm, 440nm, 470nm, 520nm, 540nm, 560nm, 610nm, 630nm, 660nm, 680nm and 700nm (Any wavelength within the above range can be customized)

Indication error

≤±5 %

Repeatability

≤±3%

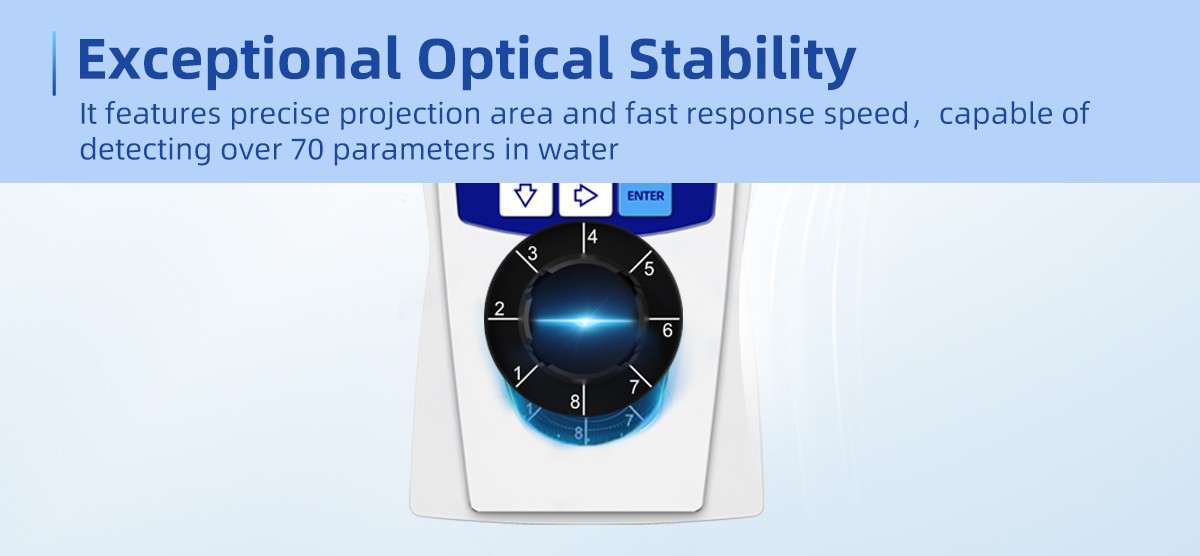

Optical stability

Absorbance drift ≤0 .002A/20min

Curve and Storage

250 factory calibration curves, 749 user-defined curves; Can store 9999 records.

Display

2.4-inch 240*160 LCD screen

Dimension

Instrument: 92 mm×185 mm×5mm;  Carrying case: 384mm*300mm*120mm

Power

10W

Weight

Instrument: About 0.4 kg;  Carrying case and accessories: About 1.5kg

Charging/Data Interface

Type C

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight.



Measurement Parameters and Accuracy

 No.

Measurement item

Measuring range

Unit

Indication error

1

Ammonia nitrogen(Low range)

0.00-5.00

mg/L

3%(F.S)

2

Ammonia nitrogen(High range)

5.00-25.00

mg/L

3%(F.S)

3

Residual chlorine(Low range)

0.00-2.00

mg/L

0.1/5%

4

Residual chlorine(High range)

2.0-10.0

mg/L

5%

5

Total chlorine(Low range)

0.00-2.00

mg/L

0.1/5%

6

Total chlorine(High range)

2.0-10.0

mg/L

5%

7

Chlorine dioxide(Low range)

0.00-2.00

mg/L

0.2/5%

8

Chlorine dioxide(High range)

2.0-20.0

mg/L

5%

9

Sulfate

0.0-200

mg/L

5%(F.S)

10

Nitrate(Nitrogen)

0.00-10.00

mg/L

0.1/5%

11

Phosphate(Low range)

0.00-10.0

mg/L

0.2/5%

12

Phosphate(High range)

10.0-50.0

mg/L

5%

13

Nitrite nitrogen(Low)

0.00-1.00

mg/L

0.05/5%

14

Nitrite nitrogen(High range)

1.0-5.0

mg/L

5%

15

Sulfide

0.00-1.00

mg/L

5%(F.S)

16

Fluoride

0.00-10.0

mg/L

5%(F.S)

17

Cyanide

0.00-0.50

mg/L

5%(F.S)

18

Bromide

0.00-5.00

mg/L

5%(F.S)

19

Formaldehyde

0.00-2.50

mg/L

5%(F.S)

20

Volatile phenol(Low range)

0.00-5.00

mg/L

5%(F.S)

21

Volatile phenol(High range)

5.0-10.0

mg/L

5%(F.S)

22

Hydrazine

0.00-0.50

mg/L

5%(F.S)

23

Aniline compound(Low range)

0.00-1.00

mg/L

5%(F.S)

24

Aniline compound(High range)

1.0-5.0

mg/L

5%(F.S)

25

Silica

0.00-5.00

mg/L

5%(F.S)

26

Silicate

0.00-6.00

mg/L

5%(F.S)

27

Total alkalinity(Low range)

0-100

mg/L

5%(F.S)

28

Total alkalinity(High range)

100-1000

mg/L

5%(F.S)

29

Total hardness

0.00-500

mg/L

5%(F.S)

30

Chloride ion(Chloride)

0.00-100.0

mg/L

5%(F.S)

31

Ozone

0.00-2.50

mg/L

5%(F.S)

32

Anionic surfactant

0.00-1.00

mg/L

5%(F.S)

33

Ammonium ion(Low range)

0.00-2.50

mg/L

5%(F.S)

34

Ammonium ion(High range)

2.5-25.0

mg/L

5%(F.S)

35

Available chlorine

0.0-200

mg/L

5%(F.S)

36

Chlorite

0.00-20.0

mg/L

5%(F.S)

37

Cyanuric acid

0-200

mg/L

5%(F.S)

38

Urea

0.00-4.00

mg/L

5%(F.S)

39

Copper(Low range)

0.00-1.00

mg/L

5%(F.S)

40

Copper(High range)

1.0-10.0

mg/L

5%(F.S)

41

Zinc

0.00-5.00

mg/L

5%(F.S)

42

Trace nickel(Low range)

0.000-0.500

mg/L

5%(F.S)

43

Trace nickel(High range)

0.50-1.00

mg/L

5%(F.S)

44

Nickel

0.00-10.00

mg/L

5%(F.S)

45

Iron(Low range)

0.00-5.00

mg/L

5%(F.S)

46

Iron(High range)

5.0-10.0

mg/L

5%(F.S)

47

Ferrous(Low range)

0.00-5.00

mg/L

5%(F.S)

48

Ferrous(High range)

5.0-10.0

mg/L

5%(F.S)

49

Hexavalent chromium

0.00-1.00

mg/L

5%(F.S)

50

Cadmium

0.05-0.50

mg/L

5%(F.S)

51

Manganese(Low range)

0.01-0.10

mg/L

5%(F.S)

52

Manganese(High range)

0.10-1.00

mg/L

5%(F.S)

53

Manganese

0.00-5.00

mg/L

5%(F.S)

54

Aluminum(Low range)

0.00-0.50

mg/L

5%(F.S)

55

Aluminum(High range)

0.5-5.0

mg/L

5%(F.S)

56

Silver

0.00-1.00

mg/L

5%(F.S)

57

Molybdenum

0.00-1.00

mg/L

5%(F.S)

58

Arsenic(Low range)

0.000-0.500

mg/L

5%(F.S)

59

Arsenic(High range)

0.50-5.00

mg/L

5%(F.S)

60

Beryllium

0.00-0.10

mg/L

5%(F.S)

61

Boron

0.00-2.00

mg/L

5%(F.S)

62

Mercury

0.000-0.500

mg/L

5%(F.S)

63

Lead

0.00-0.50

mg/L

5%(F.S)

64

Antimony

0.00-10.00

mg/L

5%(F.S)

65

Barium

0-100

mg/L

5%(F.S)

66

pH(Colorimetric method)

5.00-8.00

pH

0.1±0.1pH

67

pH(Electrode method)

0.00-14.00

pH

±0.1pH

68

Dissolved oxygen(Colorimetric method)

0.0-10.0

mg/L

0.1±5%

69

Dissolved oxygen(Electrode method)

0-20.0

mg/L

±0.2

70

Conductivity(Electrode method)

0.00µs/cm-199.9ms/cm

ms/cm

±1.0% (F.S)

71

Temperature(Electrode method)

0-100

±1℃

72

TDS(Electrode method)

0.0mg/L-199.9g/L

g/L

±0.5% (F.S)

73

Salinity(Electrode method)

0-10000mg/L

mg/L

±1.0% (F.S)

74

Turbidity

0-1000

NTU

≤2%(F.S)

75

ORP(Electrode method)

-2000.0-2000.0mV

mV

±0.1%(F.S)



Functional Features



    Automatic wavelength selection during sample measurement, no need for adjustment.

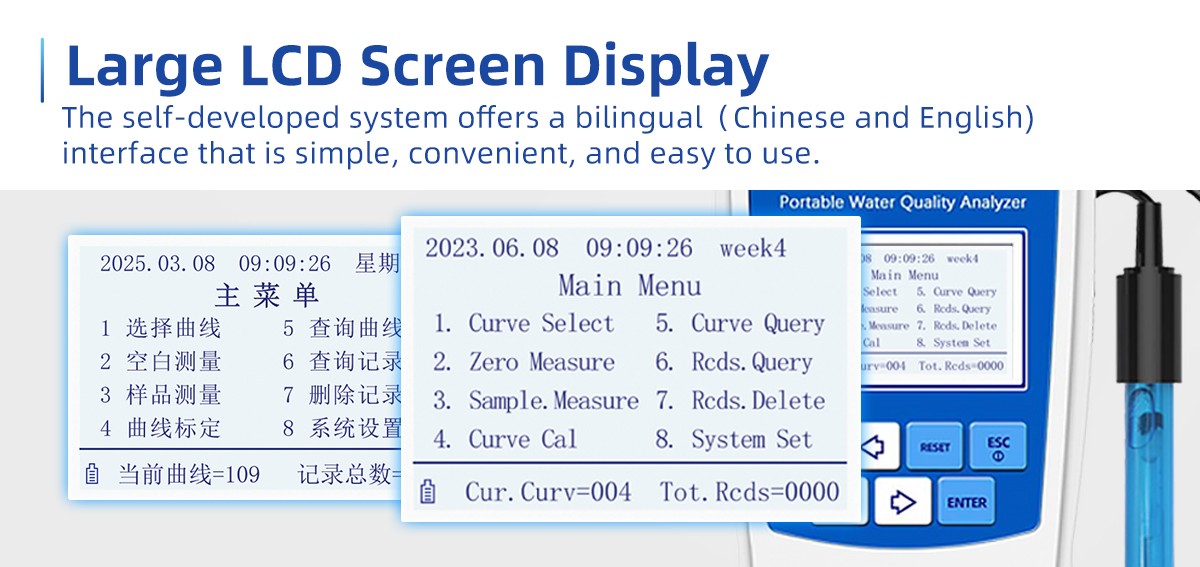

    Large LCD display with Chinese characters for easy and intuitive operation.


    Includes data storage function, in addition to factory curves up to 250 (related to the selected parameters), users can add up to 749 curves, and can calibrate added curves themselves.


    Can store up to 9999 measurement records including parameter names, concentration, units, detection date, time, etc.


    In addition to factory curves, users can add and calibrate curves, and store them in the instrument.


    The instrument has a one-key factory reset function, which can restore factory settings if factory curves or related parameters are lost due to accidents (power surge,

   electromagnetic interference, etc.).


    The instrument is equipped with various safety measures. When setting the instrument system, the system administrator needs to input a password to enter,

    preventing unauthorized personnel from incorrectly operating the instrument.


    When used with the company's data acquisition software on a Instrument computer, it can collect measurement records from the instrument, which can be saved, edited,

   and printed on the computer.


    Using imported high-performance LED light source and imported high-performance silicon photoelectric sensor.


    Data power-off protection function.



Packing List



Main Unit: 1 unit

Carrying case: 1 case

Reagents (configured according to selected parameters): 1 sets for common parameters, configured based on specific parameter needs (up to 10 parameter sets provided if there are more than 10 parameters)

Colorimetric Tubes: Several (Ф25*110mm)

Test Tube Racks: 2 racks

Pipette: 1 pipette

USB Cable: 1 cable

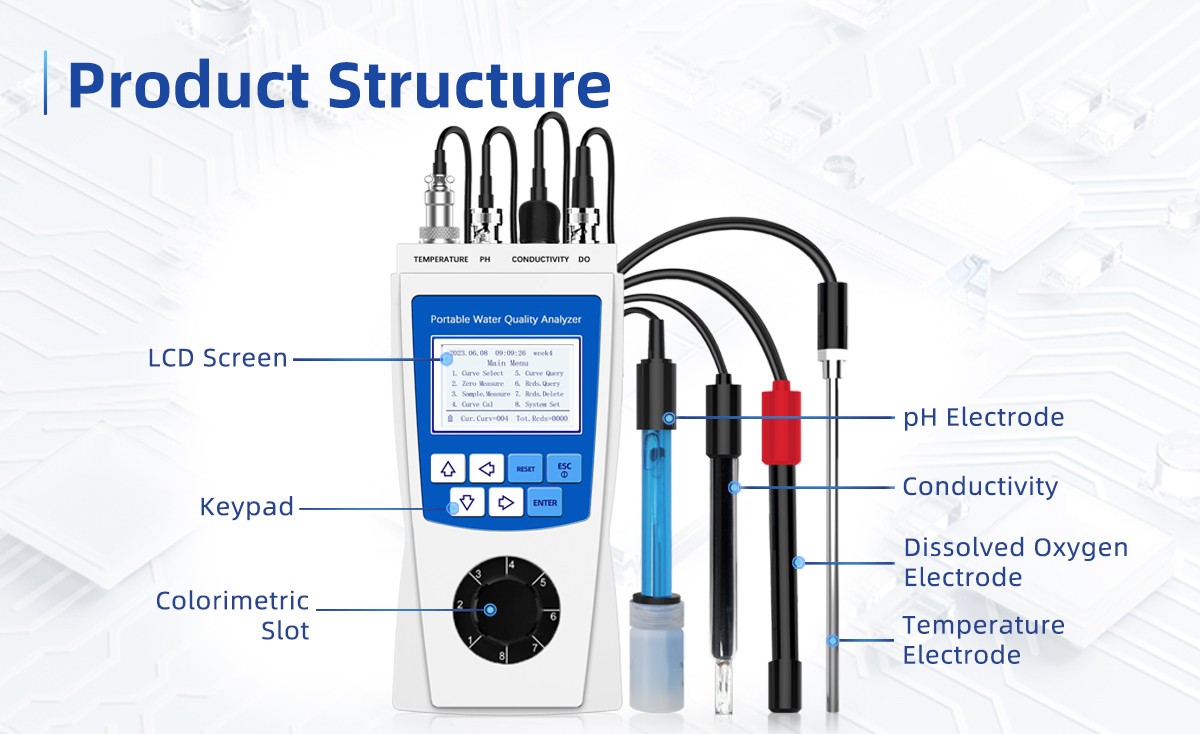

Electrode (configured according to selected parameters): 1 pH composite electrode, 1 conductivity electrode, 1 dissolved oxygen electrode, 1 temperature electrode.

User Manual: 1 copy

Product Certificate: 1 certificate

Warranty Card: 1 card
