Technical specifications
Measurement parameter | BOD5 |
Measurement range | 0~1000mg/L（Dilution Pre-treatment Required for Over-Range Measurements） |
Analytical method | Differential pressure method |
Testing standard | HJ505-2009 5-Day BOD test |
Measurement period | 5 days |
Incubation temperature | 20±1℃ |
Processing capacity | 8 samples per run |
Incubation Bottle Capacity | About 500ml |
Dimension | 400mm×270mm×350mm |
Weight | Main unit: 5.35kg Incubation Bottle: 0.25kg/unit |
Power consumption | 18W |
Working environment | (1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: DC 12V (4) No significant vibration and electromagnetic interference, avoid direct sunlight. |
Functional features
Easy to operate, providing accurate measurement results comparable to chemical dilution methods.
Durable, with glass culture bottles and a mercury pressure differential system, strong resistance to interference, suitable for high-turbidity and high-organic-content water samples.
Manual operation, classic manual reading mode, suitable for laboratories accustomed to traditional methods.
Five-day constant-temperature incubation, 20±1°C incubator, ensuring stable conditions for 5-day incubation to avoid temperature fluctuations affecting results.
Multi-channel parallel detection, supports 8-channel synchronous incubation, meeting the needs for large-scale sample analysis and improving laboratory efficiency.
Cost-effective and practical, low purchase cost, high cost-performance ratio in the industry.
Standard method, authoritative recognition, in compliance with HJ 505-2009 standard, suitable for formal testing scenarios such as
environmental acceptance and enforcement monitoring.

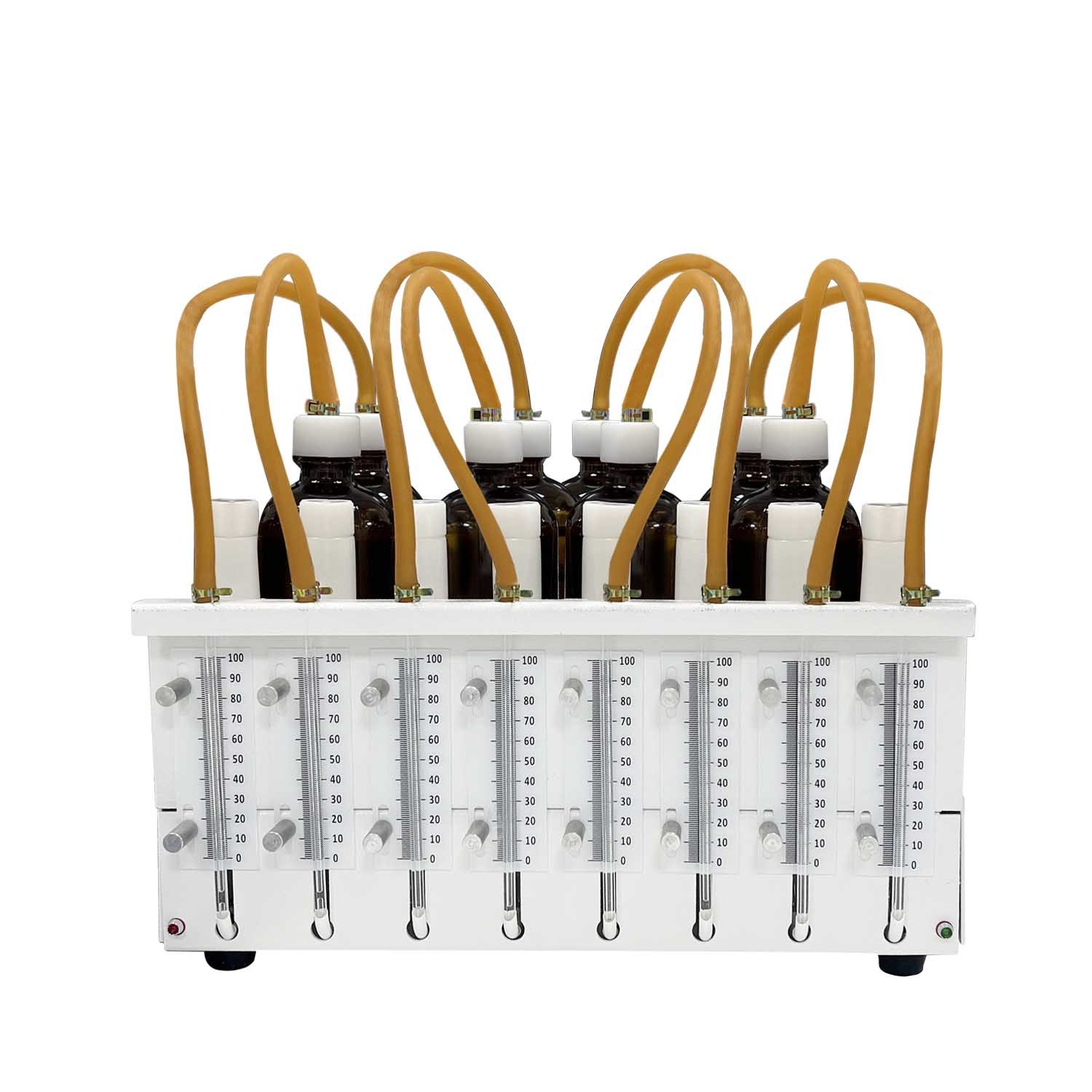

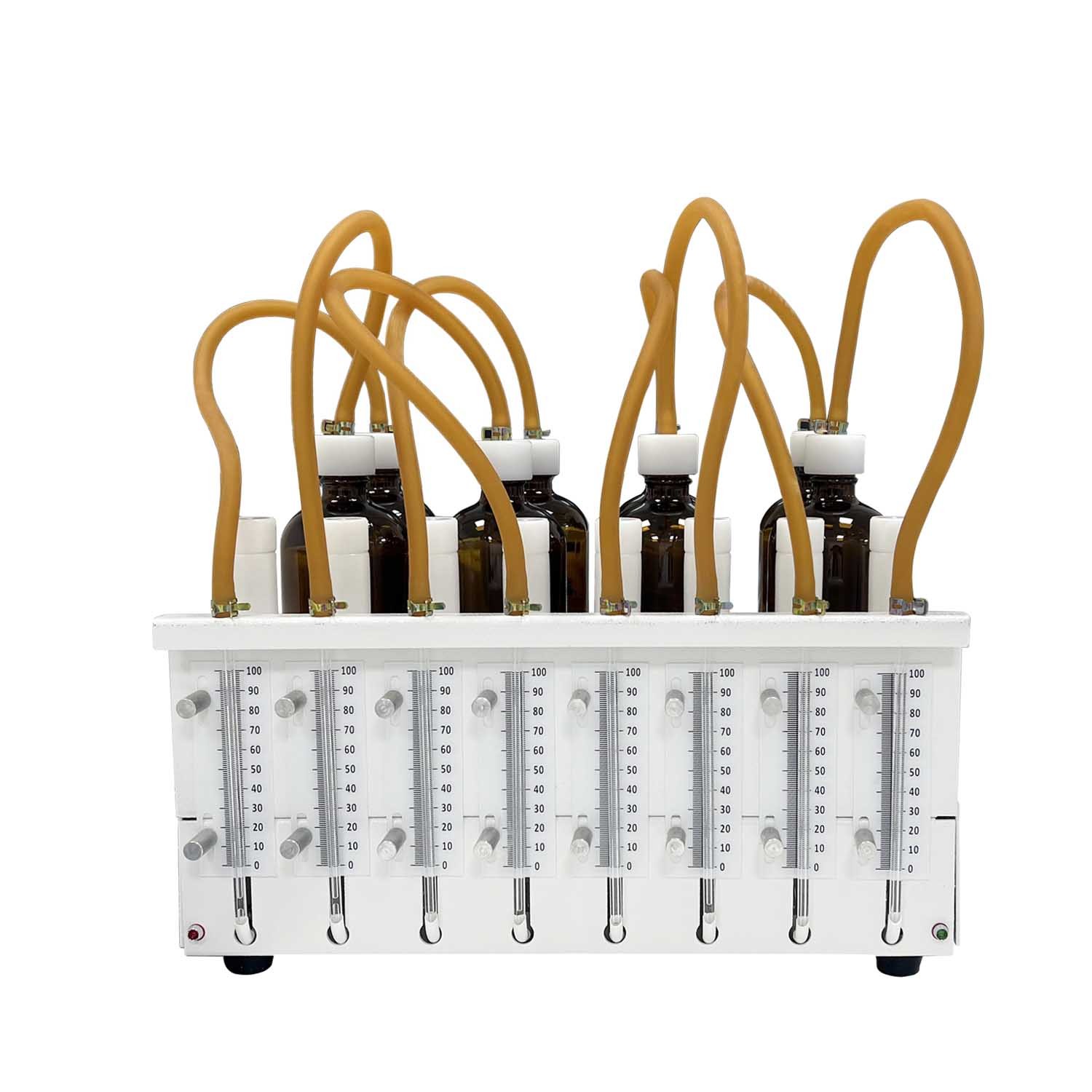

High-precision mercury pressure differential measurement, using a mercury manometer to directly measure the pressure changes caused by
oxygen consumption in the culture bottles, stable and reliable data, simple structure, easy to maintain and use.
Wide application range, suitable for various industry departments such as environmental monitoring, petrochemicals, healthcare, teaching, and scientific research.
Packing list
BOD Main Unit: 1 unit
Culture Bottles: 10 pieces
Stirring Bars: 10 pieces
Mercury: 1 bottle
Sealing Cups: 8 pieces
Rubber Drive Belts: 3 large and 3 small
Sealing Rings: 2 pieces
Fuses: 2 pieces
Power Adapter (AC/DC Converter): 1 unit
