Technical specifications
Dimensions | Inner chamber：450mm×430mm×530mm；Outer chamber：520mm×520mm×1100mm |
Accuracy | Temperature : ±1.0℃ |
Temperature control system | 5℃～65℃ |
Material of inner chamber | Stainless steel |
Power | 0.8kW |
Refrigerant | R134a |
Working environment | Temperature: 5°C - 35°C; Relative humidity: ≤80%; Power supply: 220V 50Hz; The instrument should be free from strong vibrations and corrosive gases; Avoid direct sunlight and other sources of heat and cold; The instrument should be placed on a level surface with at least 20 cm of space around it; The instrument should be installed in a well-ventilated indoor environment with minimal dust. |
Functional features

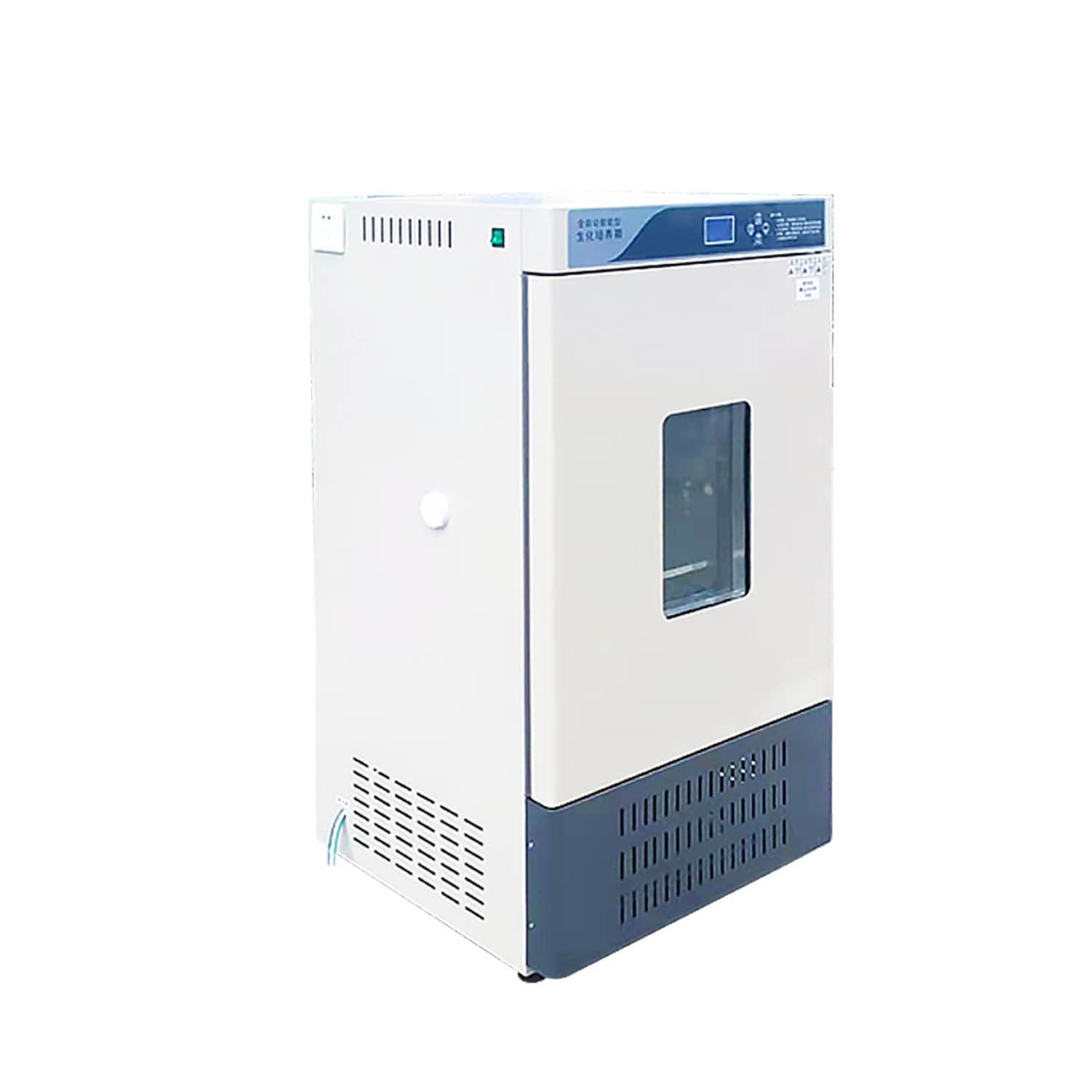

Vertical structure: The exterior is made of high-quality cold-rolled steel with an electrostatic spray coating.
Temperature control system: Uses a microcomputer chip processor with PID control for precise temperature regulation and time-setting functions.
Equipped with a vacuum-toughened glass observation window, allowing inspection of the interior with the aid of lighting.
Unique airflow system: Ensures more uniform temperature distribution.
Test port: A Φ40 test hole on the left side of the unit for user access and connection of external devices.
Display: Large color LCD screen that shows temperature and dynamic icons for an intuitive display of the incubator’s operating status.
High temperature accuracy: Microcomputer-controlled temperature with accurate and intuitive adjustments via touch-sensitive buttons.
Safety and reliability: Over-voltage and under-voltage protection, dual temperature limit protection (with adjustable high and low temperature alarms from 0 to 69.9°C and an upper limit of 70°C).
Energy-saving and eco-friendly: Insulation layer made of solid polyurethane injection, durable and efficient.
Packing list
3 mesh trays, 14 hooks, 1 user manual, 1 quality tracking card.
