Technical Specifications
|
Measuring item |
COD |
Total phosphorus |
Total nitrogen |
Ammonia nitrogen |
Turbidity |
Other parameter(see table below) |
|
Measuring range |
5～200mg/L；200～2000mg/L (dilute if excess the measuring range) |
0.00-10.00mg/L (dilute if excess the measuring range) |
0.00-10.00mg/L； 10.0-100.0mg/L (dilute if excess the measuring range) |
0.00-25.00mg/L (dilute if excess the measuring range) |
0-400NTU; 0-1000NTU (dilute if excess the measuring range) |
/ |
|
Measuring accuracy |
0.1 mg/L; 1mg/L |
0.01 mg/L |
0.1 mg/L; 0.01 mg/L |
0.01 mg/L |
0.01 NTU |
/ |
|
Indication error |
≤±5 % |
≤±5 % |
≤±5 % |
≤±3 % |
≤±2 % |
/ |
|
Repeatability |
≤±2% |
|||||
|
Anti-chlorine interference |
≤2000mg/L |
/ |
/ |
/ |
/ |
/ |
|
Optical stability |
Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours |
|||||
|
Testing standard |
HJ/T 399-2007 |
GB/T 11893-89 |
HJ_636-2012 / BS ISO 23696-2:2023 |
HJ/T 535-2009 |
GB 13200-91/ GB/T 5750.4-2023 (HJ 1075-2019) |
/ |
|
Analytical method |
Closed Vessel Digestion and Colorimetric Method (Colorimetric Tubes) |
Ammonium molybdate spectrophotometric method (Colorimetric Tubes) |
Alkaline potassium persulfate digestion UV spectrophotometry or chromic acid spectrophotometry (Colorimetric Tubes) |
Nessler spectrophotometric method (Colorimetric Tubes) |
Scattering method (Colorimetric Tubes) |
/ |
|
Digestion capacity |
16 samples per run |
/ |
/ |
/ |
||
|
Temperature control system |
Temperature range: room temperature ~200℃; Accuracy：±0.5℃；Time period：1~9999min |
/ |
/ |
/ |
||
|
Digestion period |
15min |
30min |
30min |
/ |
/ |
/ |
|
Curve and Storage |
200 factory calibration curves, 3500 user-defined curves; Can store 100,000 records. |
|||||
|
Display |
Instrument: 5 inch 800*480 color touchscreen; Digester: 3.5 inch 480*320 color touchscreen |
Instrument: 5 inch 800*480 color touchscreen;
|
||||
|
Printer |
Built-in thermal printer |
|||||
|
Power consumption |
Instrument: 30W Digester: 300W |
Instrument: 30W |
||||
|
Dimension |
Instrument：400mm×320mm×182mm; Digester ：249mm×350mm×199mm |
Instrument：400mm×320mm×182mm |
||||
|
Weight |
Instrument：4.75kg Digester：5.6kg |
Instrument：4.75kg |
||||
|
Data interface |
USB |
|||||
|
Working environment |
(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight. |
|||||
Measurement Parameters and Accuracy
|
No. |
Measurement item |
Measuring range |
Unit |
Indication error |
|
1 |
CODMn(Permanganate index) |
0.00-10.00 |
mg/L |
0.2或5% |
|
2 |
Residual chlorine(Low range) |
0.00-2.00 |
mg/L |
0.1或5% |
|
3 |
Residual chlorine(High range) |
2.0-10.0 |
mg/L |
5% |
|
4 |
Total chlorine(Low range) |
0.00-2.00 |
mg/L |
0.1或5% |
|
5 |
Total chlorine(High range) |
2.0-10.0 |
mg/L |
5% |
|
6 |
Chlorine dioxide(Low range) |
0.00-2.00 |
mg/L |
0.2或5% |
|
7 |
Chlorine dioxide(High range) |
2.0-20.0 |
mg/L |
5% |
|
8 |
Sulfate |
0-200 |
mg/L |
5%(F.S) |
|
9 |
Nitrate(Nitrogen) |
0.00-10.00 |
mg/L |
0.1或5% |
|
10 |
Phosphate(Low range) |
0.00-10.0 |
mg/L |
0.2或5% |
|
11 |
Phosphate(High range) |
10.0-50.0 |
mg/L |
5% |
|
12 |
Nitrite nitrogen(Low range) |
0.00-1.00 |
mg/L |
0.05或5% |
|
13 |
Nitrite nitrogen(High range) |
1.0-5.0 |
mg/L |
5% |
|
14 |
Sulfide |
0.00-1.00 |
mg/L |
5%(F.S) |
|
15 |
Fluoride |
0.00-10.0 |
mg/L |
5%(F.S） |
|
16 |
Cyanide |
0.00-0.50 |
mg/L |
5%(F.S) |
|
17 |
Bromide |
0.00-5.00 |
mg/L |
5%(F.S) |
|
18 |
Formaldehyde |
0.00-2.50 |
mg/L |
5%(F.S) |
|
19 |
Volatile phenol(Low range) |
0.00-5.00 |
mg/L |
5%(F.S) |
|
20 |
Volatile phenol(High range) |
5.0-10.0 |
mg/L |
5%(F.S) |
|
21 |
Hydrazine |
0.00-0.50 |
mg/L |
5%(F.S) |
|
22 |
Aniline compound(Low range) |
0.00-1.00 |
mg/L |
5%(F.S) |
|
23 |
Aniline compound(High range) |
1.0-5.0 |
mg/L |
5%(F.S) |
|
24 |
Silica |
0.00-5.00 |
mg/L |
5%(F.S) |
|
25 |
Silicate |
0.00-6.00 |
mg/L |
5%(F.S) |
|
26 |
Total alkalinity(Low range) |
0-100 |
mg/L |
5%(F.S) |
|
27 |
Total alkalinity(High range) |
100-1000 |
mg/L |
5%(F.S) |
|
28 |
Total hardness |
0.00-500 |
mg/L |
5%(F.S) |
|
29 |
Chloride ion(Chloride) |
0.00-100.0 |
mg/L |
5%(F.S) |
|
30 |
Ozone |
0.00-2.50 |
mg/L |
5%(F.S) |
|
31 |
Anionic surfactant |
0.00-1.00 |
mg/L |
5%(F.S) |
|
32 |
Ammonium ion (Low range) |
0.00-2.50 |
mg/L |
5%(F.S) |
|
33 |
Ammonium ion (High range) |
2.5-25.0 |
mg/L |
5%(F.S) |
|
34 |
Available chlorine |
0.0-200 |
mg/L |
5%(F.S) |
|
35 |
Chlorite |
0.00-20.0 |
mg/L |
5%(F.S) |
|
36 |
Cyanuric acid |
0-200 |
mg/L |
5%(F.S) |
|
37 |
Urea |
0.00-4.00 |
mg/L |
5%(F.S) |
|
38 |
Copper(Low range) |
0.00-1.00 |
mg/L |
5%(F.S) |
|
39 |
Copper(High range) |
1.0-10.0 |
mg/L |
5%(F.S) |
|
40 |
Zinc |
0.00-5.00 |
mg/L |
5%(F.S) |
|
41 |
Trace Nickel(Low range) |
0.000-0.500 |
mg/L |
5%(F.S) |
|
42 |
Trace Nickel(High range) |
0.50-1.00 |
mg/L |
5%(F.S) |
|
43 |
Nickel |
0.00-10.00 |
mg/L |
5%(F.S) |
|
44 |
Iron(Low range) |
0.00-5.00 |
mg/L |
5%(F.S) |
|
45 |
Iron(High range) |
5.0-10.0 |
mg/L |
5%(F.S) |
|
46 |
Ferrous(Low range) |
0.00-5.00 |
mg/L |
5%(F.S) |
|
47 |
Ferrous(High range) |
5.0-10.0 |
mg/L |
5%(F.S) |
|
48 |
Hexavalent chromium |
0.00-1.00 |
mg/L |
5%(F.S) |
|
49 |
Cadmium |
0.05-0.50 |
mg/L |
5%(F.S) |
|
50 |
Manganese(Low range) |
0.01-0.10 |
mg/L |
5%(F.S) |
|
51 |
Manganese(High range) |
0.10-1.00 |
mg/L |
5%(F.S) |
|
52 |
Manganese |
0.00-5.00 |
mg/L |
5%(F.S) |
|
53 |
Total chromium |
0.00-1.00 |
mg/L |
5%(F.S) |
|
54 |
Aluminum(Low range) |
0.00-0.50 |
mg/L |
5%(F.S) |
|
55 |
Aluminum(High range) |
0.5-5.0 |
mg/L |
5%(F.S) |
|
56 |
Silver |
0.00-1.00 |
mg/L |
5%(F.S) |
|
57 |
Molybdenum |
0.00-1.00 |
mg/L |
5%(F.S) |
|
58 |
Arsenic(Low range) |
0.000-0.500 |
mg/L |
5%(F.S) |
|
59 |
Arsenic(High range) |
0.50-5.00 |
mg/L |
5%(F.S) |
|
60 |
Beryllium |
0.00-0.10 |
mg/L |
5%(F.S) |
|
61 |
Boron |
0.00-2.00 |
mg/L |
5%(F.S) |
|
62 |
Mercury |
0.000-0.500 |
mg/L |
5%(F.S) |
|
63 |
Lead |
0.00-0.50 |
mg/L |
5%(F.S) |
|
64 |
Antimony |
0.00-10.00 |
mg/L |
5%(F.S) |
|
65 |
Barium |
0-100 |
mg/L |
5%(F.S) |
|
66 |
Color(Low range) |
0-50.0 |
PCU |
3%(F.S) |
|
67 |
Color(High range) |
50-500 |
PCU |
3%(F.S) |
|
68 |
Suspended solids |
0-1000 |
mg/L |
≤2%(F.S) |
|
69 |
PH(Colorimetric method) |
5.00-8.00 |
pH |
0.1±0.1pH |
|
70 |
Dissolved oxygen(Colorimetric method) |
0.0-10.0 |
mg/L |
0.1±5% |
Functional Features
Capable of detecting concentrations, absorbance, and transmittance of nearly a hundred parameters in water quality.
Ability to store, print, query, and upload concentration values to a computer.
Wavelength Selection: allows automatic wavelength selection during sample measurement, eliminating the need for manual calibration.
Users can add and store custom calibration curves in addition to factory presets. Measurement methods include linear and piecewise linear (segmented) methods,
enhancing accuracy for parameters with non-linear responses.
Built-in calibration function for self-calibration during operation, effectively reducing long-term drift errors.
Features one-touch recovery for restoring factory and user-defined curve data in case of accidental loss. Also includes automatic backup of calibration curves and data records to prevent loss.
Incorporates startup and system password settings for enhanced security.

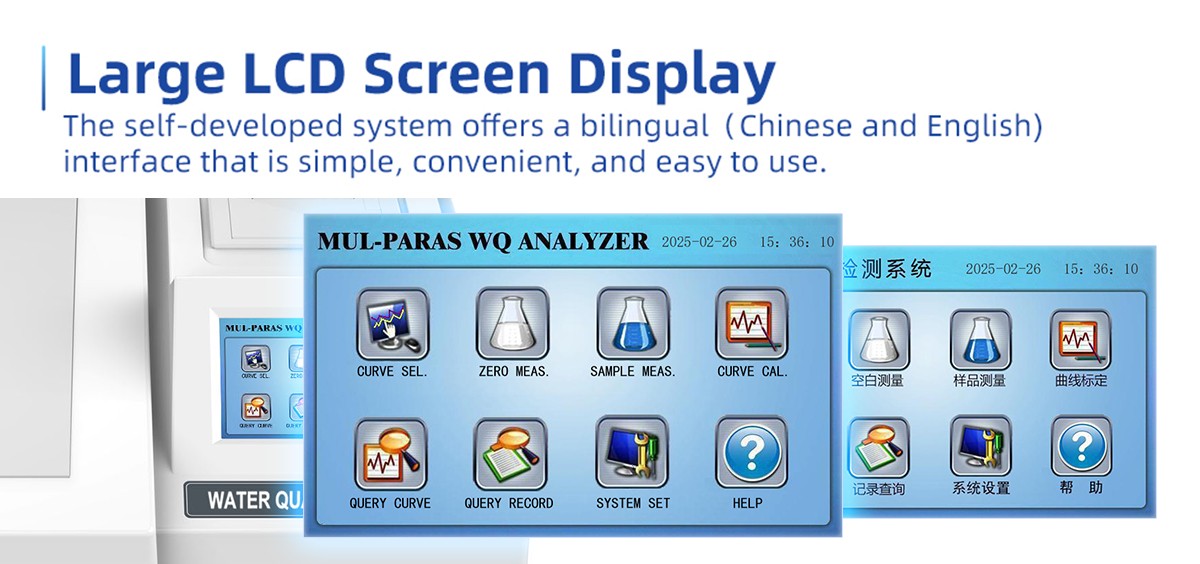

Utilizes a user-friendly 5-inch color touchscreen for intuitive operation.
Offers 16 levels of light intensity adjustment to address measurement range expansion issues caused by signal strength variability.
Supports bilingual operation with switchable Chinese and English language settings.
Capable of storing 250 factory curves, add 3500 user curves, and store up to 100,000 records.
Allows comprehensive curve querying, including equation retrieval and details on standard substance values, absorbance, calibration time, and personnel ID.
Supports single-item or page printing during record queries.
Includes features like timed reminders, automatic shutdown after digestion, and secondary protection mechanisms to ensure safety during high-temperature operations.
Packing List
Main Unit: 1 unit
Digester: 1 unit
Reagents (configured according to selected parameters): 1 set each for common parameters (only provided for up to 10 parameters if there are more than 10)
Colorimetric Tubes: 40 tubes (Ф16*110mm)
Colorimetric Cuvettes : 2 cuvettes
Test Tube Racks: 1 racks
Pipette: 1 pipette
USB Cable: 1 cable
User Manual: 1 copy
Product Certificate: 1 certificate
Warranty Card: 1 card
