Technical Specifications
Measurement parameters | Over 60 items are available for selection, including copper, iron, nickel, hexavalent chromium, phosphate and nitrite etc. (see the table below) |
Wavelength | 420nm, 440nm, 470nm, 510nm, 520nm, 540nm, 560nm, 600nm, 610nm, 630nm, 660nm, 700nm (Any wavelength within the above range can be customized) |
Indication error | ≤±5 % |
Repeatability | ≤±3% |
Optical stability | Absorbance drift ≤0 .002A/20min |
Curve and Storage | 150 factory calibration curves, 20 user-defined curves; Can store 1,000 records. |
Display | 5-inch LCD screen with a 240*128 pixel matrix |
Power | 15W |
Dimension | 273mm×201mm×129mm |
Weight | 1.15kg |
Working environment | (1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight. |
Measurement Parameters and Accuracy
No. | Measurement item | Measuring range | Unit | Indication error |
1 | Ammonia nitrogen (Low range) | 0.00-5.00 | mg/L | 3%(F.S) |
2 | Ammonia nitrogen (High range) | 5.00-25.00 | mg/L | 3%(F.S) |
3 | CODMn(Permanganate index) | 0.00-10.00 | mg/L | 0.2 or 5% |
4 | Residual chlorine(Low range) | 0.00-2.00 | mg/L | 0.1 or 5% |
5 | Residual chlorine(High range) | 2.0-10.0 | mg/L | 5% |
6 | Total chlorine(Low range) | 0.00-2.00 | mg/L | 0.1 or 5% |
7 | Total chlorine(High range) | 2.0-10.0 | mg/L | 5% |
8 | Chlorine dioxide(Low range) | 0.00-2.00 | mg/L | 0.2 or 5% |
9 | Chlorine dioxide(High range) | 2.0-20.0 | mg/L | 5% |
10 | Sulfate | 0-200 | mg/L | 5%(F.S) |
11 | Nitrate(Nitrogen) | 0.00-10.00 | mg/L | 0.1 or 5% |
12 | Phosphate(Low range) | 0.00-10.0 | mg/L | 0.2 or 5% |
13 | Phosphate(High range) | 10.0-50.0 | mg/L | 5% |
14 | Nitrite nitrogen(Low range) | 0.00-1.00 | mg/L | 0.05 or 5% |
15 | Nitrite nitrogen(High range) | 1.0-5.0 | mg/L | 5% |
16 | Sulfide | 0.00-1.00 | mg/L | 5%(F.S) |
17 | Fluoride | 0.00-10.0 | mg/L | 5%(F.S） |
18 | Cyanide | 0.00-0.50 | mg/L | 5%(F.S) |
19 | Bromide | 0.00-5.00 | mg/L | 5%(F.S) |
20 | Formaldehyde | 0.00-2.50 | mg/L | 5%(F.S) |
21 | Volatile phenol(Low range) | 0.00-5.00 | mg/L | 5%(F.S) |
22 | Volatile phenol(High range) | 5.0-10.0 | mg/L | 5%(F.S) |
23 | Hydrazine | 0.00-0.50 | mg/L | 5%(F.S) |
24 | Aniline compound(Low range) | 0.00-1.00 | mg/L | 5%(F.S) |
25 | Aniline compound(High range) | 1.0-5.0 | mg/L | 5%(F.S) |
26 | Silica | 0.00-5.00 | mg/L | 5%(F.S) |
27 | Total alkalinity(Low range) | 0-100 | mg/L | 5%(F.S) |
28 | Total alkalinity(High range) | 100-1000 | mg/L | 5%(F.S) |
29 | Total hardness(Low range) | 0.00-500 | mg/L | 5%(F.S) |
30 | Chloride ion(Chloride) | 0.00-100.0 | mg/L | 5%(F.S) |
31 | Copper(Low range) | 0.00-1.00 | mg/L | 5%(F.S) |
32 | Copper(High range) | 1.0-10.0 | mg/L | 5%(F.S) |
33 | Zinc | 0.00-5.00 | mg/L | 5%(F.S) |
34 | Trace Nickel(Low range) | 0.000-0.500 | mg/L | 5%(F.S) |
35 | Trace Nickel(High range) | 0.50-1.00 | mg/L | 5%(F.S) |
36 | Nickel | 0.00-10.00 | mg/L | 5%(F.S) |
37 | Iron(Low range) | 0.00-5.00 | mg/L | 5%(F.S) |
38 | Iron(High range) | 5.0-10.0 | mg/L | 5%(F.S) |
39 | Hexavalent chromium | 0.00-1.00 | mg/L | 5%(F.S) |
40 | Cadmium | 0.05-0.50 | mg/L | 5%(F.S) |
41 | Trace Manganese(Low range) | 0.01-0.10 | mg/L | 5%(F.S) |
42 | Trace Manganese(High range) | 0.10-1.00 | mg/L | 5%(F.S) |
43 | Manganese | 0.00-5.00 | mg/L | 5%(F.S) |
44 | Total chromium | 0.00-1.00 | mg/L | 5%(F.S) |
45 | Aluminum(Low range) | 0.00-0.50 | mg/L | 5%(F.S) |
46 | Aluminum(High range) | 0.5-5.0 | mg/L | 5%(F.S) |
47 | Silver | 0.00-1.00 | mg/L | 5%(F.S) |
48 | Molybdenum | 0.00-1.00 | mg/L | 5%(F.S) |
49 | Barium | 0-100 | mg/L | 5%(F.S) |
50 | Arsenic(Low range) | 0.000-0.500 | mg/L | 5%(F.S) |
51 | Arsenic(High range) | 0.50-5.00 | mg/L | 5%(F.S) |
52 | Boron | 0.00-2.00 | mg/L | 5%(F.S) |
53 | Mercury | 0.000-0.500 | mg/L | 5%(F.S) |
54 | Lead | 0.00-0.50 | mg/L | 5%(F.S) |
55 | pH(Colorimetric method) | 5.00-8.00 | pH | 0.1±0.1pH |
56 | Dissolved oxygen(Colorimetric method) | 0.0-10.0 | mg/L | 0.1±5% |
57 | Ozone | 0.00-2.50 | mg/L | 5%(F.S) |
58 | Anionic surfactant | 0.00-1.00 | mg/L | 5%(F.S) |
59 | Available chlorine | 0.0-200 | mg/L | 5%(F.S) |
60 | Chlorite | 0.00-20.0 | mg/L | 5%(F.S) |
61 | Antimony | 0.00-10.00 | mg/L | 5%(F.S) |
62 | Ammonium ion(Low range) | 0.00-2.50 | mg/L | 5%(F.S) |
63 | Ammonium ion(High range) | 2.5-25.0 | mg/L | 5%(F.S) |
64 | Silicate | 0.00-6.00 | mg/L | 5%(F.S) |
65 | Cyanuric acid | 0-200 | mg/L | 5%(F.S) |
66 | Urea | 0.00-4.00 | mg/L | 5%(F.S) |

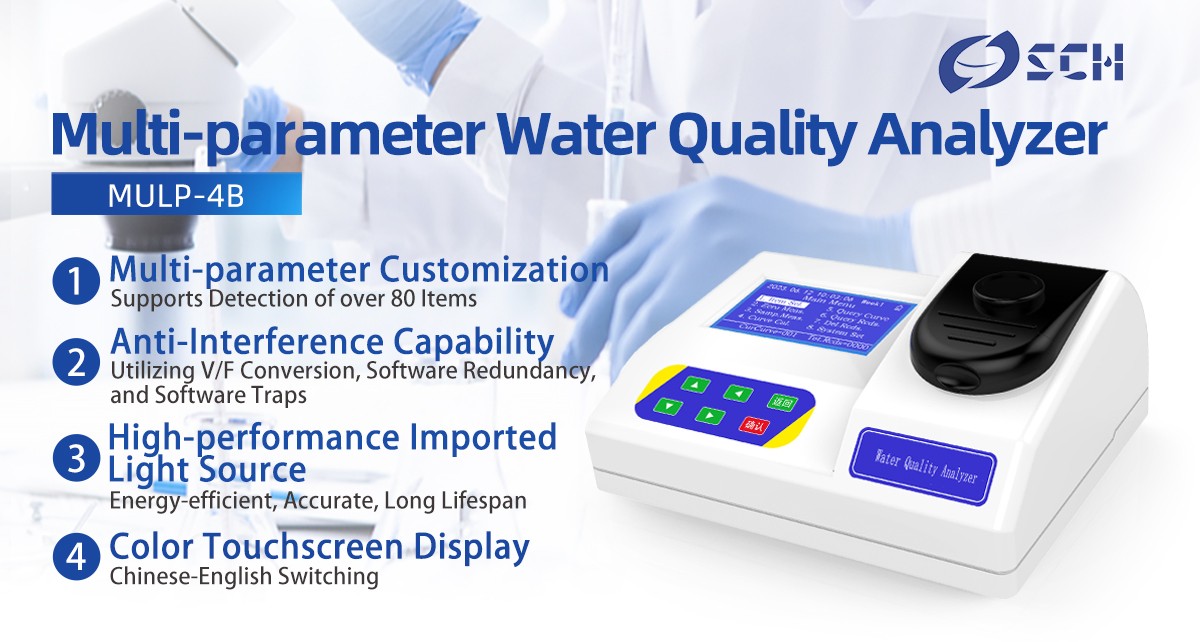

Functional Features
1.Utilizes cold light and monochromatic light as the light source, ensuring excellent optical stability and resistance to various light interference.
2.Simple operation and high measurement accuracy, suitable for the latest discharge standards.

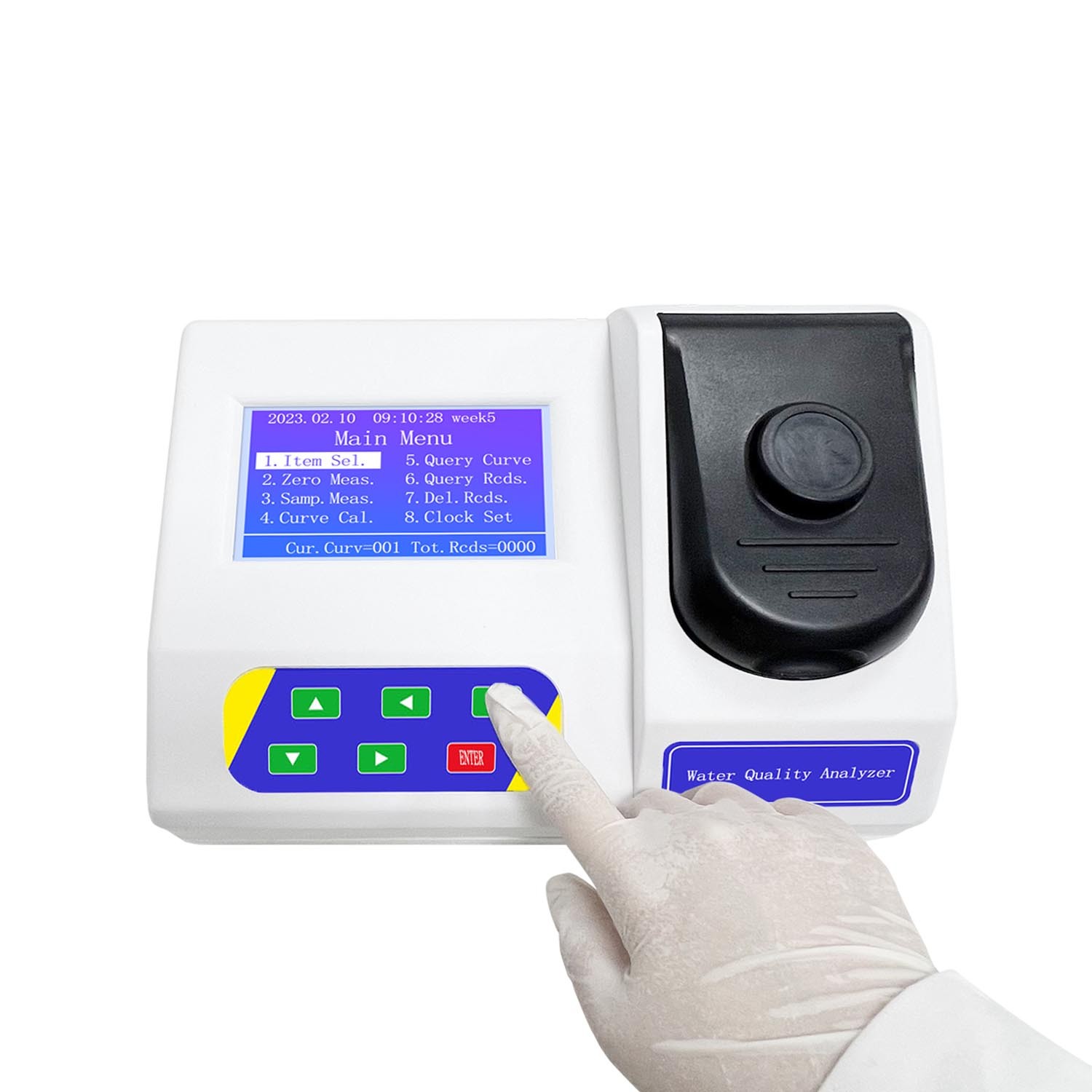

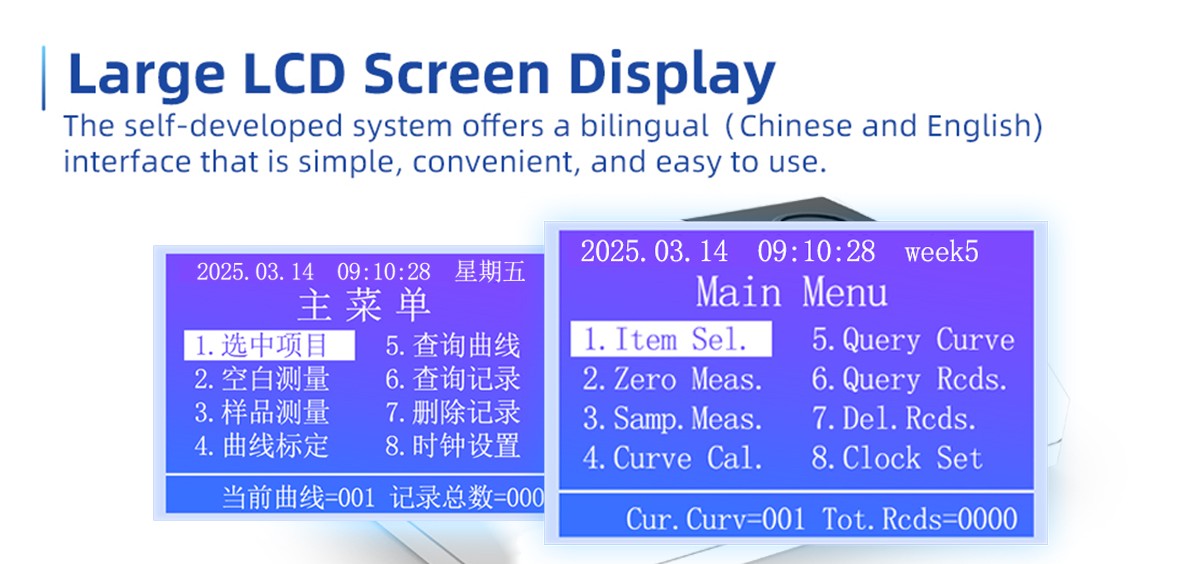

3.Large-screen LCD, allowing all settings, calibrations, and record operations to be performed within an integrated environment.
4.Employs V/F conversion, software redundancy, and software traps for strong anti-interference capability.
5.Capable of storing working curves and historical records, with user-defined calibration curves that are retained even when powered off.
6.Can store 150 factory curves and 1000 records, with data retention even when powered off.

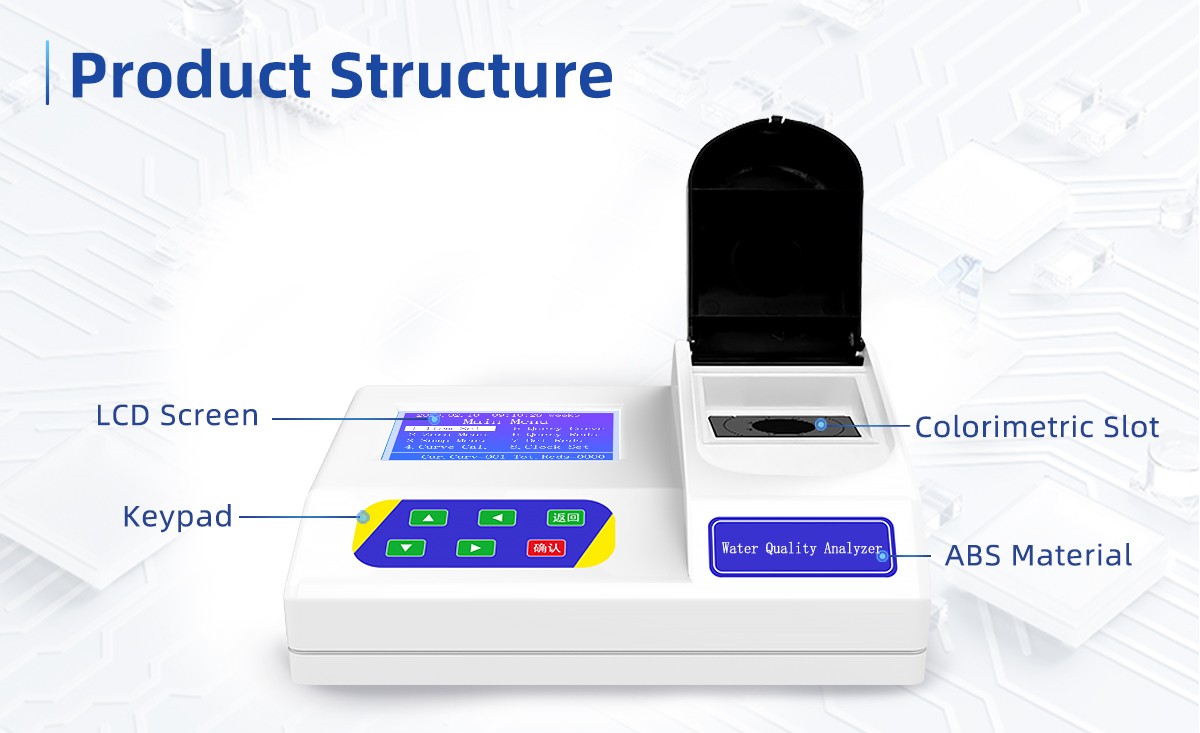

7.The main unit housing is made of post-molded ABS material, providing excellent corrosion resistance.
Packing List
Main unit: 1
Colorimetric tubes: 10 tubes
Reagents (configured according to selected parameters): 1 set each for common parameters (only provided for up to 10 parameters if there are more than 10)
Power cord: 1
User manual: 1
Certificate of conformity: 1
Warranty card: 1
