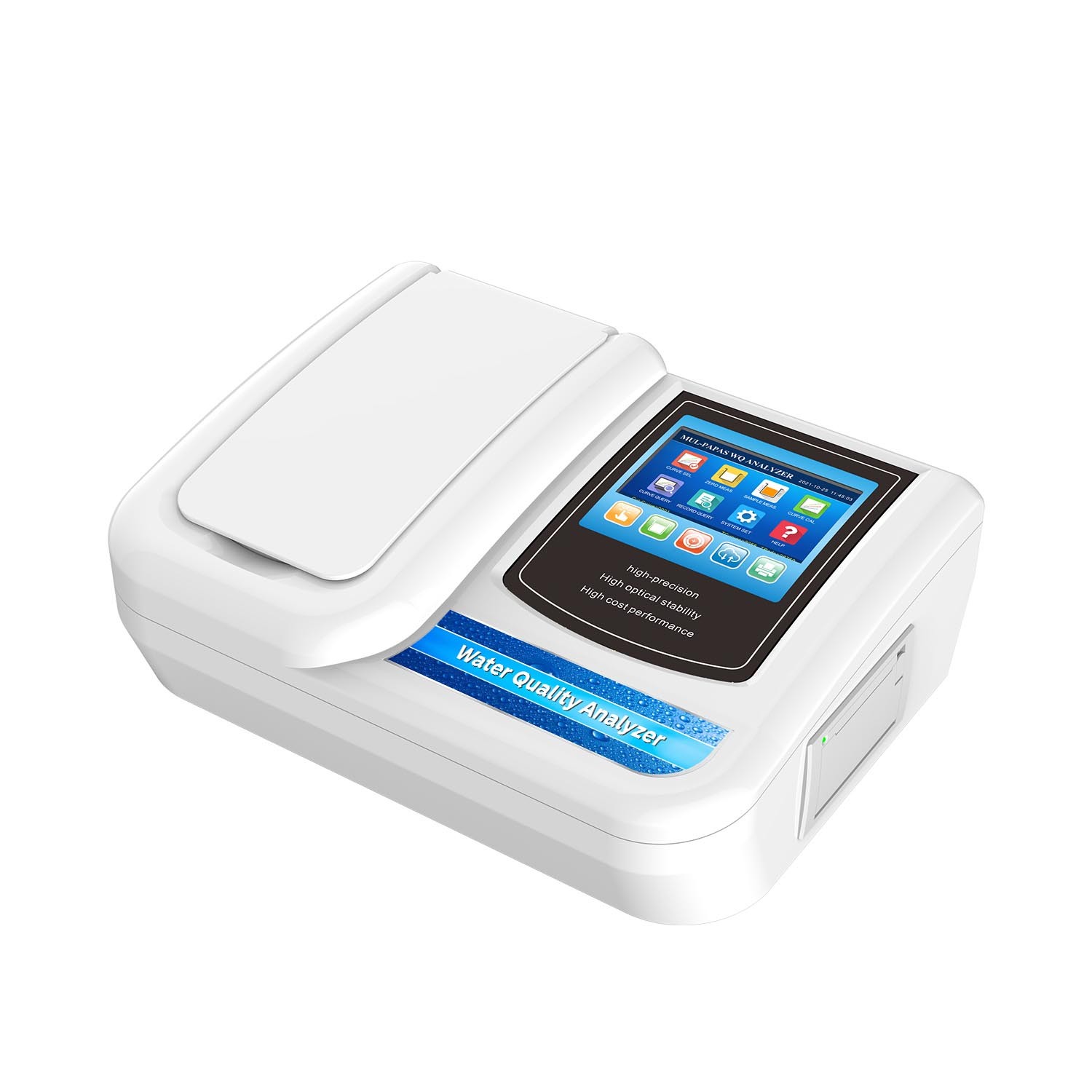

TWS-1600-Single-parameter Water Quality Analyzer

TWS-1600

[Product Overview]

The single-parameter water quality analyzer is a specialized instrument designed to measure specific parameters in water. It is widely used in environmental monitoring, water treatment, industrial production, agricultural irrigation, and scientific research. The core advantage of the single-parameter water quality analyzer lies in its focus and expertise. With a relatively simple structure, these instruments are easy to operate, making them accessible even to non-specialists. They can quickly and accurately provide water quality data, enabling users to promptly understand the water conditions and take appropriate actions.

[Application Area]

Product Details
Custom Matching



Technical Specifications



Measurement parameters

More than 80 parameters for selectionincluding COD/ammonia nitrogen/ total phosphorustotal nitrogencopperironnickelhexavalent chromiumphosphatenitritepH and residual chlorinecan be customized as required

Wavelength

340nm/ 420nm440nm470nm520nm540nm560nm610nm630nm660nm680nm and 700nm (Any wavelength within the above range can be customized; pH/ conductivity and dissolved oxygen can be selected as required)

Indication error

≤±5 %

Repeatability

≤±2%

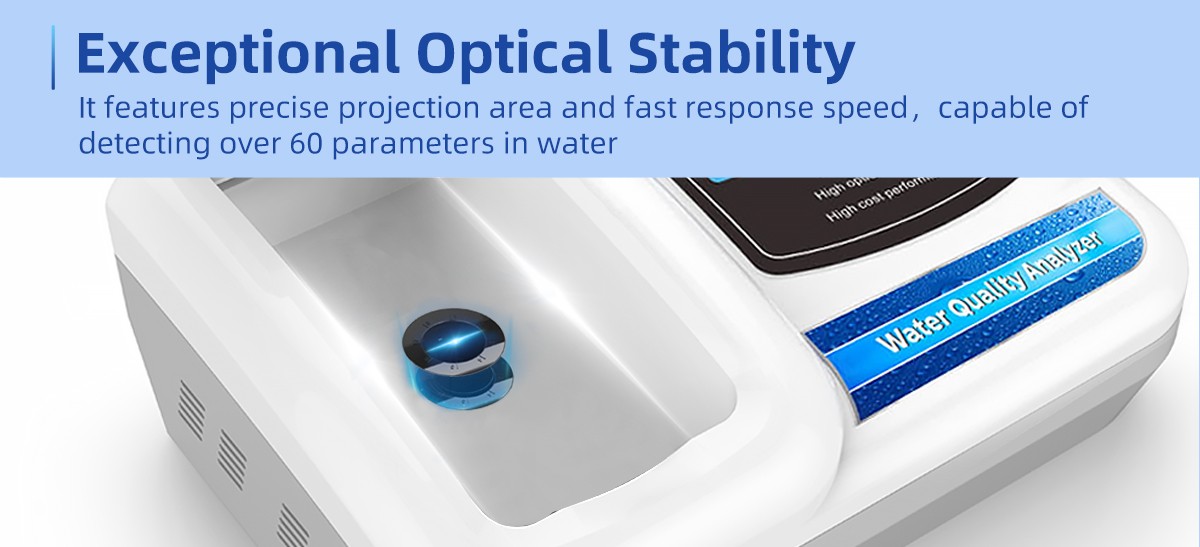

Optical stability

Absorbance drift ≤0 .002A/20min

Curve and Storage

200 factory calibration curves, 3500 user-defined curves; Can store 100,000 records.

Display

5 inch 800*480 color touchscreen

Printer

Built-in thermal printer

Dimension

387mm*292mm*134mm

Weight

2.6kg

Power consumption

30W

Data interface

USB

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight.



Measurement Parameters and Accuracy

 No.

Measurement item

Measuring range

Unit

Indication error

1

COD Cr

5-200/5-150

mg/L

5%

2

COD Cr

200-2000/150-2000

mg/L

5%

3

Ammonia nitrogen(Low range)

0.00-5.00

mg/L

3%(F.S)

4

Ammonia nitrogen(High range)

5.00-25.00

mg/L

3%(F.S)

5

Total phosphorus(Low range)

0.00-2.00

mg/L

5%(F.S)

6

Total phosphorus(High range)

2.00-10.00

mg/L

5%(F.S)

7

Total nitrogen(Low range)

0.00-10.00

mg/L

5%(F.S)

8

Total nitrogen(High range)

10.0-100.0

mg/L

5%(F.S)

9

CODMn(Permanganate index)

0.00-10.00

mg/L

0.2 or 5%

10

Residual chlorine(Low range)

0.00-2.00

mg/L

0.1 or 5%

11

Residual chlorine(High range)

2.0-10.0

mg/L

5%

12

Total chlorine(Low range)

0.00-2.00

mg/L

0.1 or 5%

13

Total chlorine(High range)

2.0-10.0

mg/L

5%

14

Chlorine dioxide(Low range)

0.00-2.00

mg/L

0.2 or 5%

15

Chlorine dioxide(High range)

2.0-20.0

mg/L

5%

16

Sulfate

0.0-200

mg/L

5%(F.S)

17

Nitrate(Nitrogen)

0.00-10.00

mg/L

0.1 or 5%

18

Phosphate(Low range)

0.00-10.0

mg/L

0.2 or 5%

19

Phosphate(High range)

10.0-50.0

mg/L

5%

20

Nitrite nitrogen(Low range)

0.00-1.00

mg/L

0.05 or 5%

21

Nitrite nitrogen(High range)

1.0-5.0

mg/L

5%

22

Sulfide

0.00-1.00

mg/L

5%(F.S)

23

Fluoride

0.00-10.0

mg/L

 5%(F.S)

24

Cyanide

0.00-0.50

mg/L

5%(F.S)

25

Bromide

0.00-5.00

mg/L

5%(F.S)

26

Formaldehyde

0.00-2.50

mg/L

5%(F.S)

27

Volatile phenol(Low range)

0.00-5.00

mg/L

5%(F.S)

28

Volatile phenol(High range)

5.0-10.0

mg/L

5%(F.S)

29

Hydrazine

0.00-0.50

mg/L

5%(F.S)

30

Aniline compound(Low range)

0.00-1.00

mg/L

5%(F.S)

31

Aniline compound(High range)

1.0-5.0

mg/L

5%(F.S)

32

Silicon dioxide

0.00-5.00

mg/L

5%(F.S)

33

Silicate

0.00-6.00

mg/L

5%(F.S)

34

Total alkalinity(Low range)

0-100

mg/L

5%(F.S)

35

Total alkalinity(High range)

100-1000

mg/L

5%(F.S)

36

Total hardness

0.00-500

mg/L

5%(F.S)

37

Chloride ion(Chloride)

0.00-100.0

mg/L

5%(F.S)

38

Ozone

0.00-2.50

mg/L

5%(F.S)

39

Anionic surfactant

0.00-1.00

mg/L

5%(F.S)

40

Ammonium ion(Low range)

0.00-2.50

mg/L

5%(F.S)

41

Ammonium ion(High range)

2.5-25.0

mg/L

5%(F.S)

42

Available chlorine

0.0-200

mg/L

5%(F.S)

43

Chlorite

0.00-20.0

mg/L

5%(F.S)

44

Cyanuric acid

0-200

mg/L

5%(F.S)

45

Urea

0.00-4.00

mg/L

5%(F.S)

46

Copper(Low range)

0.00-1.00

mg/L

5%(F.S)

47

Copper(High range)

1.0-10.0

mg/L

5%(F.S)

48

Zinc

0.00-5.00

mg/L

5%(F.S)

49

Nickel(Low range)

0.000-0.500

mg/L

5%(F.S)

50

Nickel(High range)

0.50-1.00

mg/L

5%(F.S)

51

Nickel

0.00-10.00

mg/L

5%(F.S)

52

Iron(Low range)

0.00-5.00

mg/L

5%(F.S)

53

Iron(High range)

5.0-10.0

mg/L

5%(F.S)

54

Ferrous(Low range)

0.00-5.00

mg/L

5%(F.S)

55

Ferrous(High range)

5.0-10.0

mg/L

5%(F.S)

56

Hexavalent chromium

0.00-1.00

mg/L

5%(F.S)

57

Cadmium

0.05-0.50

mg/L

5%(F.S)

58

Trace Manganese(Low range)

0.01-0.10

mg/L

5%(F.S)

59

Trace Manganese(High range)

0.10-1.00

mg/L

5%(F.S)

60

Manganese

0.00-5.00

mg/L

5%(F.S)

61

Total chromium

0.00-1.00

mg/L

5%(F.S)

62

Aluminum(Low range)

0.00-0.50

mg/L

5%(F.S)

63

Aluminum(High range)

0.5-5.0

mg/L

5%(F.S)

64

Silver

0.00-1.00

mg/L

5%(F.S)

65

Molybdenum

0.00-1.00

mg/L

5%(F.S)

66

Arsenic(Low range)

0.000-0.500

mg/L

5%(F.S)

67

Arsenic(High range)

0.50-5.00

mg/L

5%(F.S)

68

Beryllium

0.00-0.10

mg/L

5%(F.S)

69

Boron

0.00-2.00

mg/L

5%(F.S)

70

Mercury

0.000-0.500

mg/L

5%(F.S)

71

Lead

0.00-0.50

mg/L

5%(F.S)

72

Antimony

0.00-10.00

mg/L

5%(F.S)

73

Barium

0-100

mg/L

5%(F.S)

74

Color(Low range)

0-50.0

PCU

3%(F.S)

75

Color(High range)

50-500

PCU

3%(F.S)

76

Turbidity

0-400

NTU

≤2%(F.S)

77

Turbidity

0-1000

NTU

≤2%(F.S)

78

Suspended solids

0-1000

mg/L

≤2%(F.S)

79

pH(Colorimetric method)

5.00-8.00

PH

0.1±0.1pH

80

pH(Electrode method)

0.00-14.00

PH

±0.1pH

81

Dissolved oxygen (Colorimetric method)

0.0-10.0

mg/L

0.1±5%

82

Dissolved oxygen (Electrode method)

0-20.0

mg/L

±0.2

83

Conductivity(Electrode method)

0.00µs/cm-199.9ms/cm

ms/cm

±1.0% (F.S)

84

TDS (Electrode method)

0.0mg/L~199.9g/L

g/L

±0.5% (F.S)

85

Salinity (Electrode method)

0-10000mg/L

mg/L

±1.0% (F.S)

86

ORP (Electrode method)

±2000mV

mV

  ±0.1%(F.S)





Functional Features



    Can detect concentrations, absorbance, and transmittance of nearly a hundred parameters in water quality, and can store, print, query, and upload concentration values to a computer.


    Measurement wavelength can be selected.


    Can store 200 factory curves, add 3000 user curves, and save 99,999 data records, with data retention even when powered off.


    Instrument measurement methods can be selected as linear or piecewise methods. Choosing the piecewise method allows for more accurate measurement of

parameters with less linear characteristics.


    Has a one-key restore function to recover factory and user curve data records in case of accidental loss.


    The instrument backs up user-calibrated curves and data records. In case of accidental loss, recovery operations can be performed.

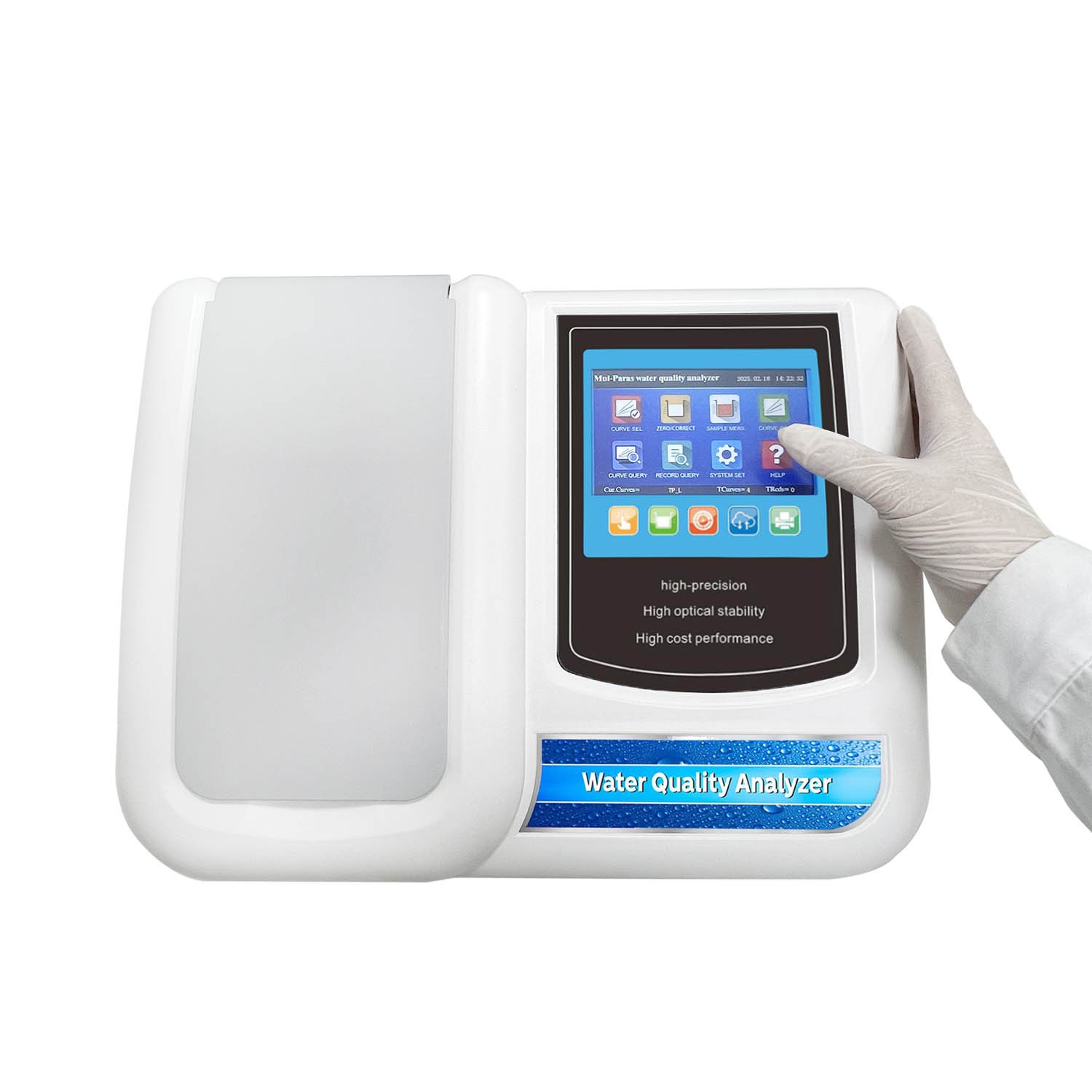

    Features a large-screen color touch screen with a user-friendly interface, including operational guides to explain various functions.


    Light intensity is adjustable in 16 levels, freely configurable to effectively address measurement range expansion issues caused by signal strength.


    Can store up to 100,000 records (including parameter names, concentration, units, detection time, operator ID, etc.). During record queries, single-item or page printing can be performed.


    Allows for curve queries, including not only curve equations but also standard values of each standard substance used during calibration, corresponding absorbance values,

calibration time, and calibration operator ID, fully reproducing the state during calibration.


    The instrument has various safety measures, with startup and system setting requiring password input to prevent incorrect operation by unauthorized personnel.


    The system features bilingual functionality, allowing switching between Chinese and English.


    Equipped with a USB port for data collection to a computer.




Packing List



Main Unit: 1 unit

Reagents: 1 set

Colorimetric tubes: 3 tubes (Ф25mm/Ф16mm)

USB Cable: 1 piece

Electrode (configured according to selected parameters): 1 pH composite electrode/ 1 conductivity electrode/1 dissolved oxygen electrode/1 temperature electrode

User Manual: 1 copy

Product Certificate: 1 certificate

Warranty Card: 1 card
