Shen ChangHong
Product Details
Custom Matching
Technical Specifications
Measuring item | Value | |
mV | Measuring range | 0 ~ ±2000mV |
Accuracy | 0.1mV | |
Indication error | ±0.1%(F.S) | |
pH | Measuring range | 0.00 ~14.00pH |
Accuracy | 0.01pH | |
Indication error | ±0.03 pH | |
pH calibration temperature range | 0 ~99.9℃ | |
Temperature | Measuring range | 0 ~99.9℃ |
Accuracy | 0.1℃ | |
Indication error | ±1.0℃ | |
Temperature compensation range | 0 ~99.9℃ | |
Testing standard | HJ 1147-2020 | |
Analytical method | Electrochemical method | |
Electrode | pH composite electrode and temperature electrode | |
Input impedance | ≥1×1012Ω | |
Data storage | Can store 999 set of data records | |
Charging/Data interface | Type C | |
Display | 2.4 inch 240*160 LCD | |
Dimension | 185mm×92mm×50mm | |
Weight | About 0.55kg | |
Working environment | (1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: Rechargeable lithium battery or AC (220±22)V (50±0.5) Hz (4) No significant vibration and electromagnetic interference, avoid direct sunlight. | |
Functional Features
Measurement process controlled by MCU, with digital filtering technology to enhance system reliability.
Manual and automatic temperature compensation, using digital temperature compensation technology to eliminate non-linear factors in temperature compensation.
Three-point calibration function.
Simultaneous measurement of pH or mV and temperature.
During calibration, only the nominal value of the buffer solution at 25°C needs to be entered, and the instrument automatically identifies and compensates for temperature.
High-performance, ultra-low-power 16-bit microcontroller with high-capacity rechargeable lithium battery.
Data protection against power loss ensures data is not lost, with storage capacity for 999 data sets with time tags.
Auto-lock mode: The display automatically locks onto stable readings.
Type-C port for data transfer to a computer.

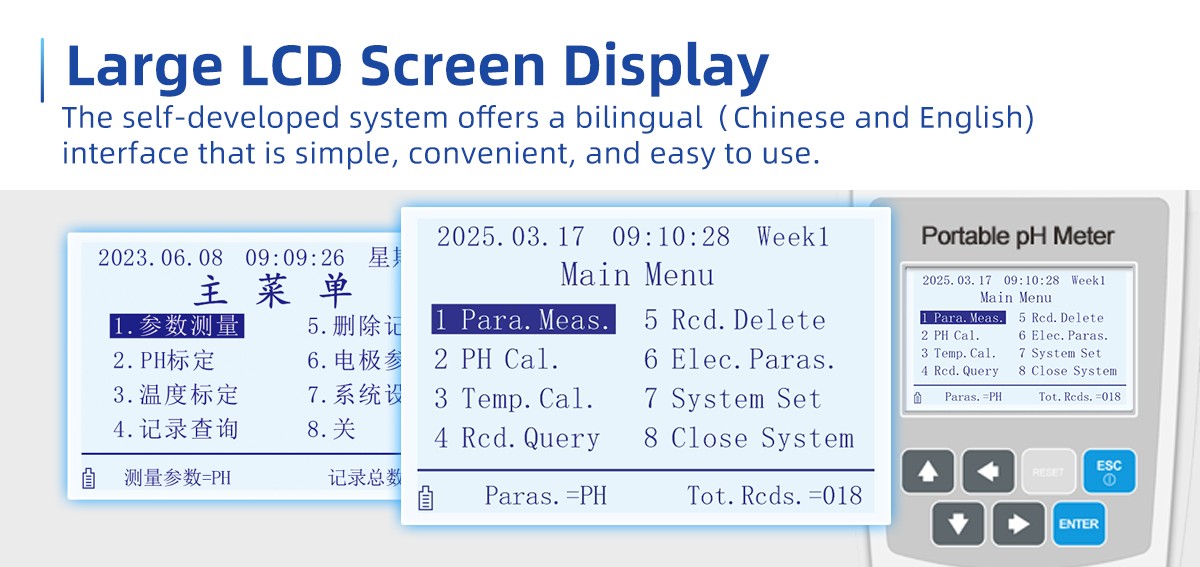

Large LCD screen with Chinese character menu display for convenient and intuitive operation.
The instrument has good corrosion resistance, waterproofing, and dustproofing.
Packing List
Main Unit: 1 unit

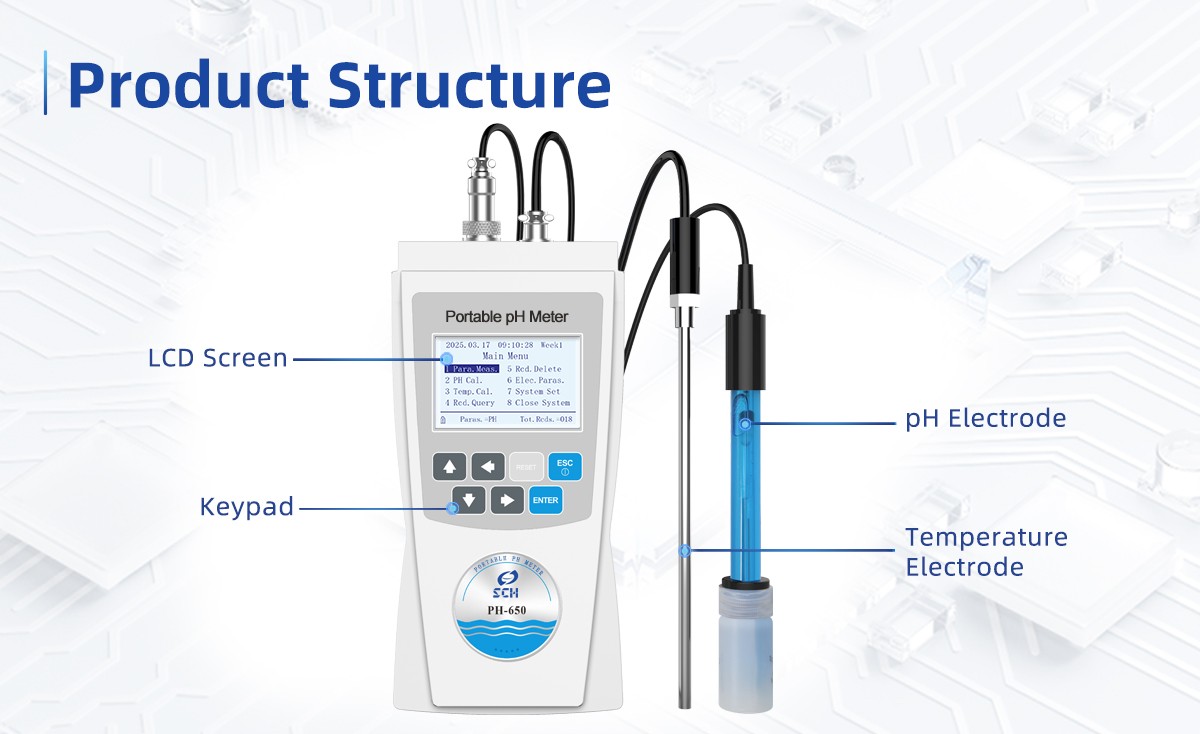

pH Electrode: 1 pH electrode, 1 temperature electrode
Reagent: 1 set of pH calibration solution
5V2A Charger: 1 piece
Carrying case: 1 case
User Manual: 1 copy
Product Certificate: 1 certificate
Warranty Card: 1 card
