Technical Specifications
Measuring item | Value | |
Conductivity | Measuring range | 0.0uS/cm～100.0mS/cm |
Accuracy | 0.1uS/cm | |
Indication error | ±1.0% (F.S) | |
TDS | Measuring range | 0.0mg/L～64000.0mg/L |
Accuracy | 0.1mg/L | |
Indication error | ±0.5% (F.S) | |
Salinity | Measuring range | 0mg/L～5000mg/L |
Accuracy | 0.1mg/L | |
Indication error | ±1.0% (F.S) | |
Temperature | Measuring range | 0℃ ~50.0℃ |
Accuracy | 0.1℃ | |
Indication error | ±0.5℃ | |
Testing standard | GB/T 13580.3-1992 | |
Analytical method | Electrochemical method | |
Electrode | High precision industrial grade conductive electrode | |
Input impedance | ≥1×1012Ω | |
Display | 2.4inch 240*160 LCD | |
Data storage | Can store 300 set of data records | |
Charging/Data interface | Type C | |
Dimension | 185mm×92mm×50mm | |
Weight | About 0.55kg | |
Working environment | (1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: Rechargeable lithium battery or AC (220±22)V (50±0.5) Hz (4) No significant vibration and electromagnetic interference, avoid direct sunlight. | |
Functional Features

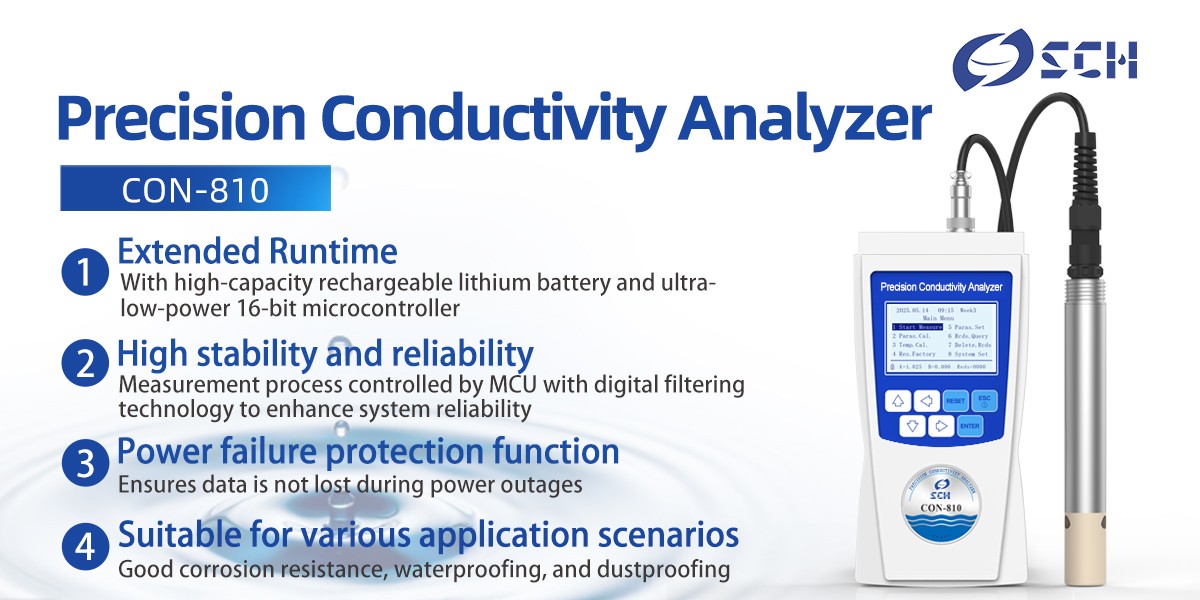

The measurement process is controlled by a microcontroller unit (MCU) with digital filtering technology to enhance system reliability.
Simultaneous measurement of conductivity and temperature for efficient reading.
Equipped with a high-performance, ultra-low-power microcontroller and a high-capacity rechargeable lithium battery to ensure extended instrument runtime.
Data protection against blackout condition ensures that data is not lost during a power outage.
Storage capacity for 999 data sets with time tags, supporting data protection during power loss and data transfer to a computer for easy record-keeping and analysis.
Auto-lock mode: The display automatically locks onto stable readings.

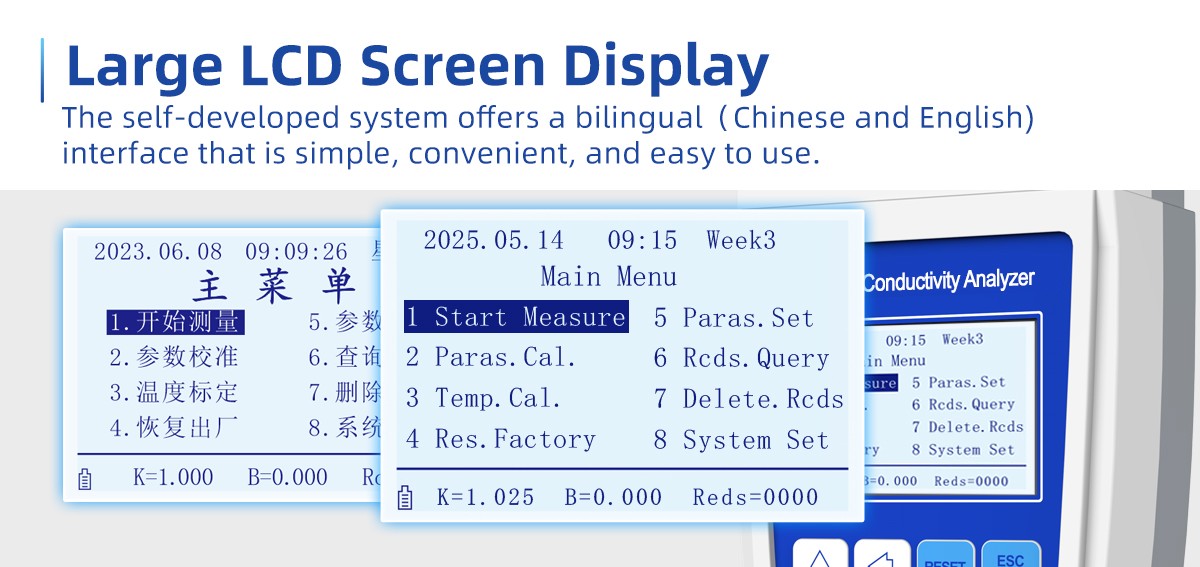

Equipped with an LCD large screen display for intuitive and convenient operation, supporting one-handed operation and suitable for various usage scenarios.
The instrument is designed with corrosion resistance, waterproofing, and dustproofing to adapt to a variety of harsh environments.
Packing List
Main Unit: 1 unit
Electrode: 1 conductivity electrode
5V2A Charger: 1 piece
Type C cable: 1 piece
Carrying case: 1 case
User Manual: 1 copy
Product Certificate: 1 certificate
Warranty Card: 1 card
