Product Details
Custom Matching
Technical Specifications
Measuring range | 0～400NTU (3 ranges: 0-10; 10-100; 100-400NTU; Dilute if excess the measuring range) |
Measuring accuracy | 0.01NTU |
Indication error | ≤±2 % |
Repeatability | ≤±2% |
Optical stability | Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours |
Testing standard | GB 13200-91 GB/T 5750.4-2023 （HJ 1075-2019 selectable） |
Analytical method | Light scattering method（Cuvettes） |
Curve and Storage | 200 factory calibration curves, 3500 user-defined curves; Can store 100,000 records. |
Display | 5 inch 800*480 color touchscreen |
Printer | Built-in thermal printer |
Power consumption | 30W |
Dimension | 387mm*292mm*134mm |
Weight | 2.6kg |
Data interface | USB |
Working environment | (1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight. |
Functional Features
The analyzer features a cold light source and a narrow-band interference optical system, providing excellent optical stability.

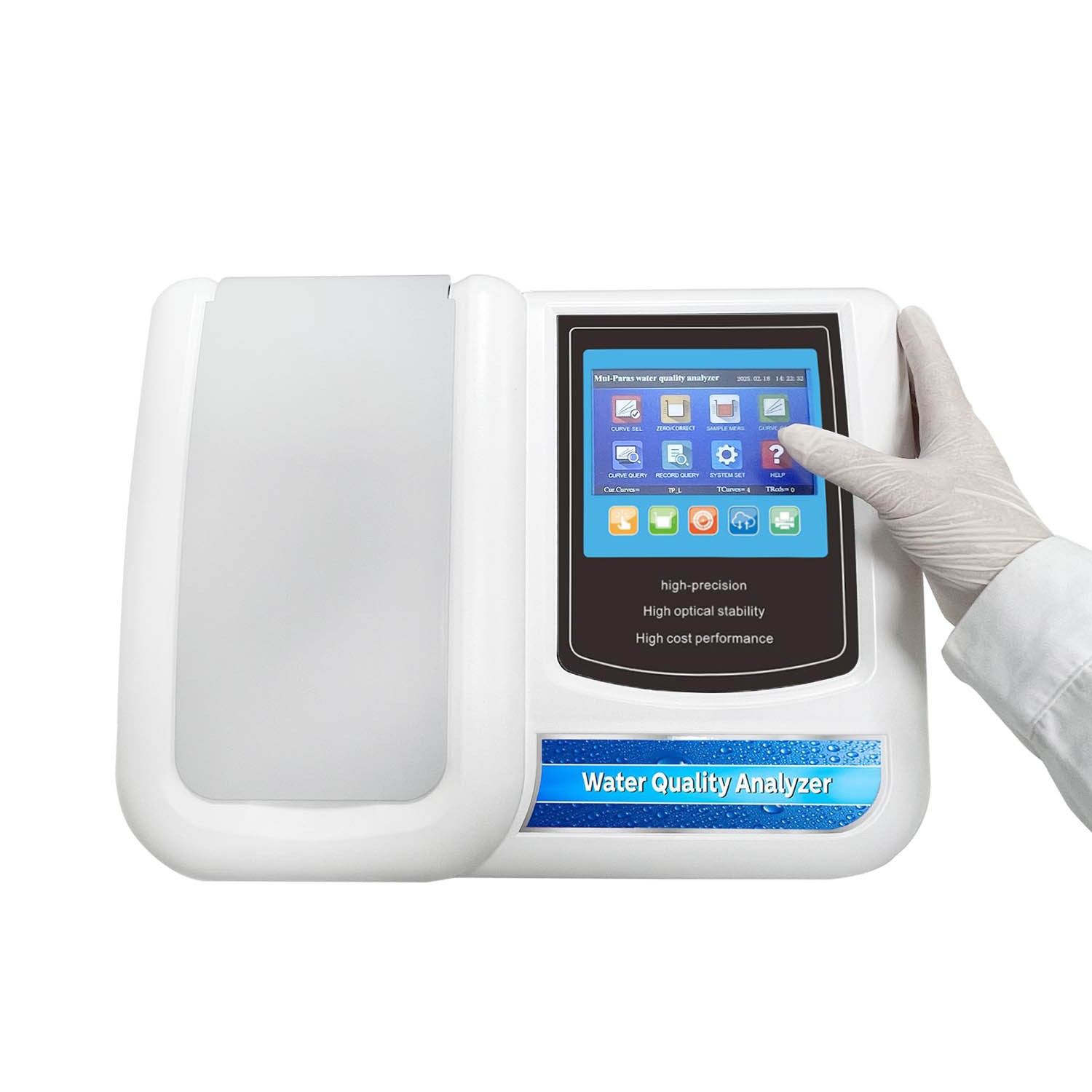

The main unit is equipped with a color touchscreen, offering a user-friendly interface in both English and Chinese. An integrated operation guide provides detailed explanations for various functions.
The analyzer supports curve queries; in addition to retrieving the curve equation, users can access the standard values and corresponding absorbance for each calibration standard, along with calibration timestamps and operator IDs, fully replicating the calibration conditions.
In addition to the 200 factory-set calibration curves, users can add and store up to 3,000 custom curves within the instrument.
Storage capacity reaches 100,000 records, including parameter names, concentrations, units, detection times, and operator IDs.
The analyzer also features a printing function, allowing immediate printing of test records or retrieval of previously printed records.

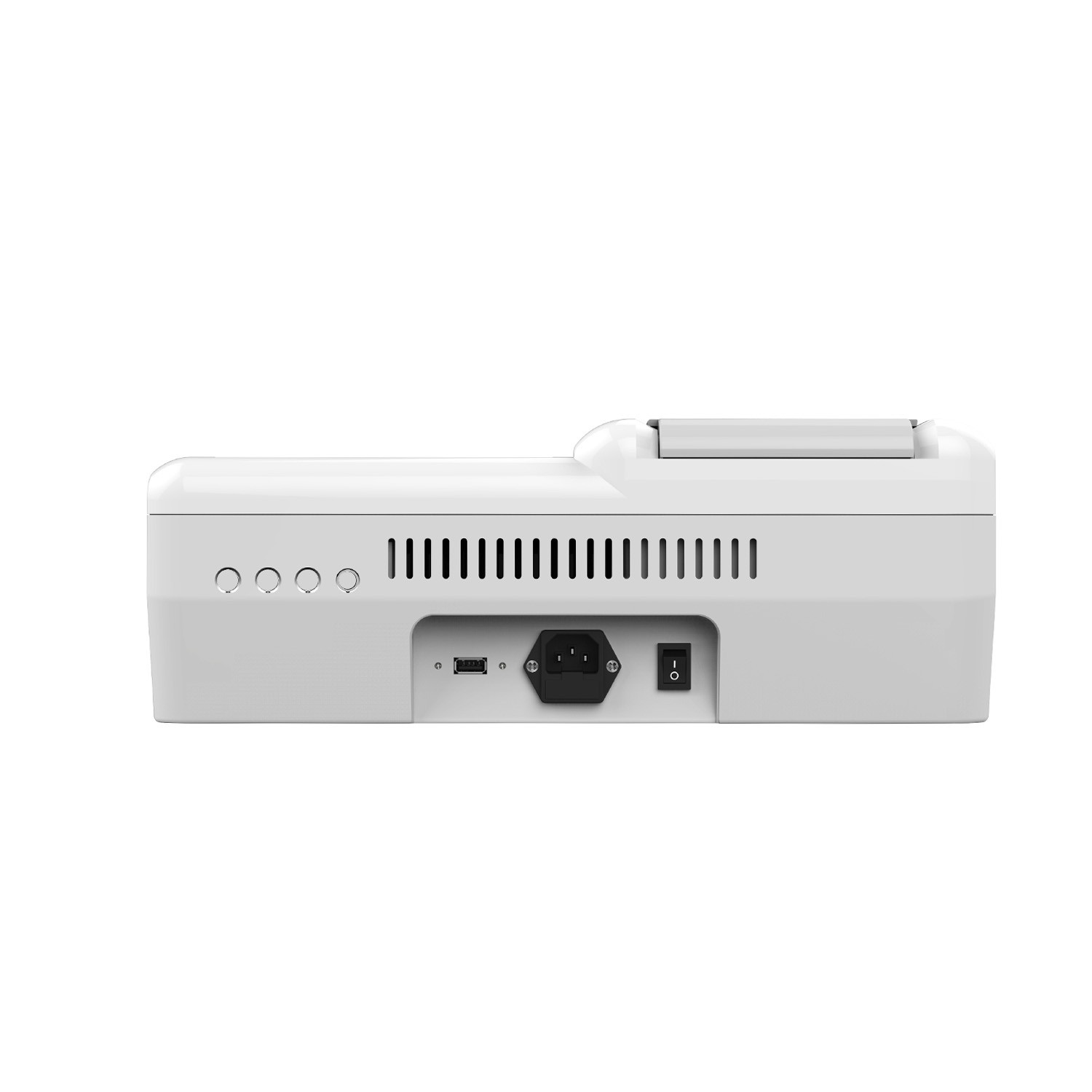

A USB interface enables connection to a computer for easy data transfer.
Packing List
Main Unit: 1 piece
Colorimetric cuvette: 2 cuvettes (70*50*25mm)
Light-Blocking Cover: 1 unit
USB cable: 1 piece
Manual: 1 copy
Certificate of Conformity: 1 copy
Warranty Card: 1 copy
