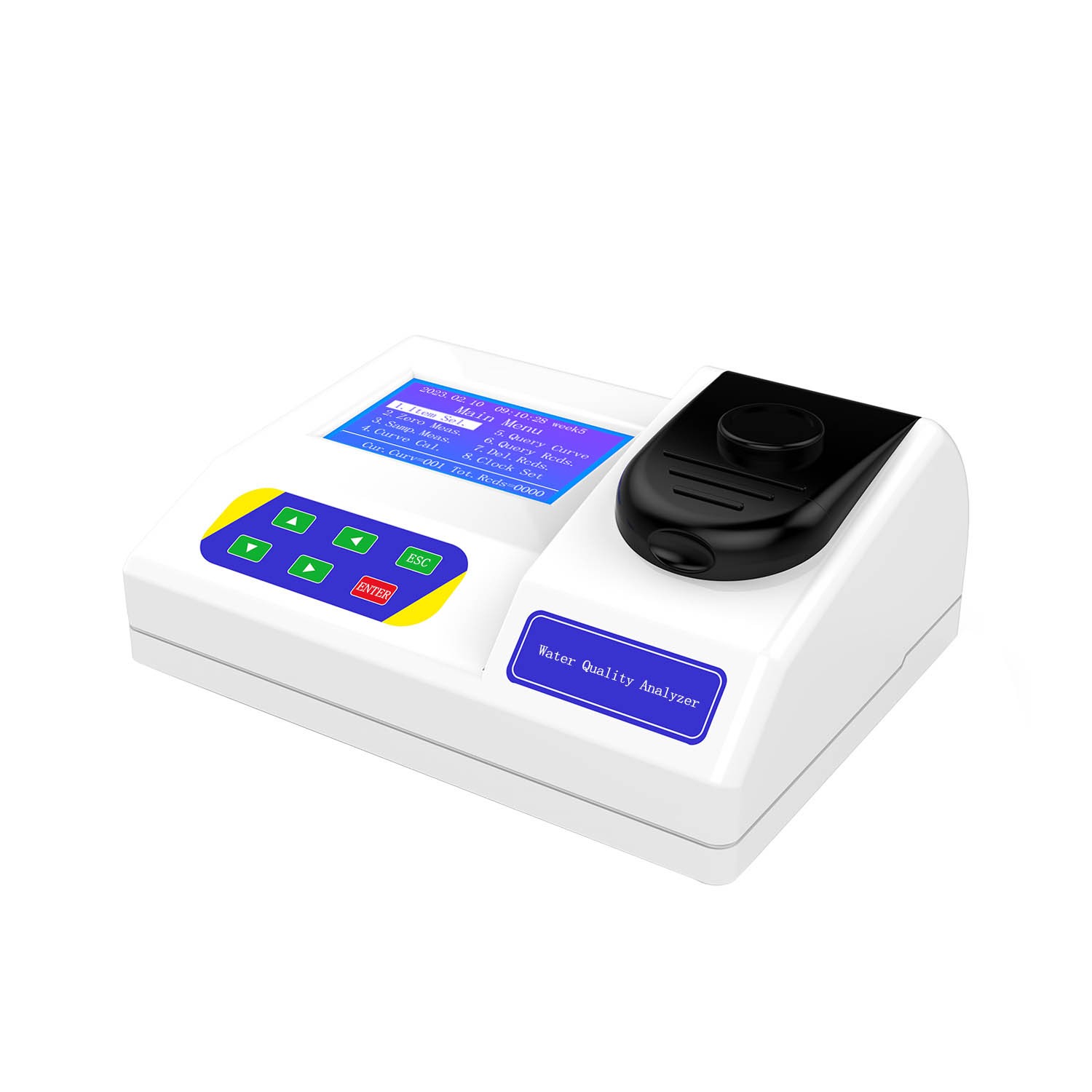

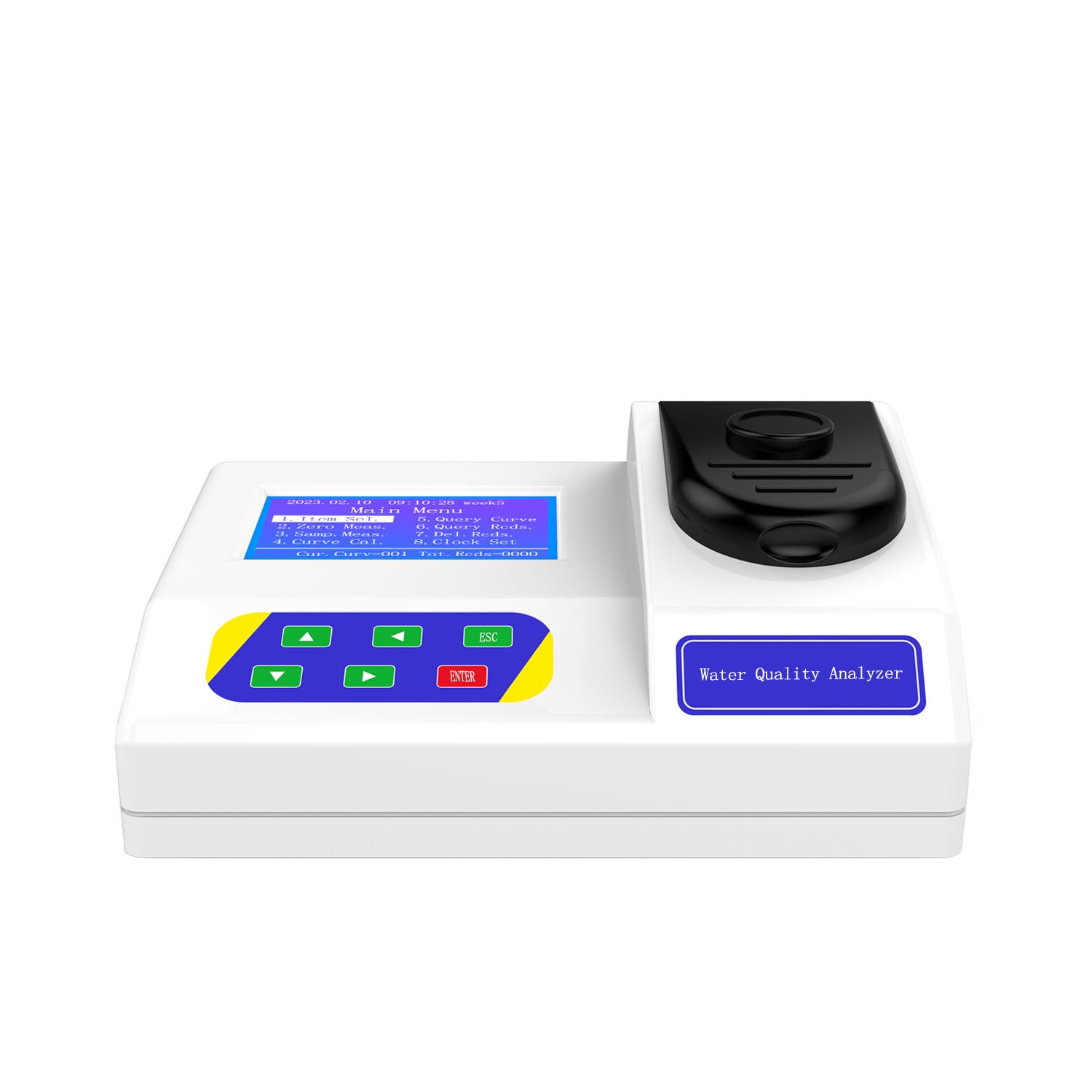

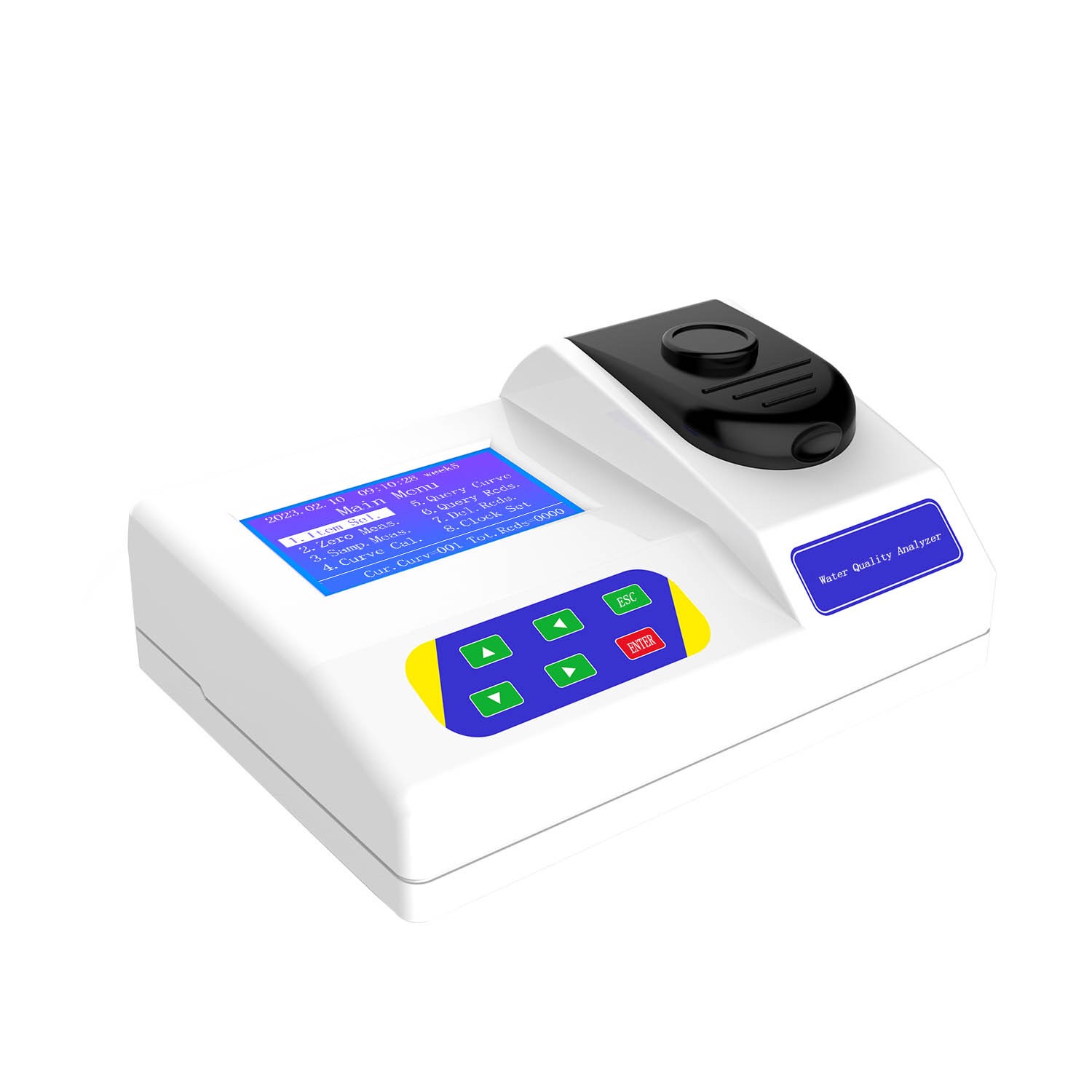

LTURB-3B-Precise Turbidity Meter

LTURB-3B

[Product Overview]

The turbidity meter is an instrument used to measure the degree to which suspended particles in water obstruct the passage of light. Based on the principle of light scattering, this instrument determines turbidity by measuring the intensity of scattered light in the liquid. It can quickly and accurately measure the turbidity of water and display the results in numerical form. The instrument is widely used in municipal water supply, wastewater treatment, environmental monitoring, industrial production, food and beverage, pharmaceuticals, and other fields.

[Application Area]

Aapplicable to large, medium, small water plants and industrial and mining enterprises
Product Details
Custom Matching

Technical Specifications

Measuring range

0~1000NTU (4 ranges: 0-10; 10-100; 100-400400-1000NTU; Dilute if excess the measuring range)

Measuring accuracy

0.01NTU

Indication error

≤±2 %

Repeatability

±3%

Optical stability

Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours

Testing standard

GB 13200-91    GB/T 5750.4-2023 HJ 1075-2019 selectable)

Analytical method

Light scattering methodCuvettes)

Curve and Storage

150 factory calibration curves, 20 user-defined curves; Can store 1,000 records.

Display

5-inch LCD screen with a 240*128 pixel matrix

Power consumption

15W

Dimension

273mm*201mm*129mm

Weight

1.15kg

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight.





Functional Features



    Utilizes cold light and monochromatic light sources, ensuring exceptional optical stability without interference from various light sources.


    Simple operation with high measurement accuracy, meeting the latest discharge standards.

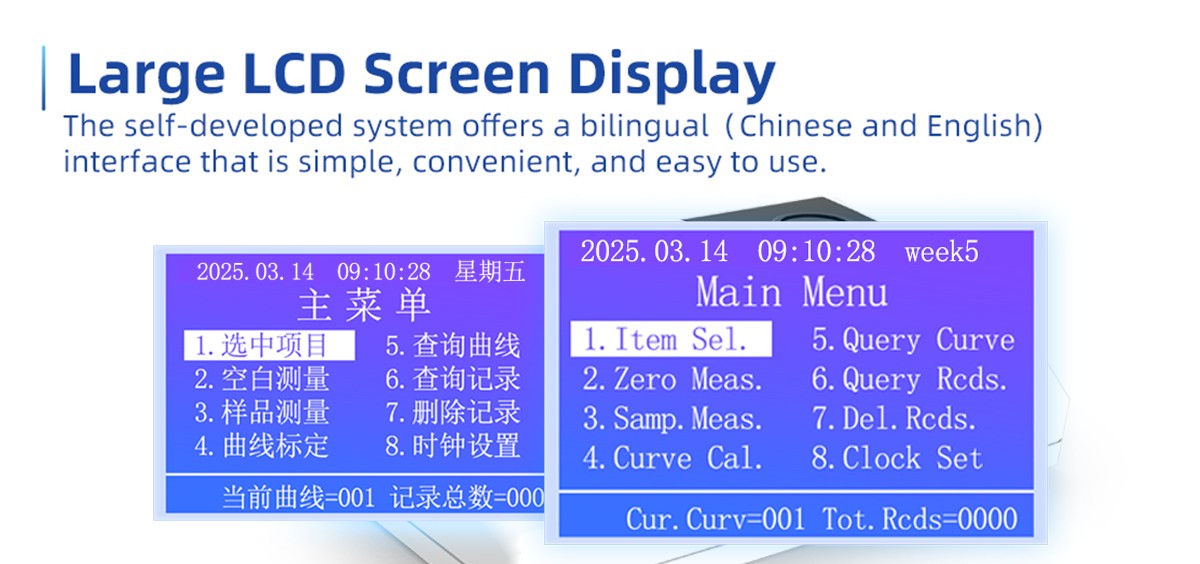

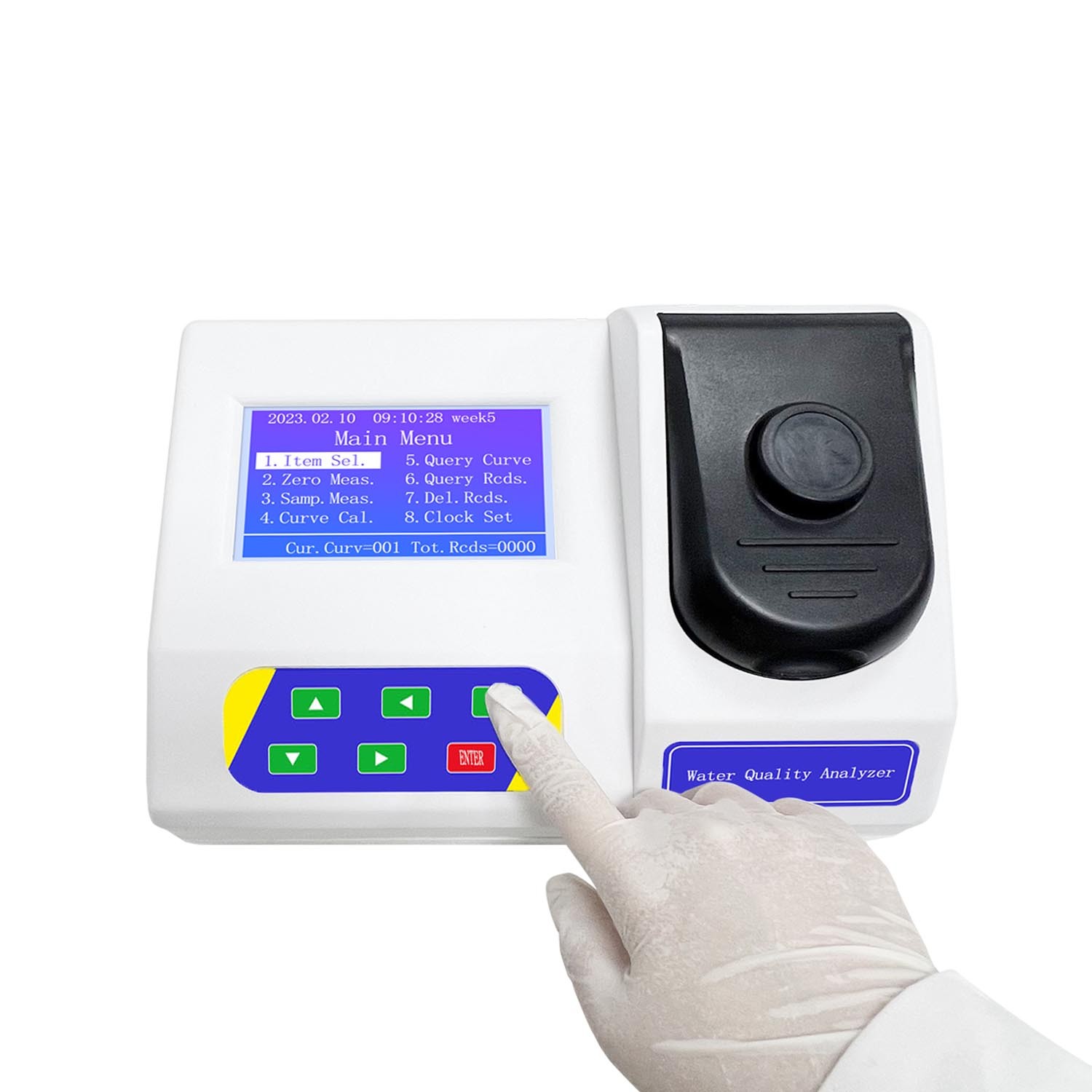

    Large LCD screen; all settings, calibration, and record operations are performed within the integrated environment.


    Strong anti-interference capabilities using V/F conversion, software redundancy, and software traps.


    Can store working curves and historical records; users can calibrate and store their own curves, with data retention even during power outages.


    Can store 150 factory curves and 1000 records, with data retention even when powered off.

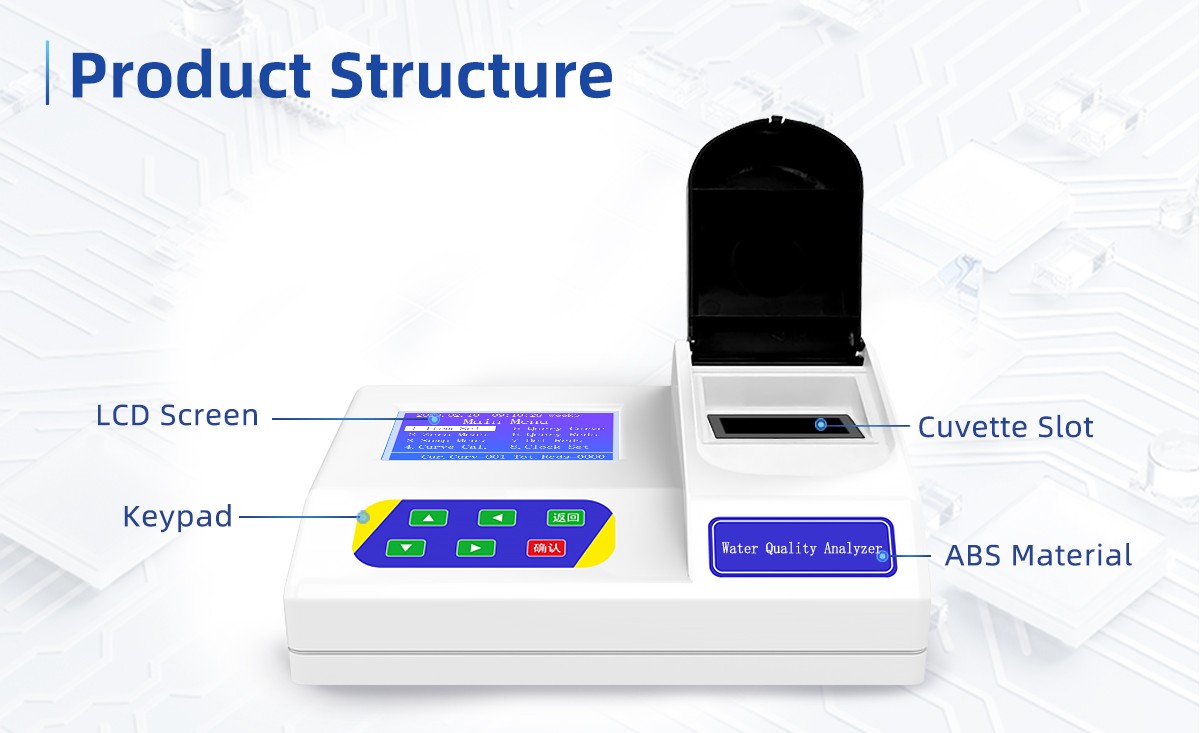

    The main unit casing is made of post-mold ABS material, offering excellent corrosion resistance.



Packing List



Main Unit: 1 piece

Colorimetric cuvette: 2 cuvettes (70*50*25mm)

Power cord: 1 piece

Manual: 1 copy

Certificate of Conformity: 1 copy

Warranty Card: 1 copy
