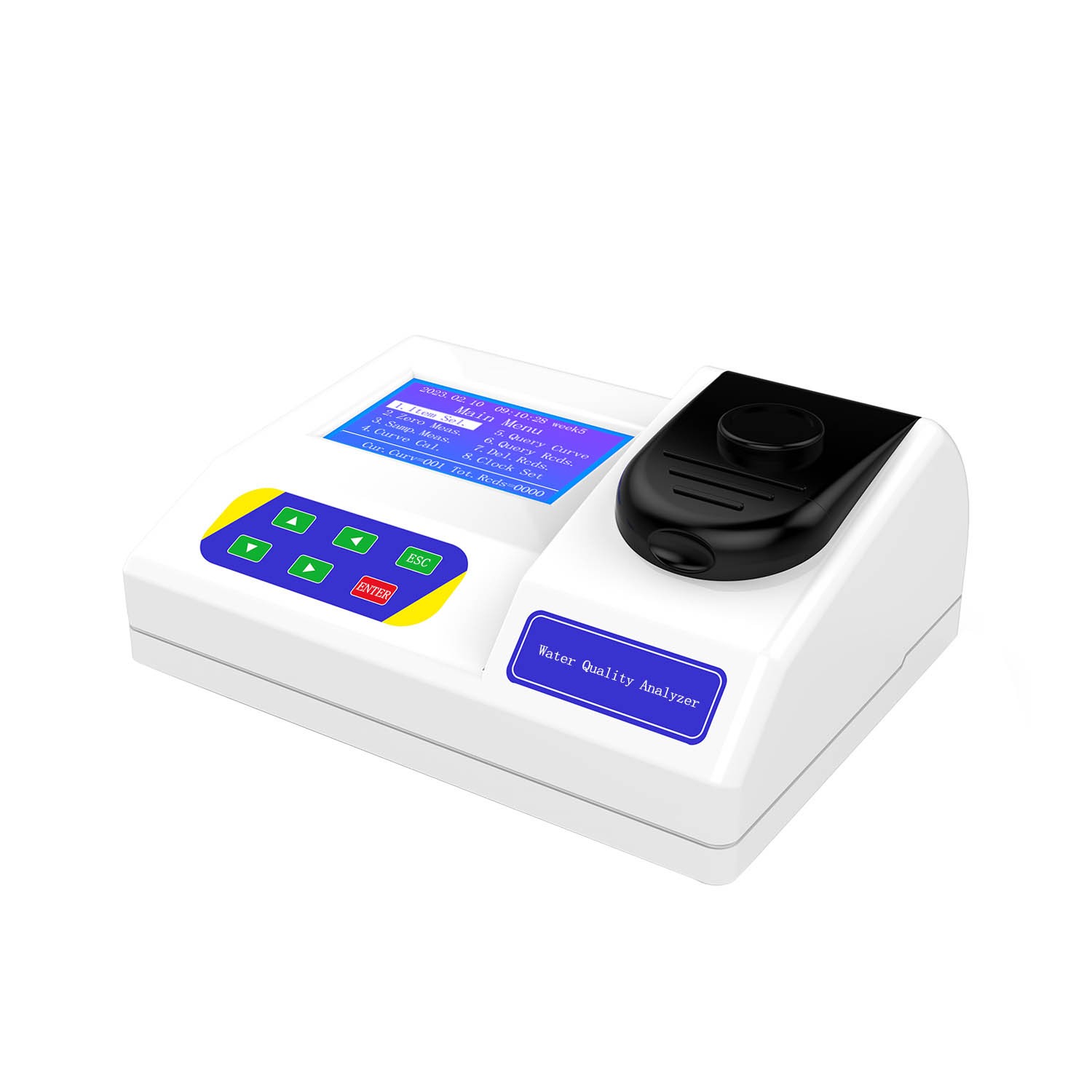

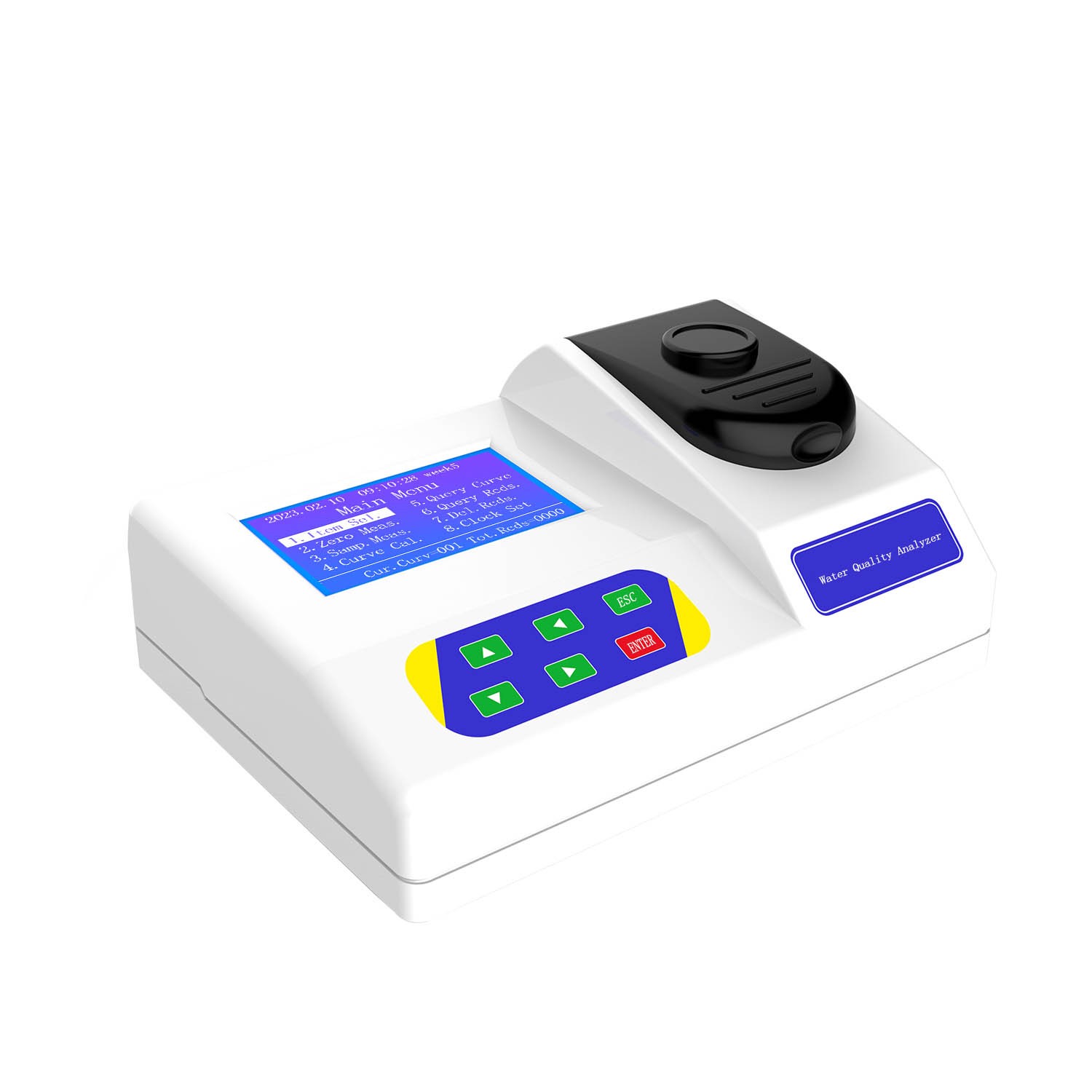

Water alkalinity analyzer (desktop)

CHTA-211

[Product Overview]

The instrument uses the optical method to automatically process the data using a microcomputer to directly display the concentration value of the water sample.

[Application Area]

The instrument is widely used for the determination of total alkalinity in domestic water, drinking water, surface water and wastewater.
Product Details
Custom Matching



product description


The total alkalinity refers to the total amount of substances in the water that can neutralize the strong acid, that is, the total amount of substances that can accept proton H+. The instrument uses the optical method to automatically process the data using a microcomputer to directly display the concentration value of the water sample. The instrument is widely used for the determination of total alkalinity in domestic water, drinking water, surface water and wastewater.


technical parameter


【Host】
the measurement range: 0.00 ~ 1000.0mg / L, more than the dilution determination Indication error:  ≤±5%
repeatability: ≤3% optical stability: ≤ 0.002A / 20min
external dimensions:  host 266mm × 200mm × 130mm power consumption:   30W
weight:   less than 1kg


Features


1. It adopts imported high-performance, long-life (100,000 hours), high-brightness light source, and narrow-band filter system. It has strong optical stability and is not easily interfered by various kinds of light. Therefore, the instrument has high precision and good stability.

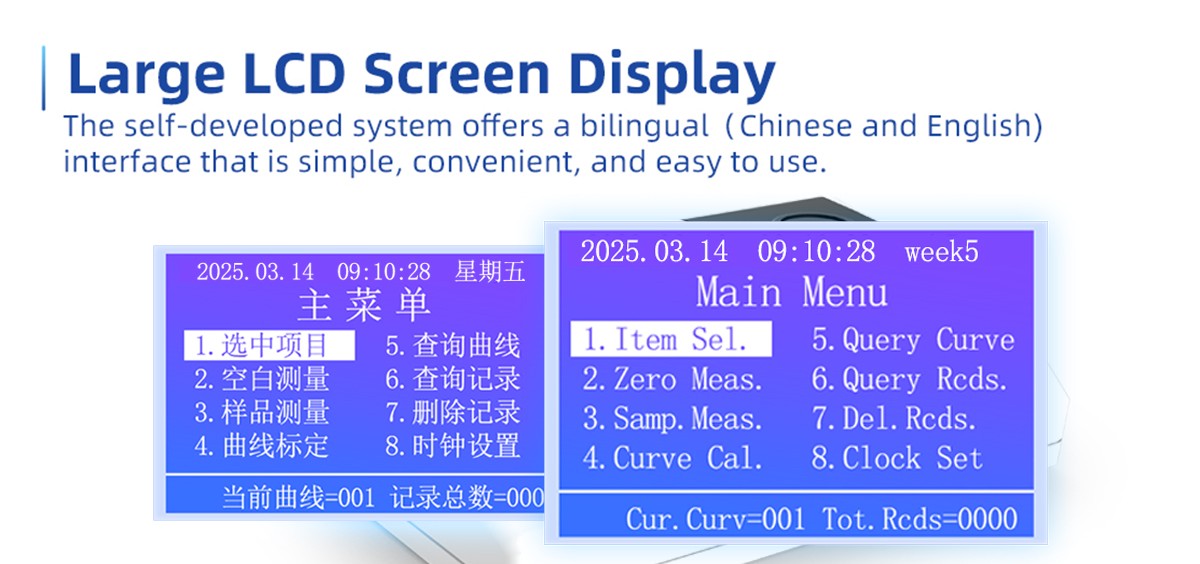

2, large screen LCD Chinese display, Chinese menu operation, simple and intuitive.

3. The measurement data can be permanently saved. In addition to the factory calibration curve, the working curve is left with the user's own calibration curve.

4. The main machine casing adopts ABS material after molding, which has good corrosion resistance.

5, using high-performance, low-power 16-bit single-chip system, the performance is excellent.

6. More than ten years of experience in the production of water quality monitoring instruments to ensure the quality of the products.


Product configuration list


Name quantity Name quantity
Host 1 3 colorimetric tubes
Reagent 1 set 1 power cord
1 manual 1 warranty card
1 Certificate
