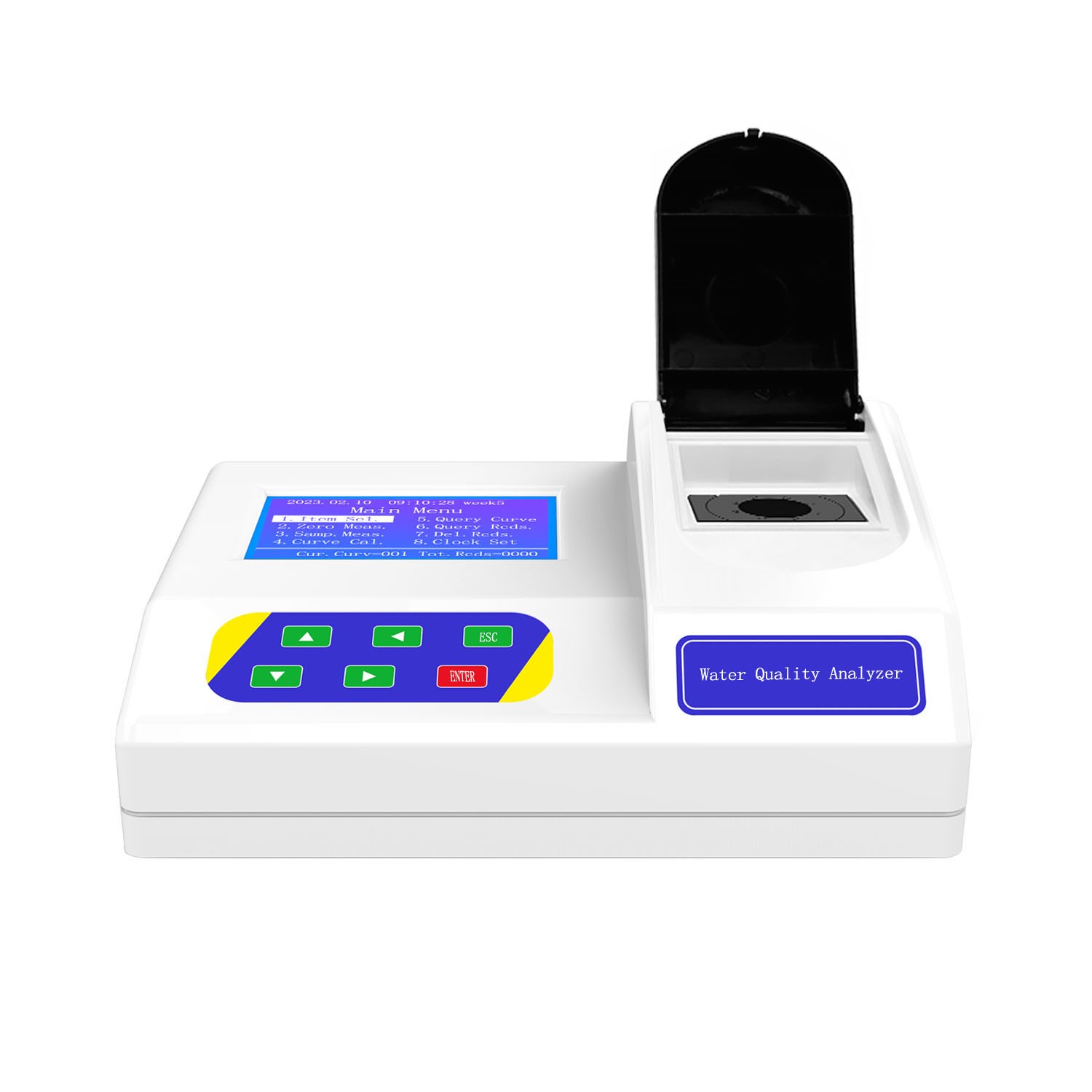

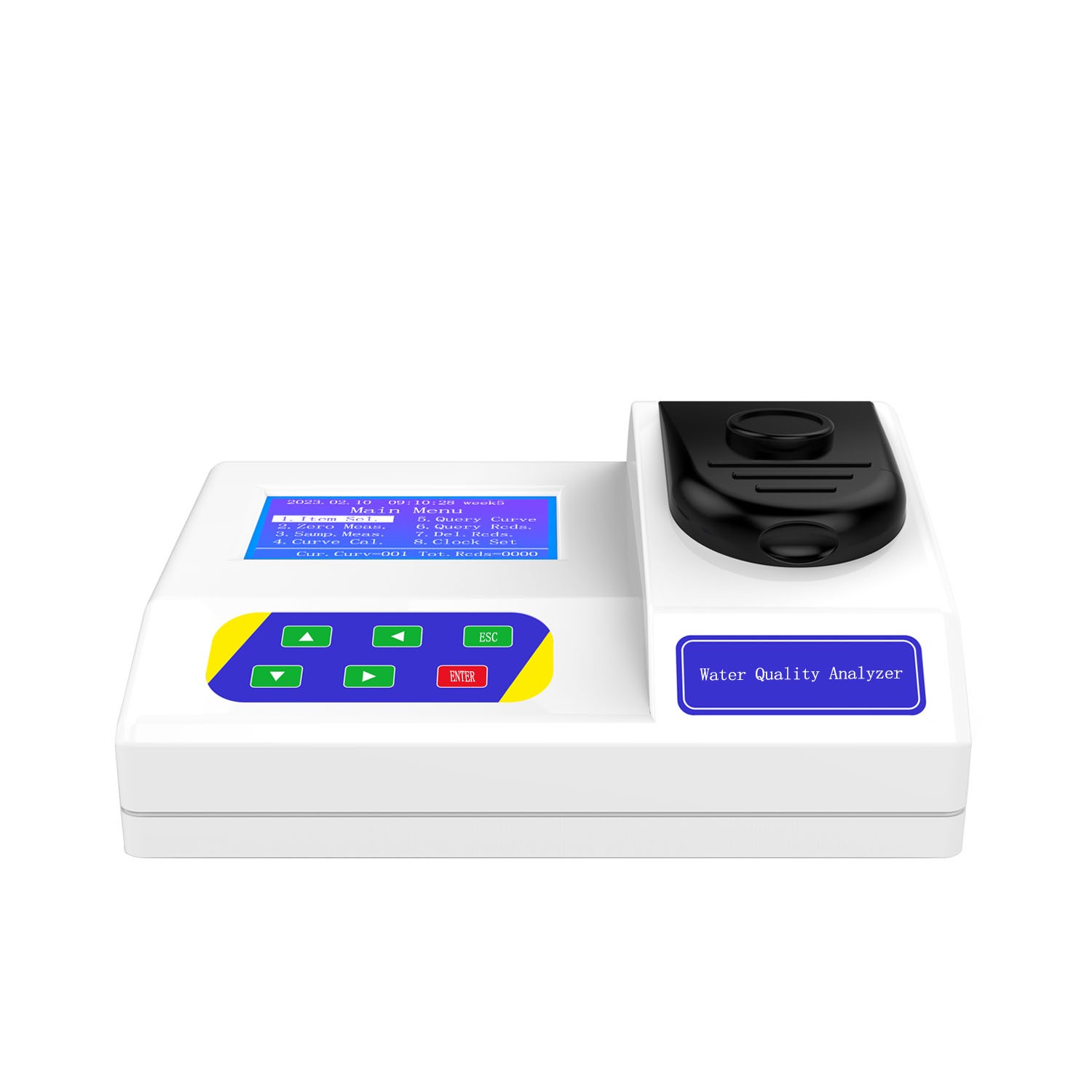

CHCM-210- Total Hardness Meter

CHCM-210

[Product Overview]

Total hardness refers to the combined concentration of calcium, magnesium, and other metal ions in water, serving as a crucial indicator of water quality. The total hardness meter employs specific reagents that react with calcium and magnesium ions to form colored compounds. These compounds are then quantified by measuring their absorbance using a photometer. This method allows for the determination of total hardness in various types of water, including natural water bodies, drinking water, industrial water, and wastewater, ensuring compliance with relevant standards.

[Application Area]

Widely used in drinking water, groundwater, surface water, municipal sewage, industrial sewage, environmental monitoring, colleges and universities, scientific research institutions and other fields water measurements.
Product Details
Custom Matching


Technical Specifications

Measuring range

0.00-500mg/L (Dilute if excess measuring range)

Measuring accuracy

0.01mg/L

Indication error

≤±5 %

Repeatability

±3%

Optical stability

Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours

Testing standard

GB/T 6909-2018

Analytical method

Spectrophotometry (Colorimetric Tubes)

Curve and Storage

150 factory calibration curves, 20 user-defined curves; Can store 1,000 records.

Display

5-inch LCD screen with a 240*128 pixel matrix

Power consumption

15W

Dimension

273mm*201mm*129mm

Weight

1.15kg

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: AC 220 (165V-240V) (4) No significant vibration and electromagnetic interference, avoid direct sunlight.



Functional Features



    Utilizes cold light and monochromatic light sources, ensuring exceptional optical stability without interference from various light sources.


    Simple operation with high measurement accuracy, meeting the latest discharge standards.

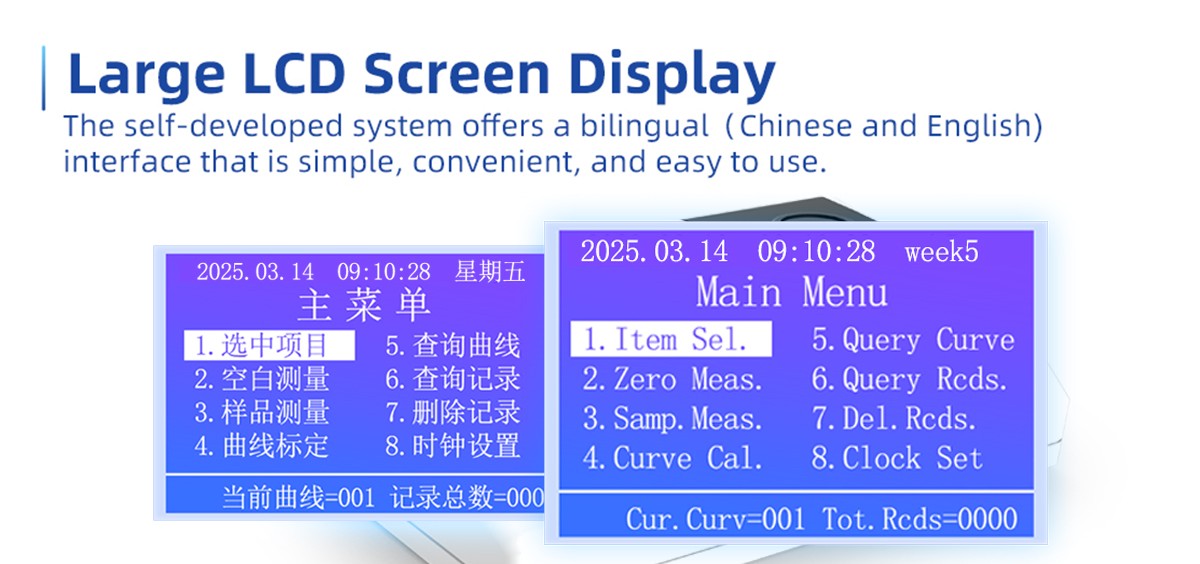

    Large LCD screen; all settings, calibration, and record operations are performed within the integrated environment.


    Strong anti-interference capabilities using V/F conversion, software redundancy, and software traps.


    Can store working curves and historical records; users can calibrate and store their own curves, with data retention even during power outages.


    Can store 150 factory curves and 1000 records, with data retention even when powered off.

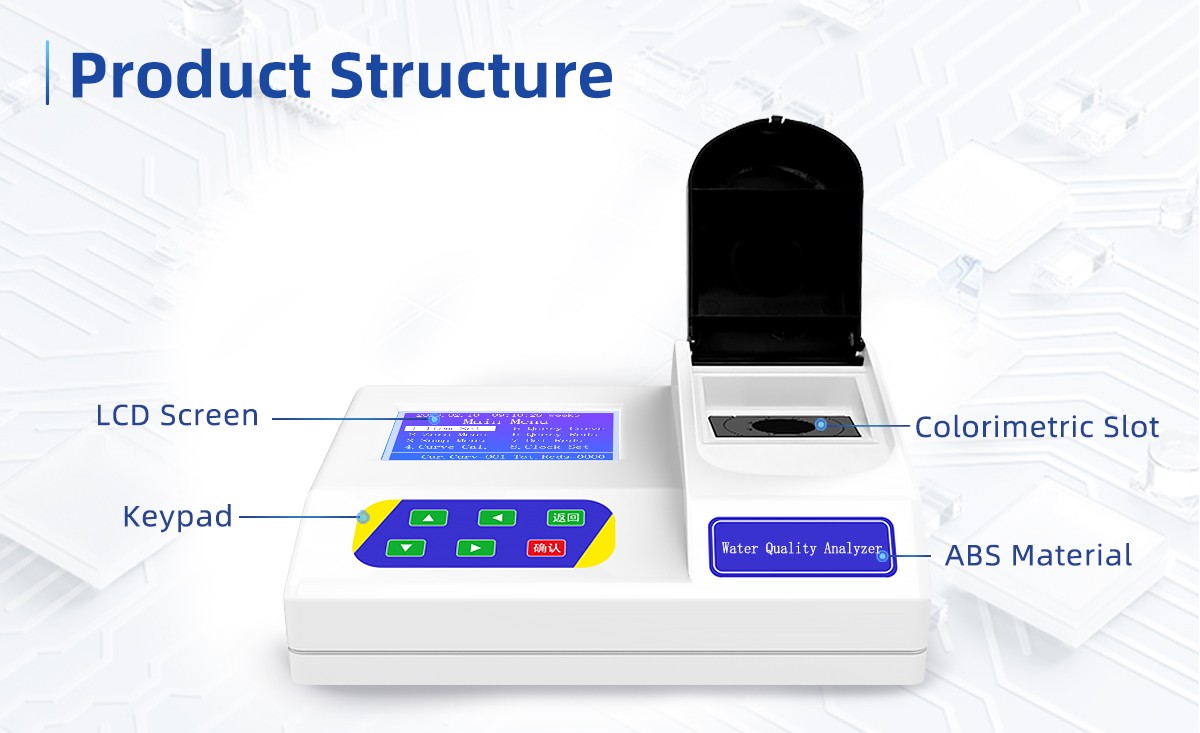

    The main unit casing is made of post-mold ABS material, offering excellent corrosion resistance.



Packing List



Main Unit: 1 piece

Colorimetric cuvette: 2 cuvettes (70*50*25mm)

Power cord: 1 piece

Manual: 1 copy

Certificate of Conformity: 1 copy

Warranty Card: 1 copy
