Portable Bromine Analyzer

PCHBR-307

[Product Overview]

High performance, low power 16-bit microcontroller system with excellent performance

[Application Area]

Applicable to environmental monitoring, food hygiene, tap water, hydrogeology, petrochemical and other fields water measurements.
Product Details
Custom Matching




Technical Parameter



【Host】
Measurement range: 0.10~5.00mg/L (more than the range can be diluted)
Minimum resolution:  0.01 mg/L
Indication error:  ≤5% (F.S)
repeatability: ≤3%
optical stability:  ≤ 0.002A / 20min
Dimensions: main unit 266mm × 200mm × 130mm
power consumption: 30W
weight:  500g



Features




1. It adopts imported high-performance, long-life (100,000 hours), high-brightness light source, and narrow-band filter system. It has strong optical stability and is not easily interfered by various kinds of light. Therefore, the instrument has high precision and good stability.

2. Large screen LCD display, easy to operate.

3. Small and convenient for on-site measurements.

4. Data will not lose even when power is cut off.

5. 10 standard curves and 199 measurements can be saved (including measurements, absorbance value and light transmittance with time label.)

6. More than ten years experience in the production of water quality measuring instruments to ensure the quality of the products.

7. The main engine shell is made of molded ABS material and IP65 design, with good anti-corrosion, waterproof and dustproof performance.

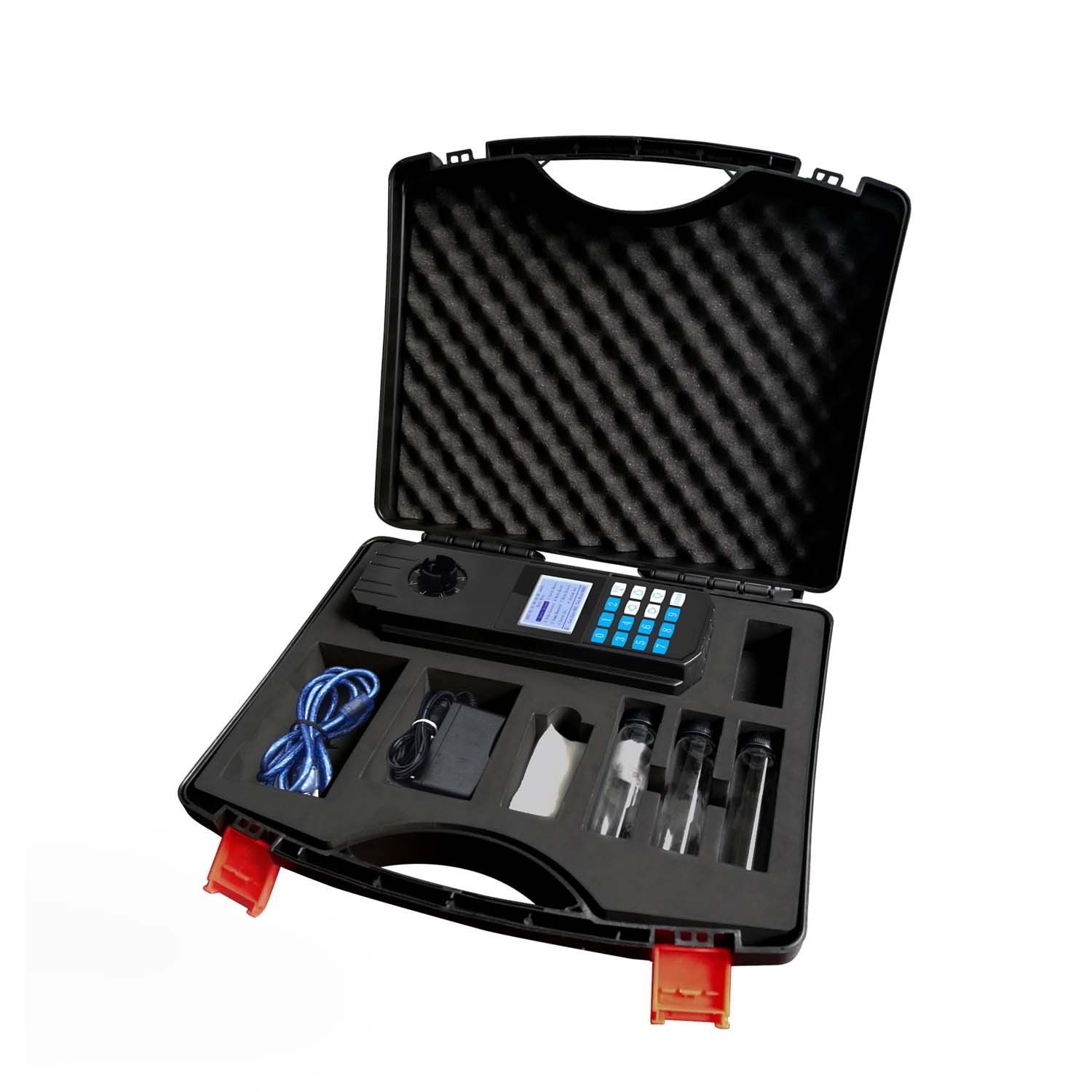

Packing List



Name Quantity Name Quantity

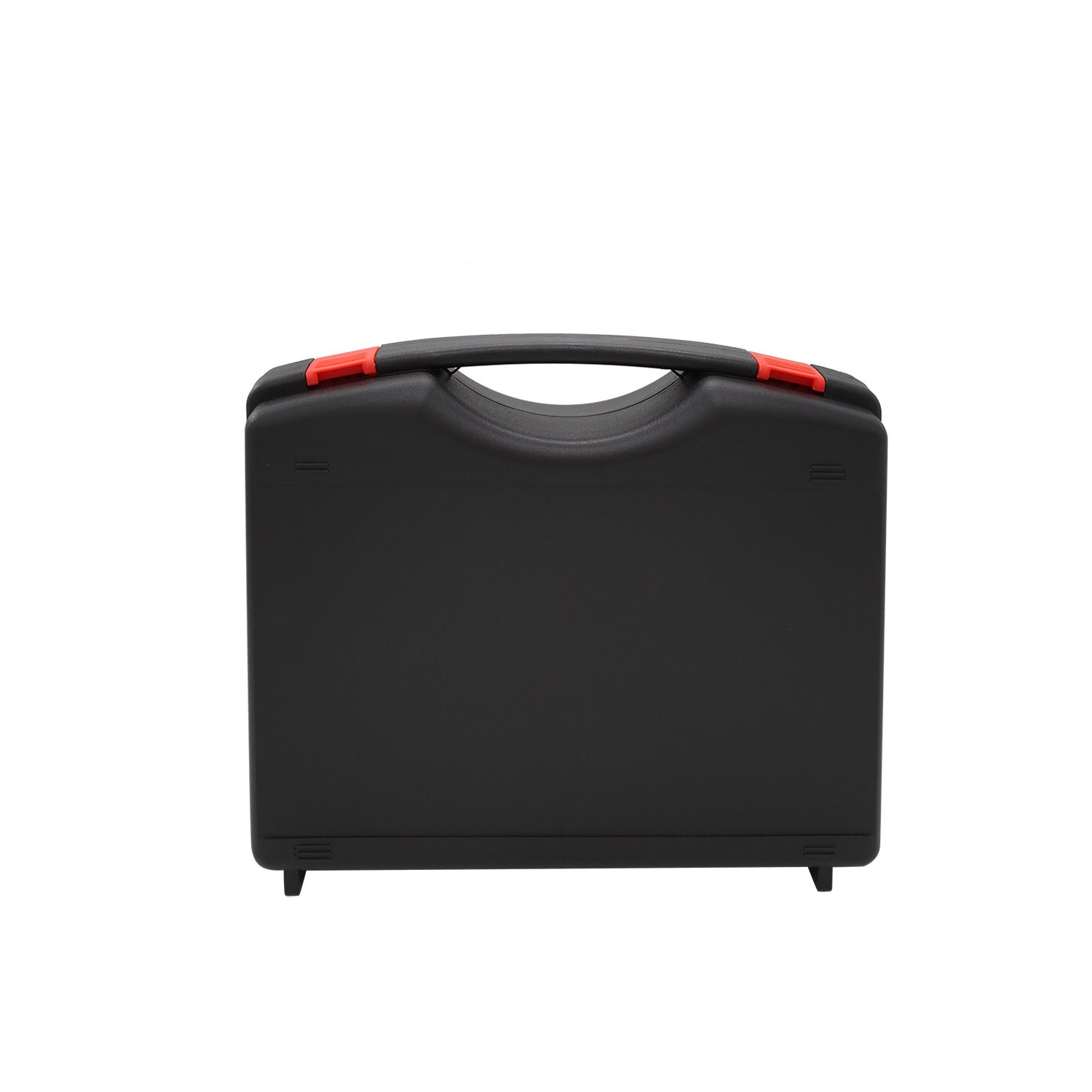

Host 1 1 portable case
3 colorimetric tubes 1 power cord
Reagent 1 set 1 Certificate
1 manual 1 warranty card
