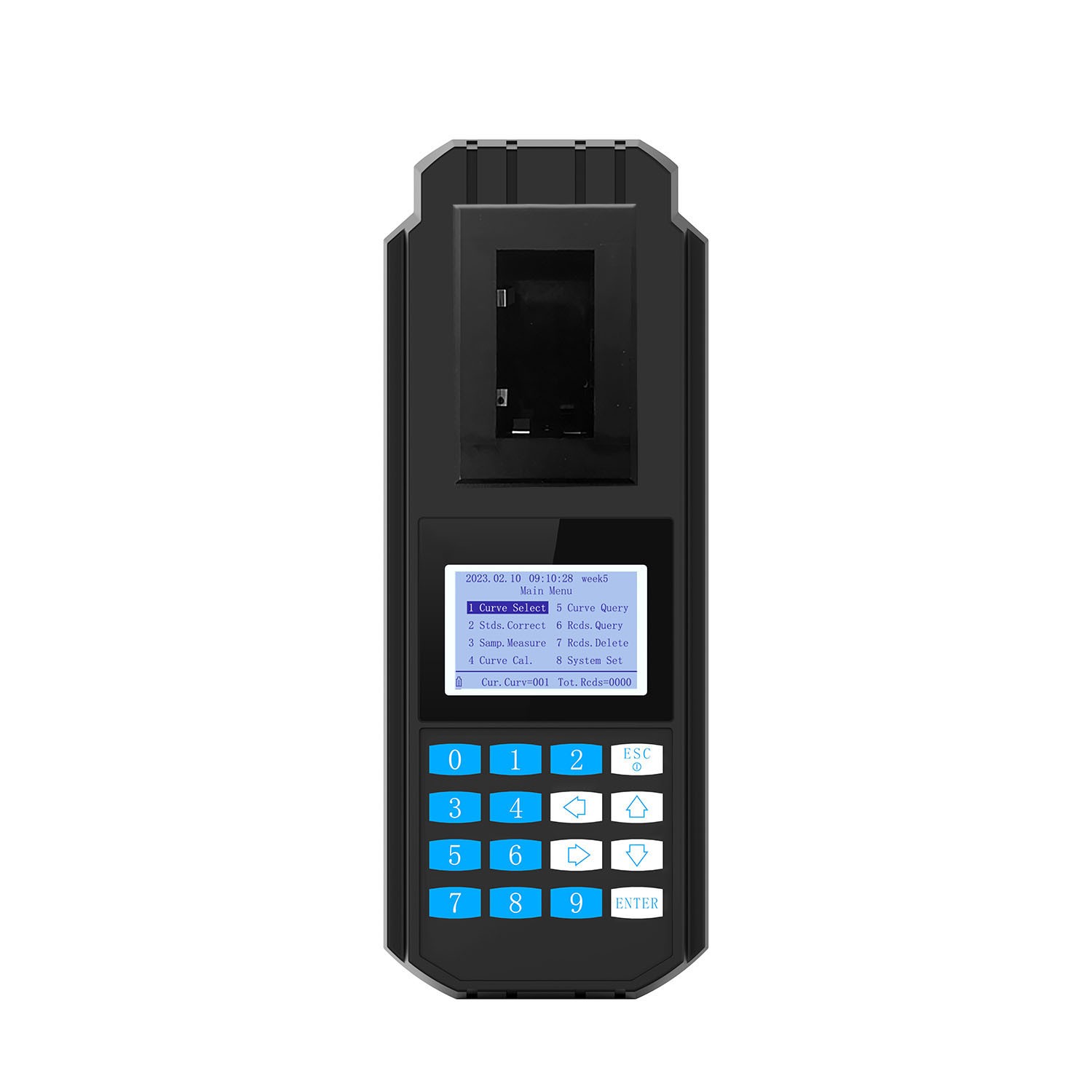

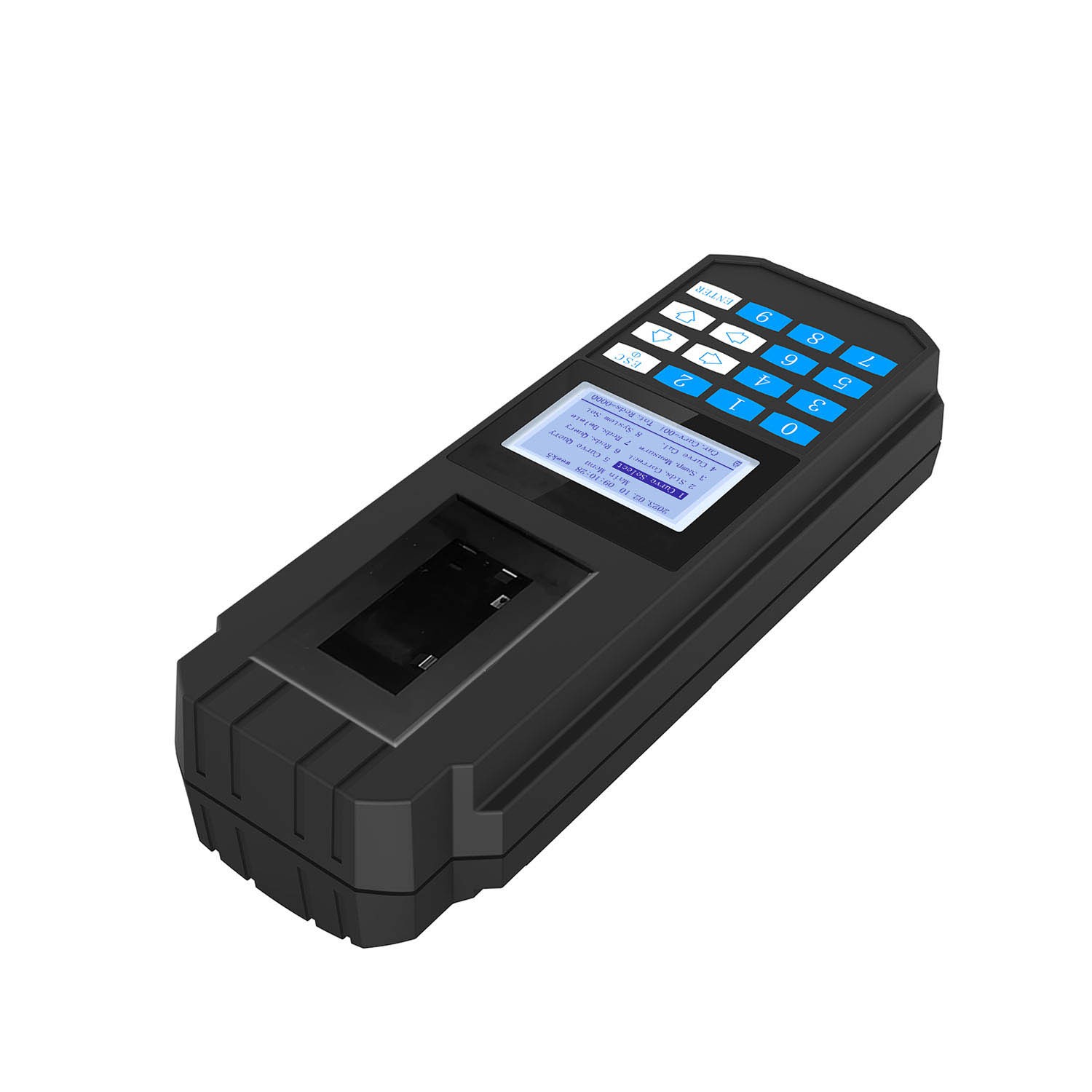

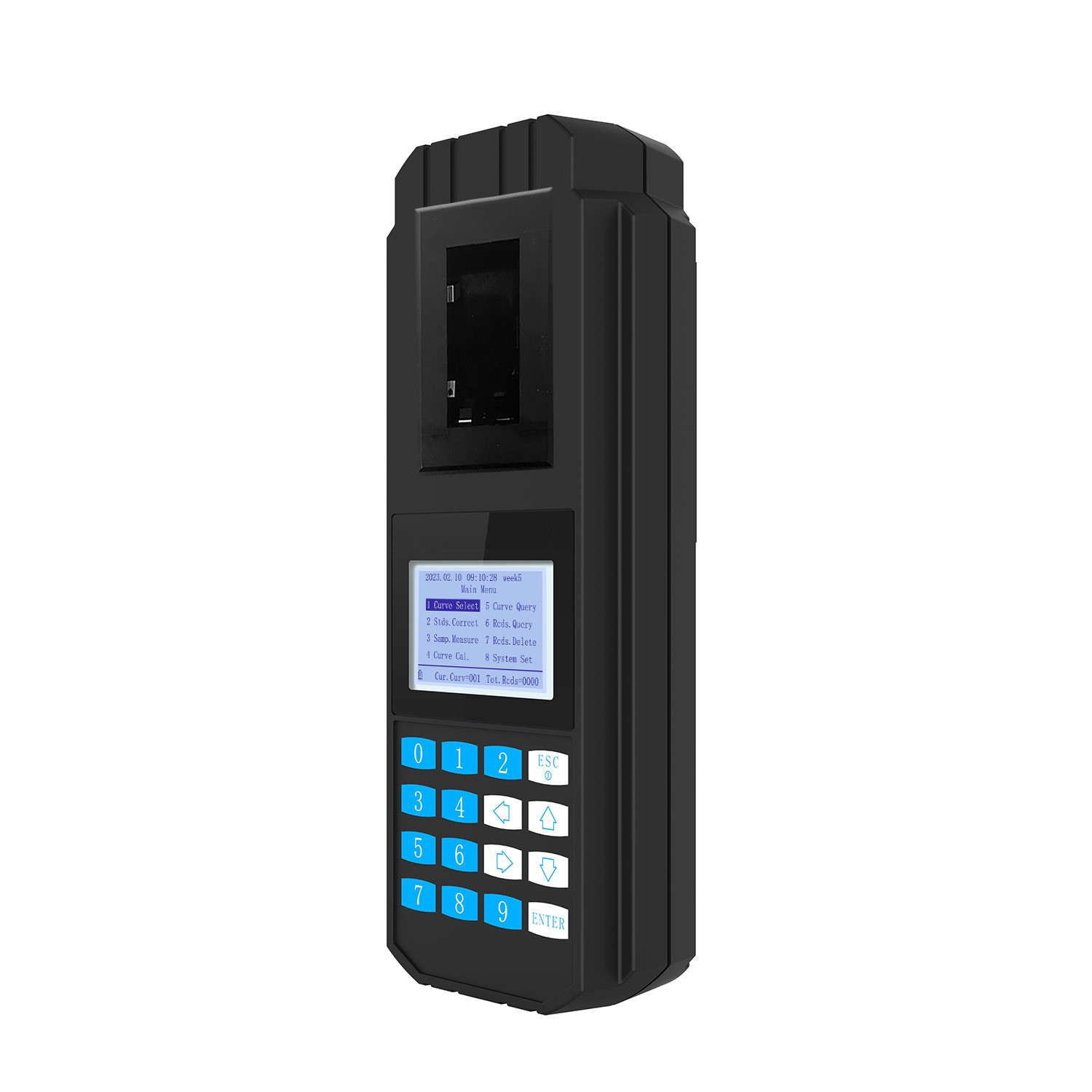

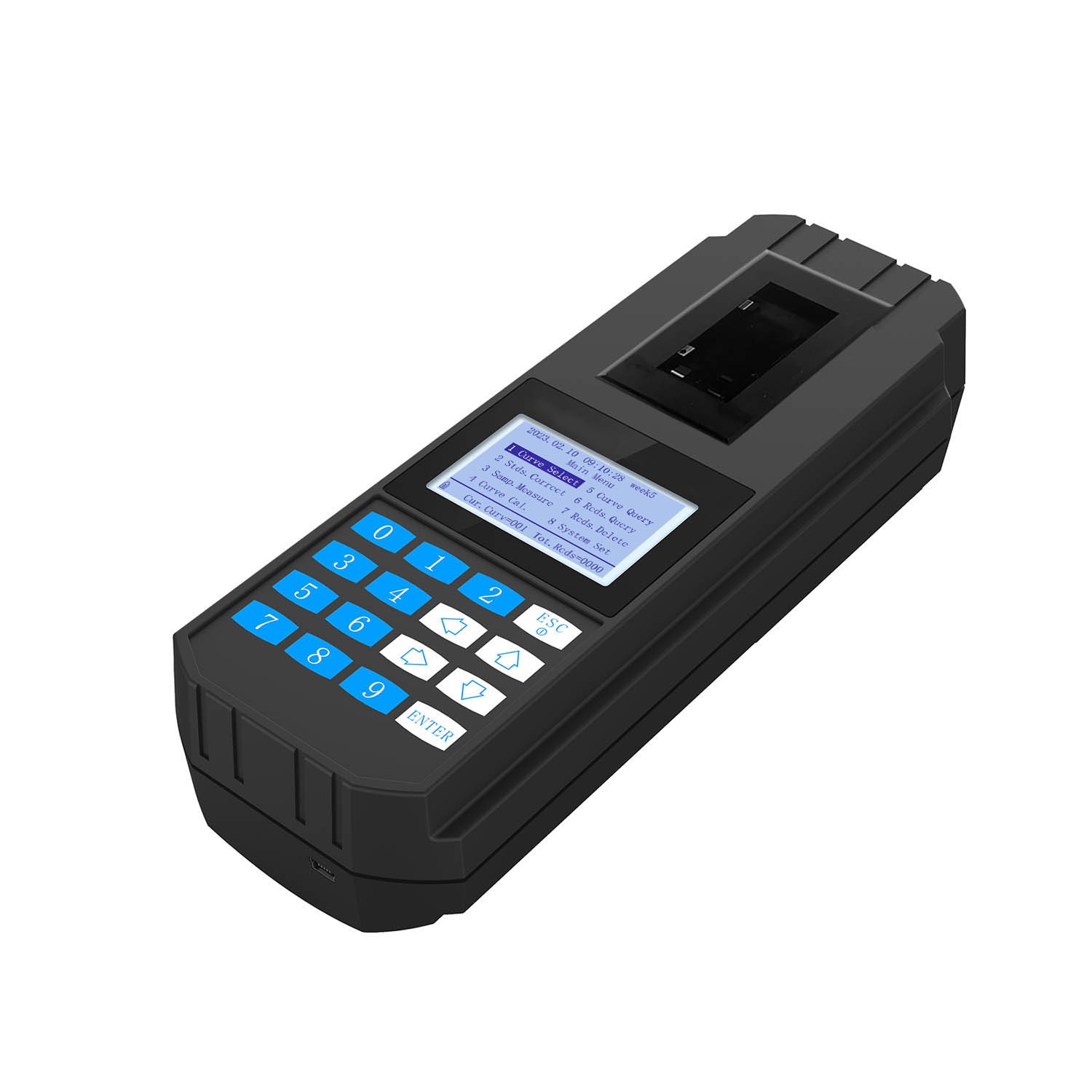

PSS-200- Portable Suspended Solids Meter

PSS-200

[Product Overview]

The suspended solids meter is an instrument for measuring the concentration of suspended solids in water samples. Suspended solids are insoluble solid materials in water, such as silt, algae, microorganisms, and organic particles. Their content is one of the key indicators for assessing the degree of water pollution and water quality. Our instrument is suitable not only for precise laboratory analysis but also for rapid on-site detection, providing timely and accurate data support for water quality assessment, pollution control, and water resource protection.

[Application Area]

Widely used in Colleges and universities, scientific research institutes, sewage treatment plants, environmental monitoring stations and other fields water measurements.
Product Details
Custom Matching


Technical Specifications

Measuring range

0~1000mg/L (Dilute if excess the measuring range)

Measuring accuracy

0.1 mg/L

Indication error

≤±2 %

Repeatability

≤±2%

Optical stability

Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours

Analytical method

Colorimetric method(Cuvettes)

Curve and Storage

250 factory calibration curves, 749 user-defined curves; Can store 9999 records.

Display

2.4-inch 240*160 LCD screen

Power

10W

Dimension

Instrument: 88mm*230mm*52mm; Carrying case: 457mm*370mm*188mm

Weight

Instrument:0.45kg   Case and accessory: 4.8kg

Charging/Data Interface

Mini USB

Working environment

(1) Ambient temperature: 5~40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply: Instrument: Rechargeable lithium battery or AC (220±22)V (50±0.5) Hz (4) No significant vibration and electromagnetic interference, avoid direct sunlight.



Functional Features

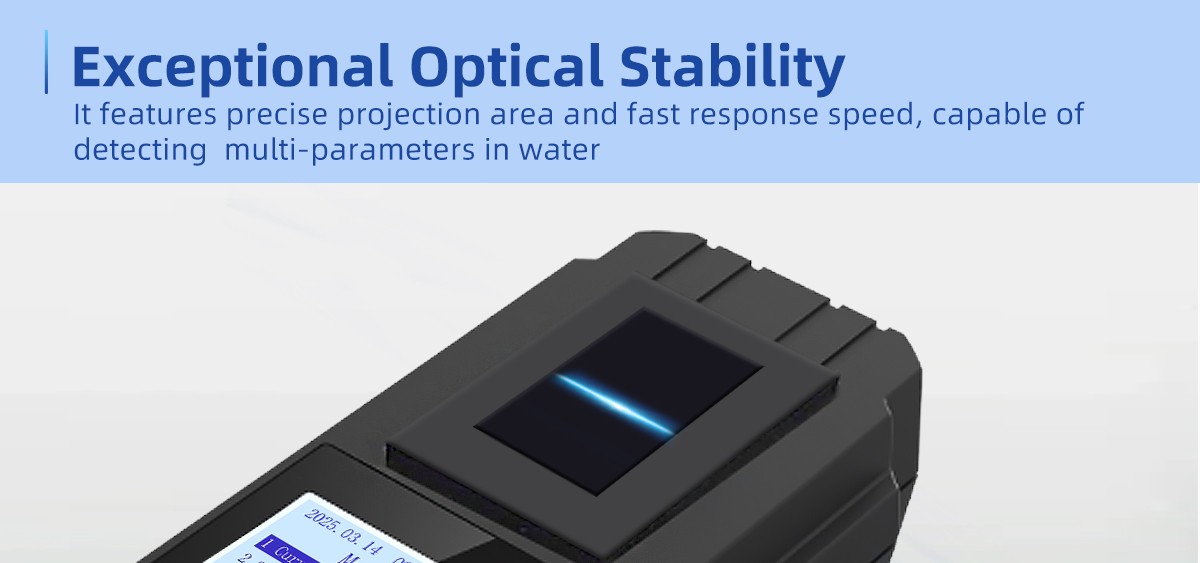

    The instrument uses a cold light source and a narrow-band interference optical system, providing excellent optical stability.


    It employs a high-performance, ultra-low power consumption microcontroller and is equipped with a high-capacity rechargeable lithium battery.

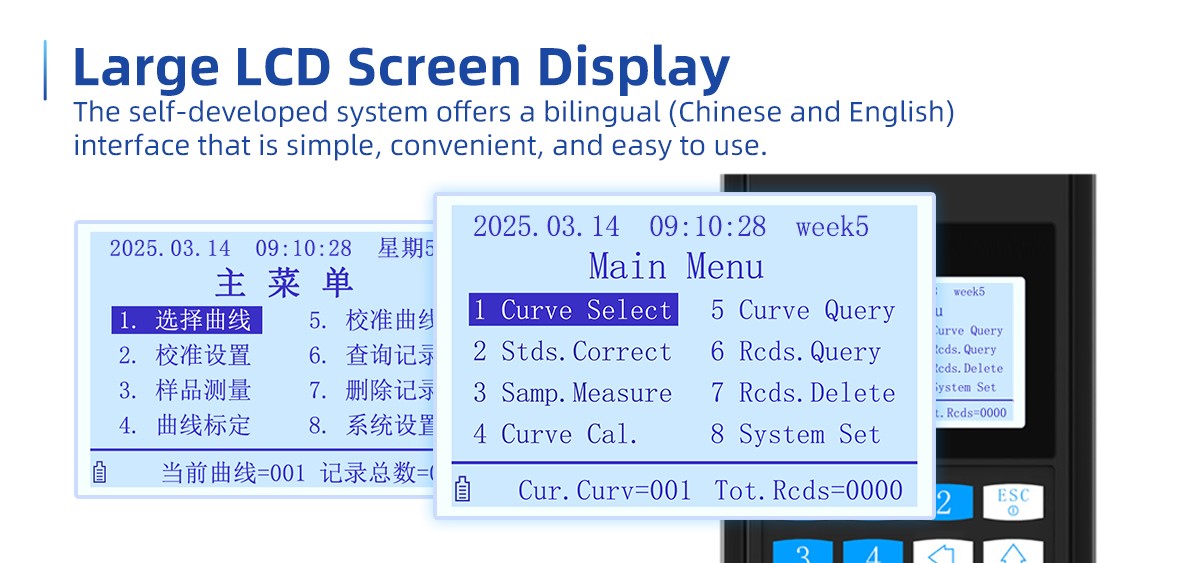

    The LCD large screen displays menus, making operation convenient and intuitive.


    The instrument is compact and portable, suitable for on-site detection.


    In addition to factory pre-set curves, users can add and calibrate their own curves.


    Up to 250 factory curves can be stored, 749 user curves can be stored, and 9999 records can be saved.


    The one-key factory reset function prevents loss or accidental deletion of curves.


    The USB interface allows data transfer to a computer, where it can be saved as files.


    Data power-off protection function.

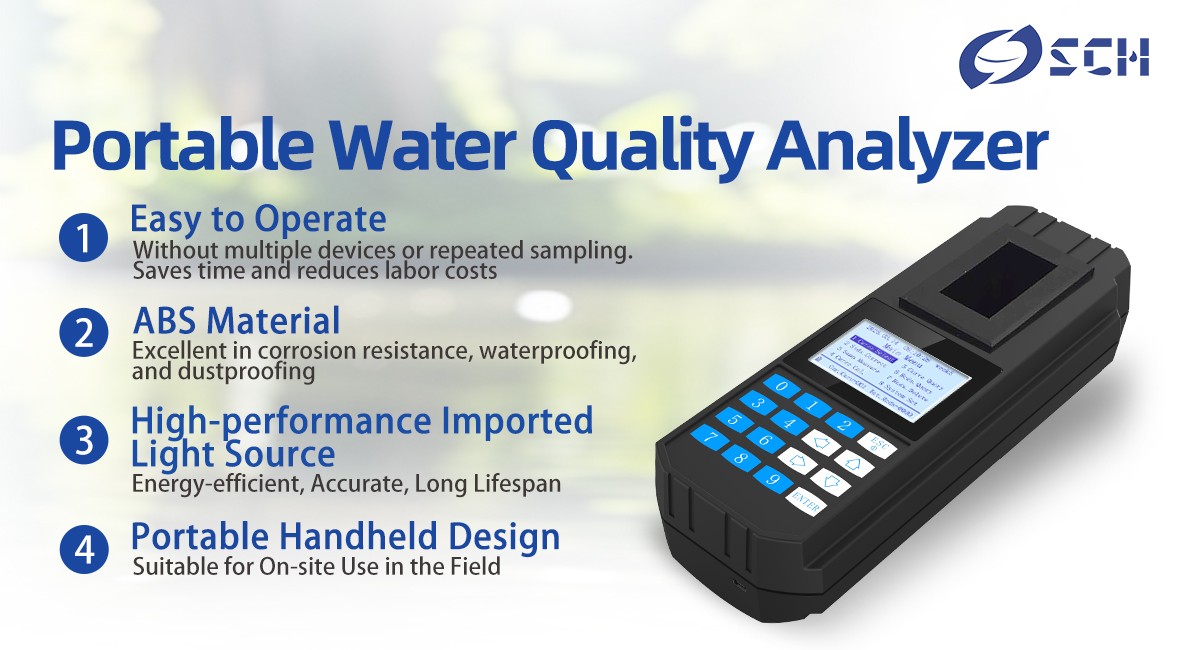

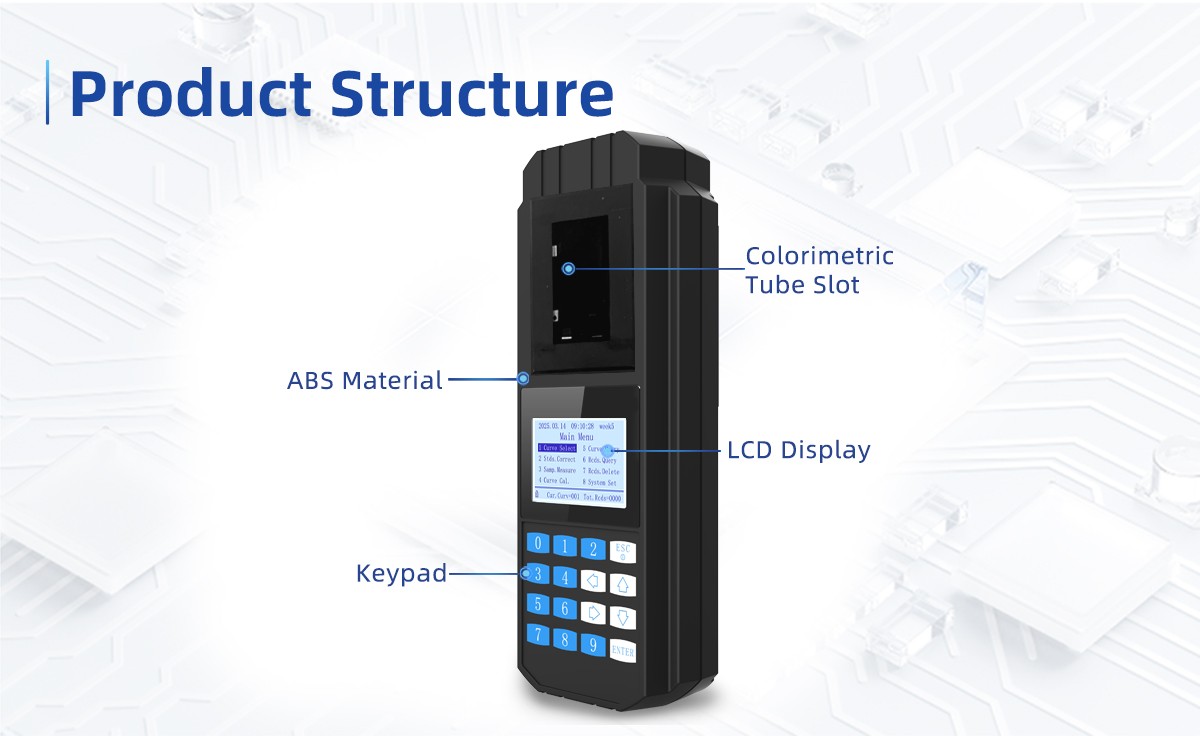

    The main unit shell is made of molded ABS material, providing excellent corrosion, water, and dust resistance.

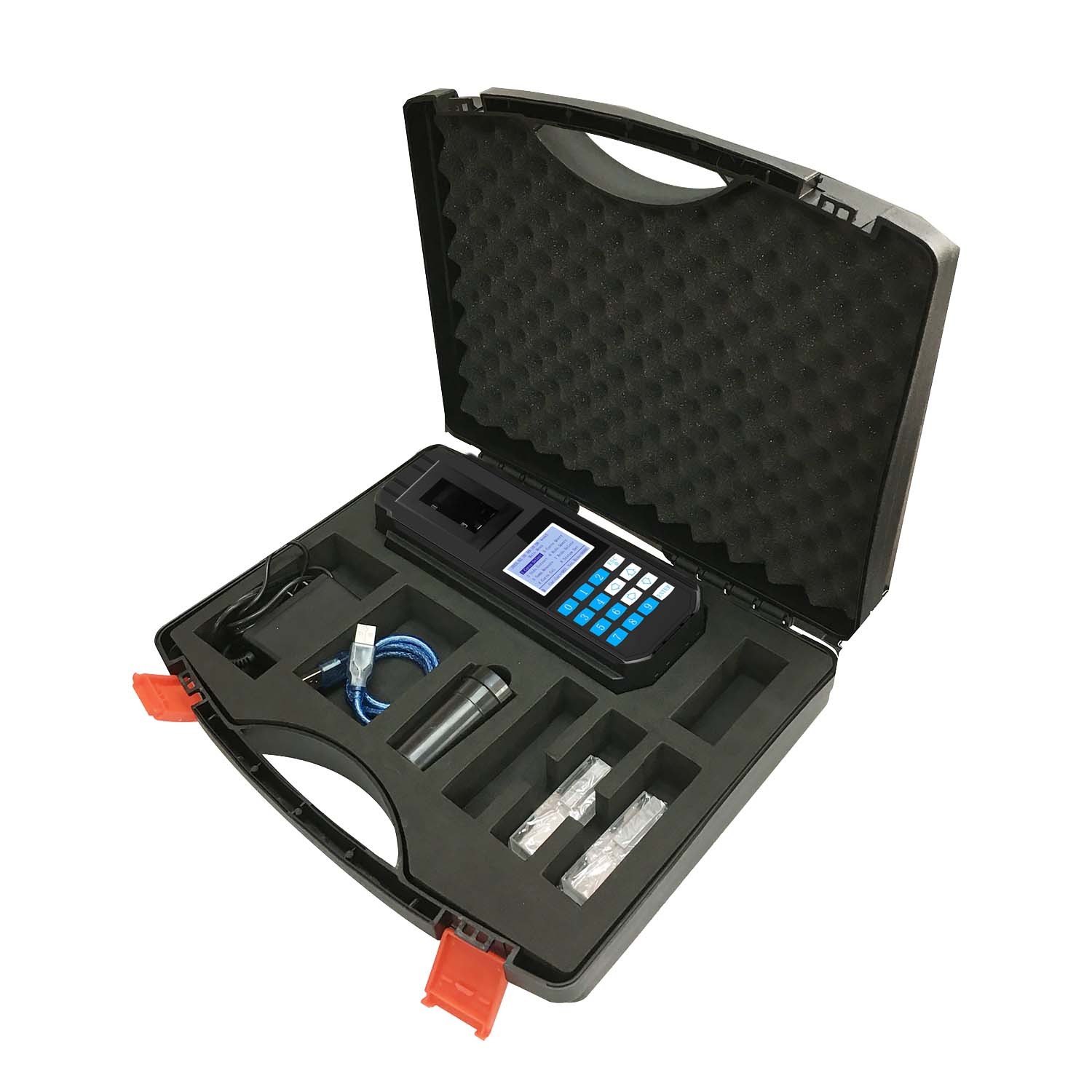

Packing List



Main Unit: 1 piece

Colorimetric cuvette: 2 cuvettes (70*50*25mm)

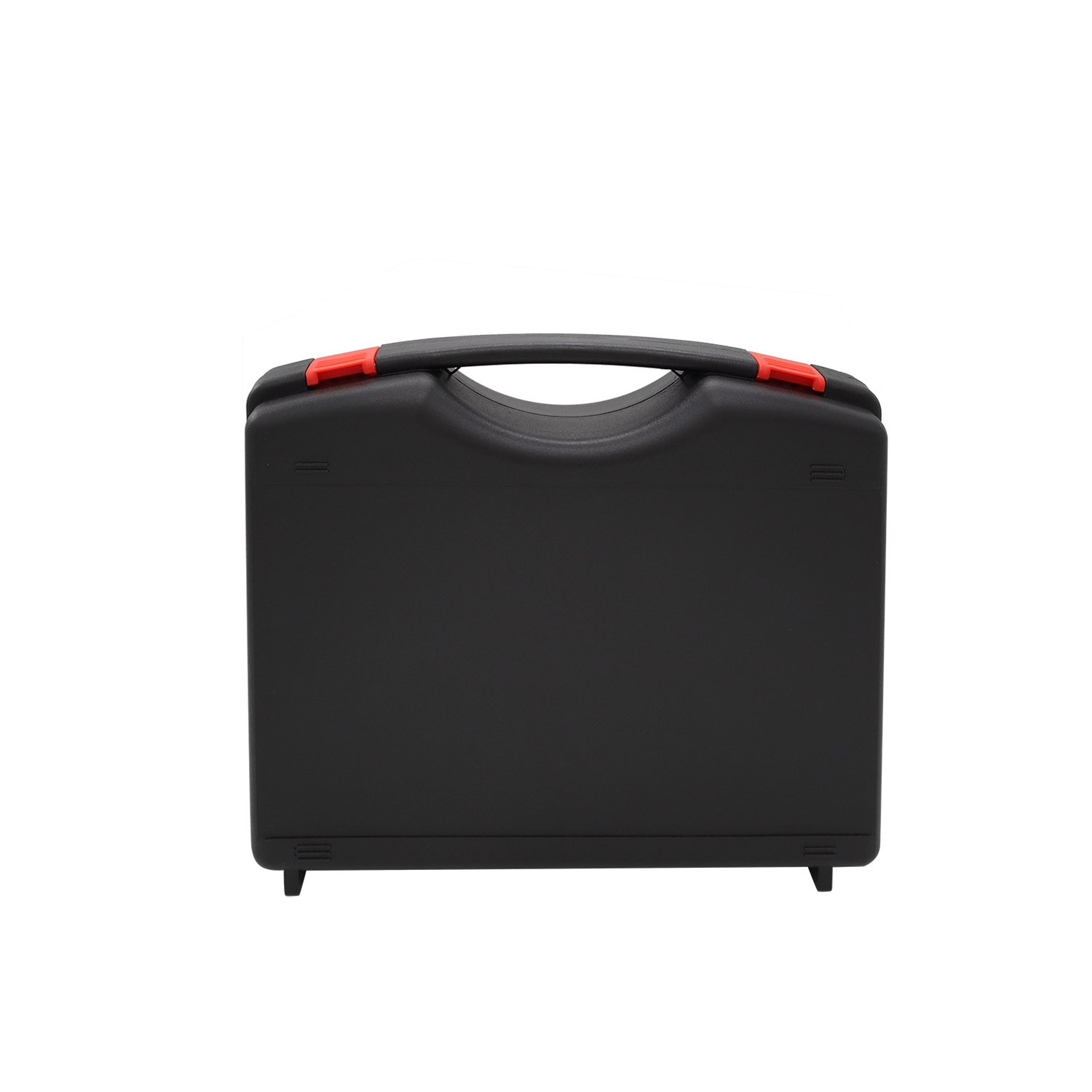

Carrying case: 1 piece

5V2A charger: 1 piece

Manual: 1 copy

Certificate of Conformity: 1 copy

Warranty Card: 1 copy
