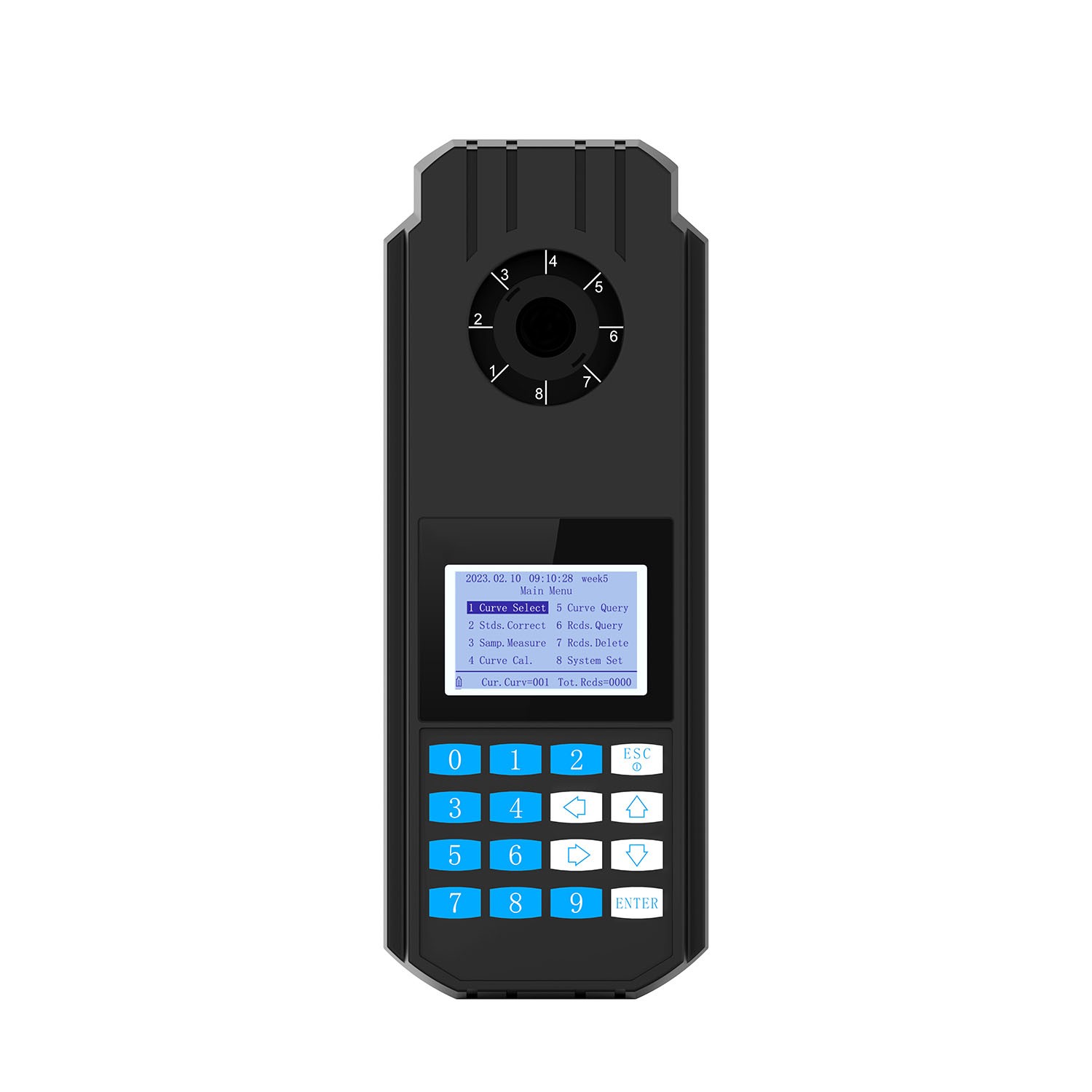

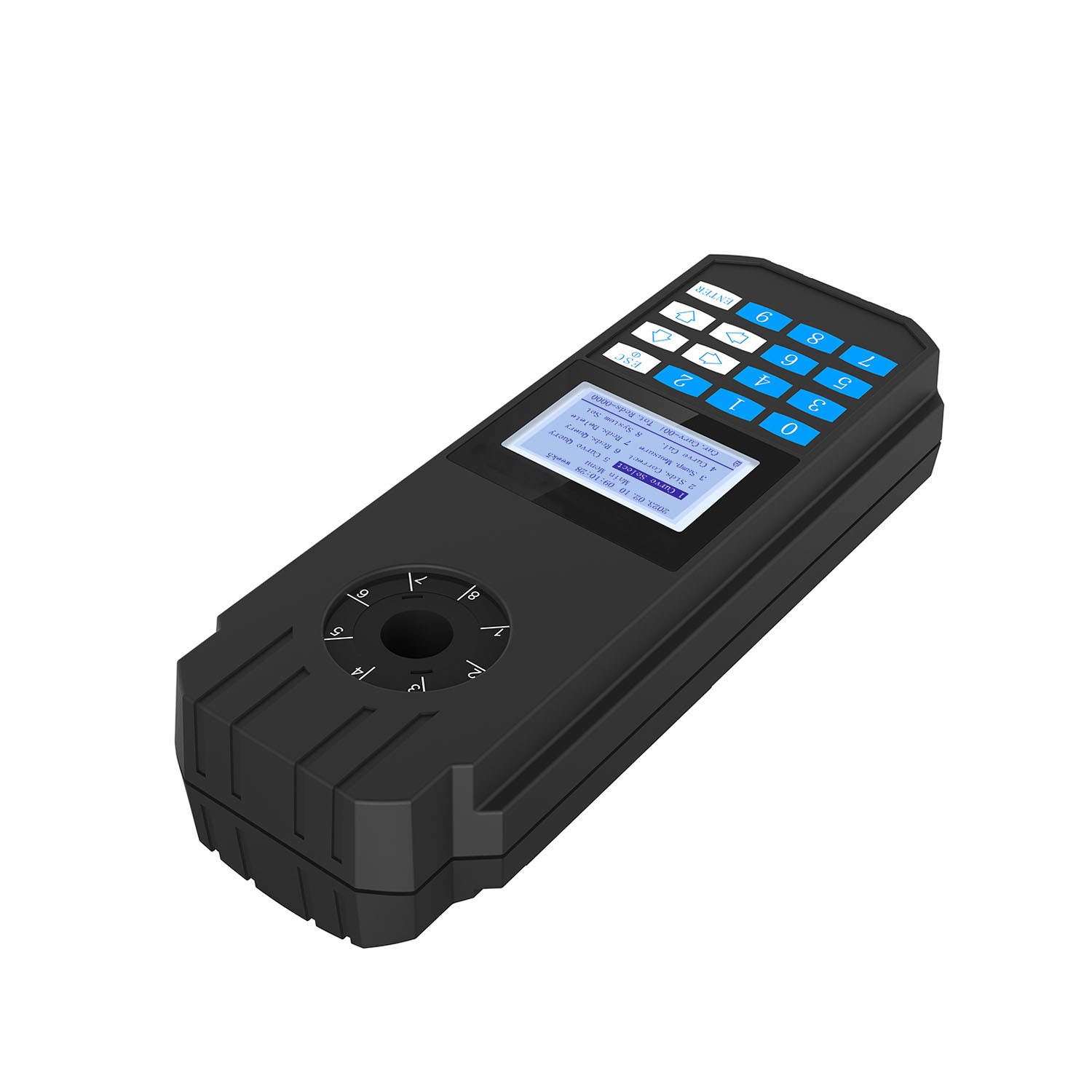

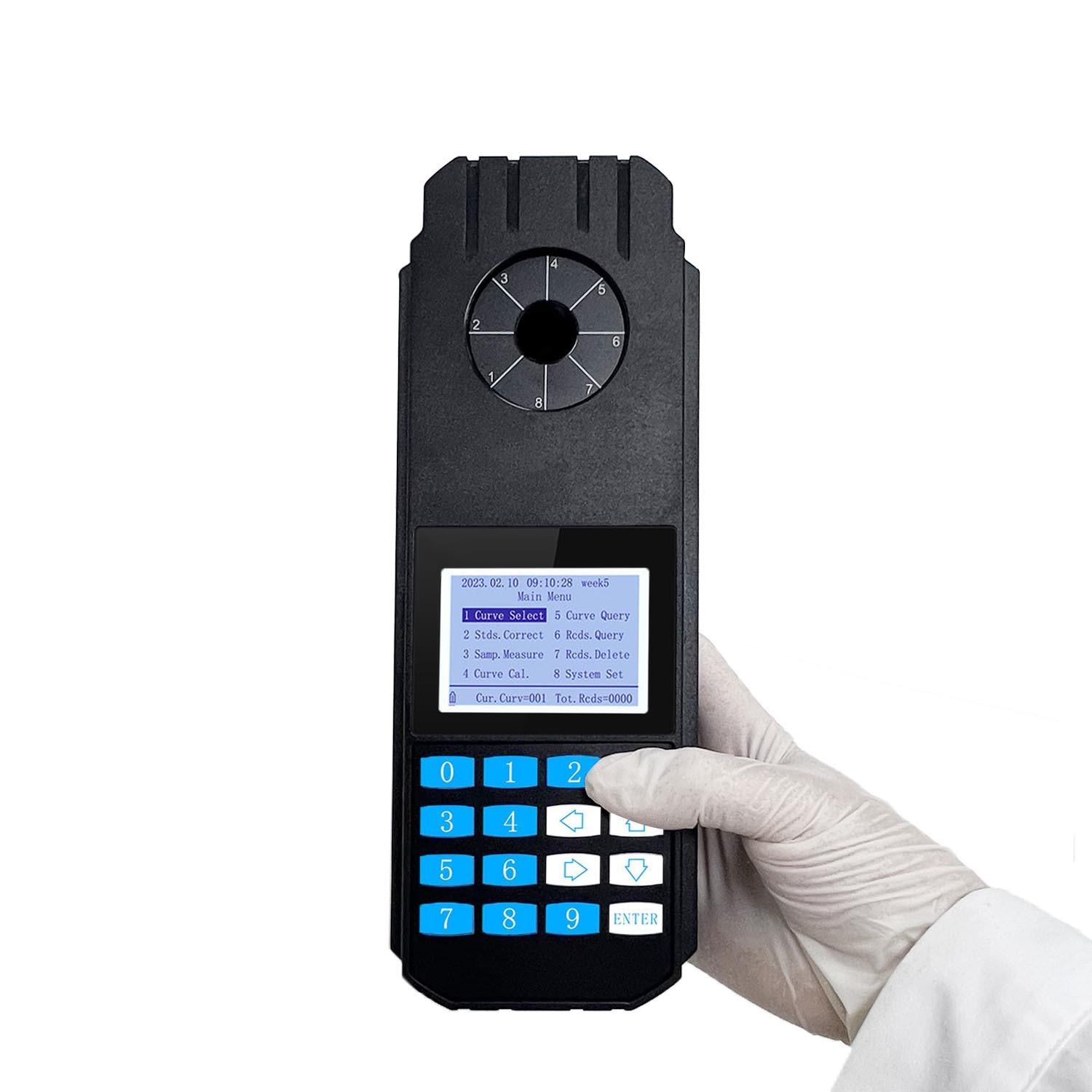

Portable TP analyzer

PWN-810A

[Product Overview]

Portable structure design, distribution carrying case, instrument standby time of up to 6 months, saving time and operation.

[Application Area]

Used in environmental monitoring, sewage treatment and colleges and universities, research institutes, hospitals, etc.
Product Details
Custom Matching

Technical indicators


【Host】
measuring range: 0.02 ~ 10mg / L
the indication error: ≤ ± 5% (F.S) or the largest of 0.2mg / L
repeatability: ≤3%
digestion temperature:  120 ° C ± 1.0 ° C
digestion time: 30 minutes
optical stability:  ≤ 0.002A / 20min
 batch volume:  4 water samples
external dimensions: host 80mm × 230mm × 55mm;Digestion instrument 105mm × 160mm × 90mm


Instrument features


1. The digestion device is separated from the analyzer without affecting the measurement accuracy. Temperature PID automatically controls temperature and timing.

2. High-performance ultra-low power 16-bit single-chip microcomputer, the instrument standby time can reach more than 6 months.

3. Time-saving operation.

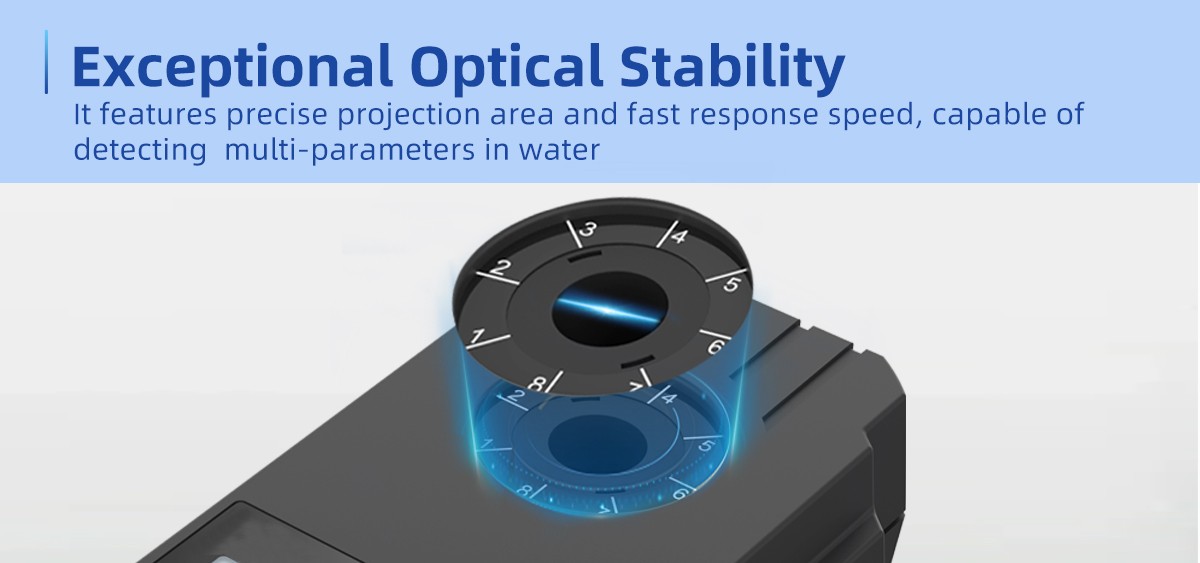

4. Cold light source, narrow-band interference optical system, good optical stability.

5. Data power-off protection function.

6. It can save 30 standard curves and 199 measured values (including the measured values of the year, month, day, hour, minute and second with time stamp, absorbance and transmittance)

7. With USB port, you can connect to the computer for record reading or print the stored data.

8. The mainframe casing is molded with ABS material and IP65 design, which is waterproof and dustproof.

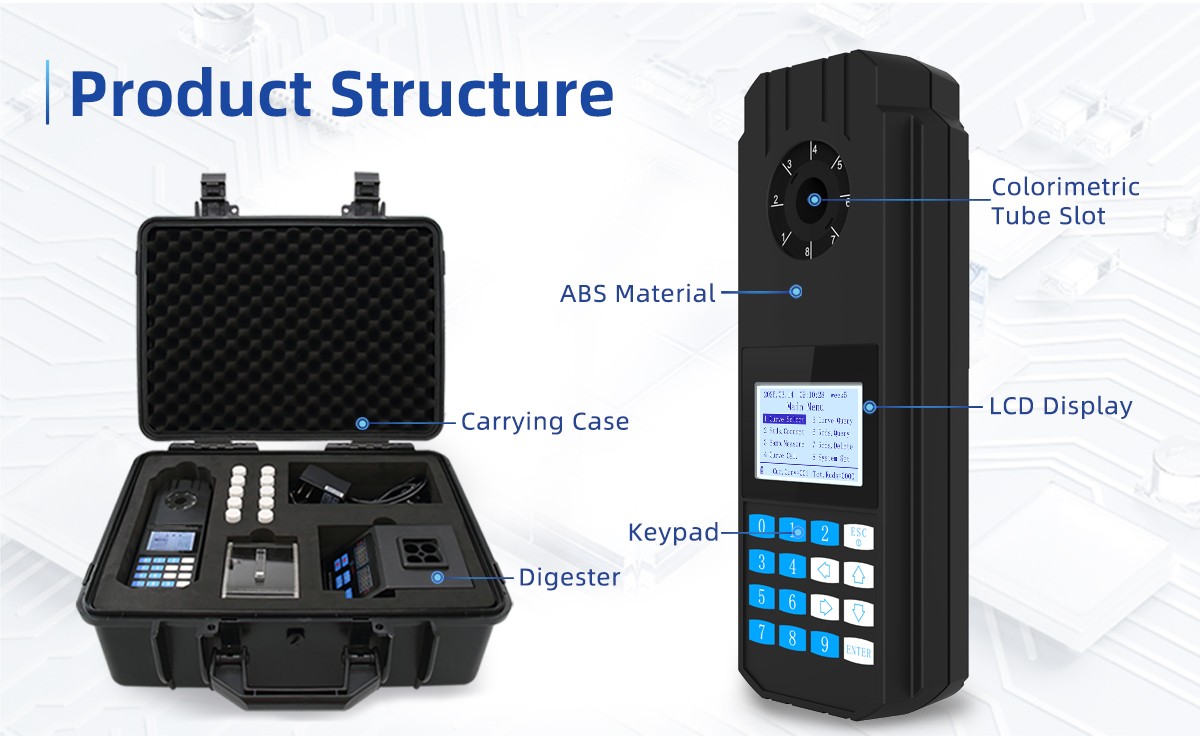

configuration list


Name quantity Name quantity
Host 1 4-hole digester 1 set
10 digestion colorimetric tubes 1 set of total phosphorus reagent (100 samples can be measured)
1 tube rack 1 protective cover

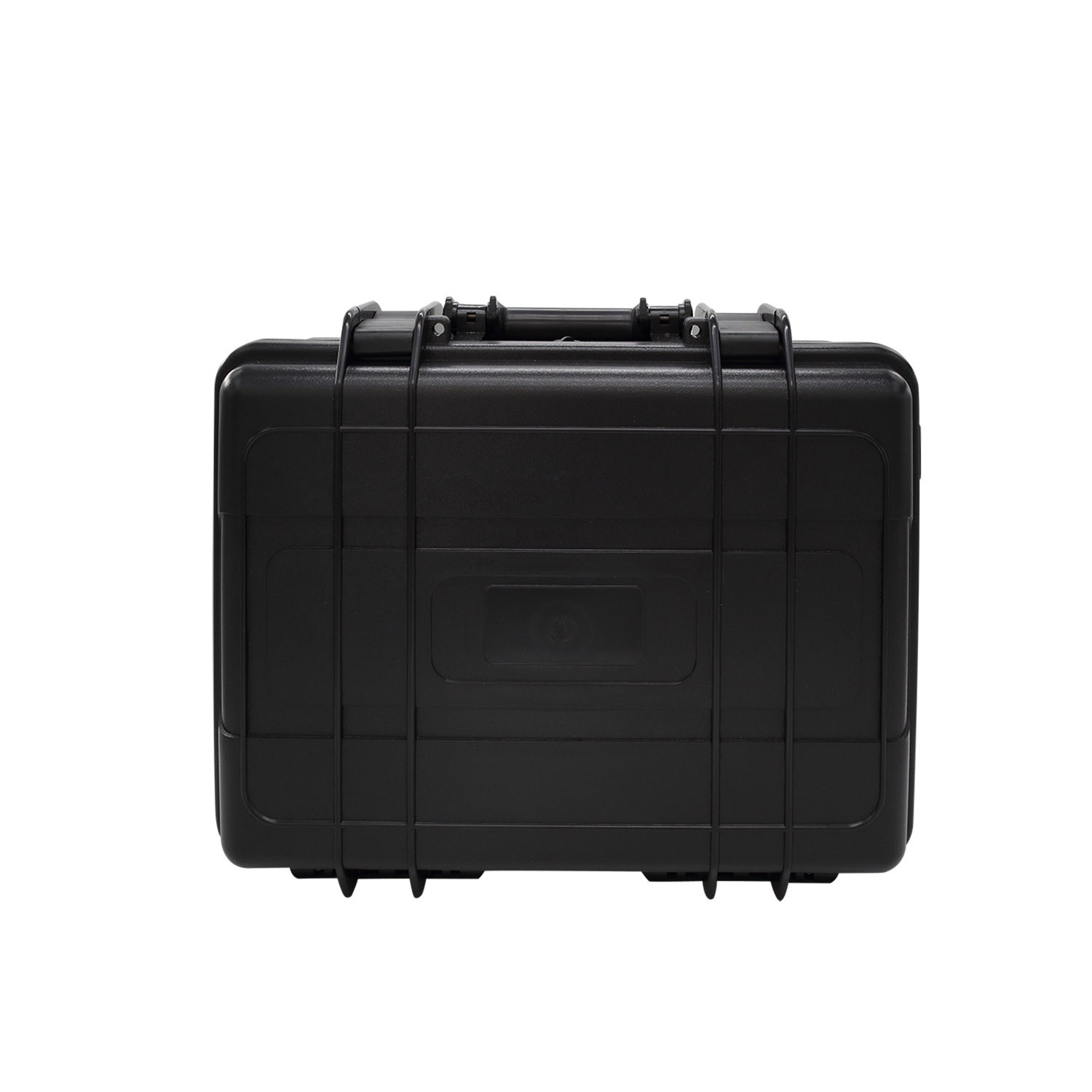

1 portable case 1 power cord
1 manual 1 warranty card
1 Certificate
